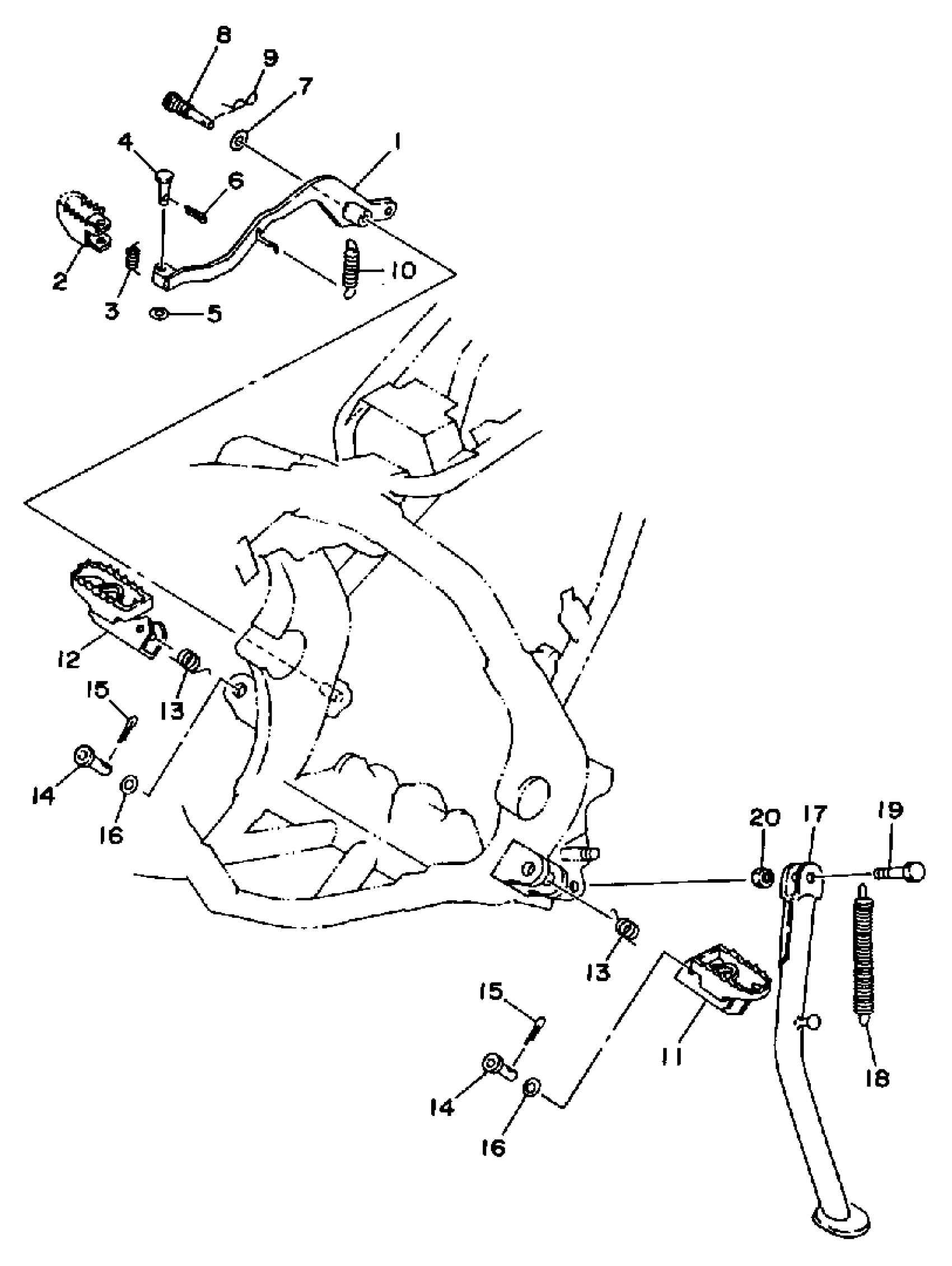

Yamaha WR200RD (WR200R) 1992 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

3XP-27211-00-00

Unavailable

2

PEDAL, BRAKE

3XP-27242-00-00

Unavailable

3

SPRING, TORSION (1W2)

90508-14352-00

$9.49

4

PIN, COTTER (1W2)

91701-06022-00

$2.49

5

WASHER, PLAIN (646)

92990-06600-00

$2.80

6

PIN, COTTER

91490-20025-00

$1.99

7

WASHER, PLATE(3XP)

90201-086P8-00

$4.77

8

BOLT (3XF1)

90110-08220-00

$7.49

9

CLIP (156-83525-00)

90468-10050-00

$3.05

10

SPRING, TENSION

90506-14453-00

Unavailable

11

FOOTREST 1

3LD-27411-10-00

Unavailable

12

FOOTREST 2

3LD-27421-10-00

$48.99

13

SPRING, TORSION(3JD)

90508-28777-00

$7.49

14

PIN, CLEVIS(2HJ)

90240-10117-00

$14.99

15

PIN, COTTER

91490-25020-00

$3.19

16

WASHER, PLAIN(735)

90201-10119-00

Unavailable

17

STAND, SIDE

99999-02978-00

Unavailable

18

SPRING, TENSION(4BF)

90506-35474-00

Unavailable

19

BOLT(2GH)

90109-104E6-00

Unavailable

20

NUT, U

90185-10037-00

Unavailable
