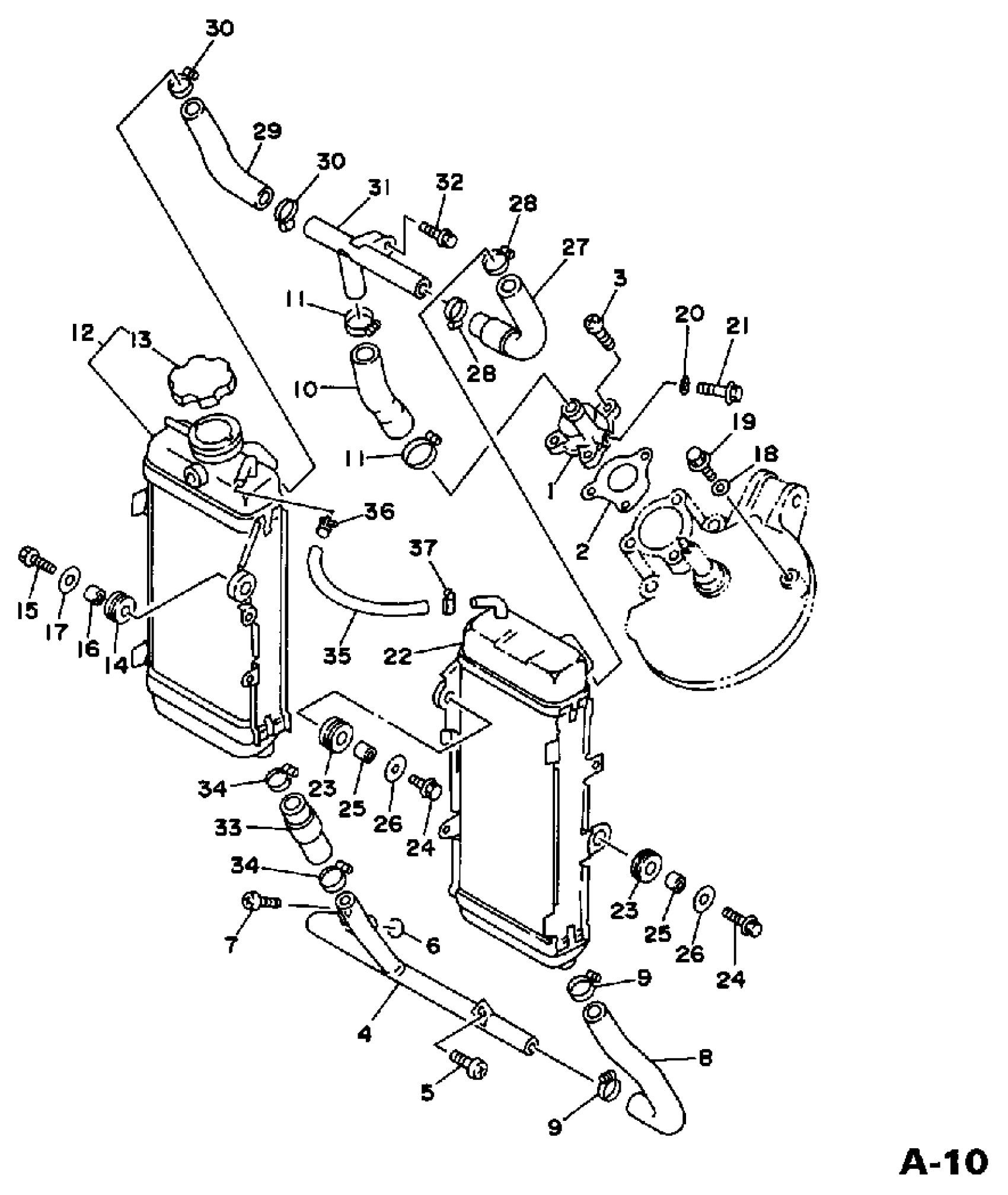

Yamaha WR200RD (WR200R) 1992 RADIATOR HOSE Diagram

#

Description
Price

1

JOINT 1

3BN-12469-00-00

$9.99

2

GASKET, COVER

3BN-12414-10-00

$7.99

3

SCREW, PAN

98517-06020-00

$8.49

4

PIPE 1

3XP-12481-00-00

Unavailable

5

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

6

O-RING(3LD)

93210-12790-00

$7.49

7

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

8

PIPE 2

3XP-12482-00-00

Unavailable

9

HOSE CLAMP ASSY(64X)

90450-22M14-00

$16.99

10

PIPE 3

3XP-12483-00-00

Unavailable

11

HOSE CLAMP ASSY

90450-28001-00

$14.99

12

RADIATOR ASSY 2

3XP-12461-00-00

Unavailable

13

CAP, RADIATOR

1B3-12462-00-00

$67.99

14

GROMMET (4L0)

90480-18276-00

$8.49

15

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

16

COLLAR (90387-066J9)

90387-064W1-00

Unavailable

17

WASHER, PLATE (583 FUEL TANK)

90201-06570-00

Unavailable

18

GASKET (4V2)

90430-06166-00

Unavailable

19

BOLT, FLANGE

95817-06010-00

Unavailable

20

GASKET (4V2)

90430-06166-00

Unavailable

21

BOLT, FLANGE

95817-06010-00

Unavailable

22

RADIATOR ASSEMBLY 2

4BF-1240A-00-00

Unavailable

23

GROMMET(663)

90480-15064-00

Unavailable

24

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

25

COLLAR(2UJ)

90387-061V1-00

Unavailable

26

WASHER, PLATE (583 FUEL TANK)

90201-06570-00

Unavailable

27

PIPE 4

3XP-12484-00-00

Unavailable

28

HOSE CLAMP ASSY(64X)

90450-22M14-00

$16.99

29

PIPE 5

3XP-12485-00-00

Unavailable

30

HOSE CLAMP ASSY(64X)

90450-22M14-00

$16.99

31

JOINT 1

3XP-12469-00-00

Unavailable

32

BOLT, FLANGE

95812-06010-00

Unavailable

33

PIPE 6

3XP-12476-00-00

Unavailable

34

HOSE CLAMP ASSY(64X)

90450-22M14-00

$16.99

35

PIPE 8

4JW-1248A-00-00

Unavailable

36

HOSE CLAMP ASSEMBLY

90450-15041-00

Unavailable

37

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable
