Description

Price

1

HOLDER, LEVER 1

1LN-82911-00-00

$40.99

2

HOLDER, LEVER LOWER 1

33G-82913-01-00

$19.99

3

PLUG (341-26329-00)

90338-09012-00

$9.49

4

LEVER 1

23X-83912-02-00

$27.99

5

BOLT (2YK1)

90109-06799-00

$4.99

6

NUT, SELF-LOCKING

95617-06100-00

$8.49

7

SCREW, PAN HEAD

98517-05020-00

$4.25

8

WASHER(3SX)

92907-05100-00

$8.49

9

LEVER 2

3JD-83922-00-00

Unavailable

10

BOLT(48Y)

90109-062A8-00

$7.49

11

NUT, SELF-LOCKING

95617-06100-00

$8.49

12

SCREW (2L0)

90149-06131-00

$8.49

13

NUT HEXAGON 306839270000

90170-06010-00

$8.49

14

SPRING COMPRESSION306839240000

90501-10312-00

$8.49

15

SWITCH, HANDLE 1

23X-83976-01-00

Unavailable

16

BAND, SWITCH CORD

437-83936-01-00

Unavailable

17

SWITCH, HANDLE 1

4BF-83976-00-00

Unavailable

18

SCREW, PAN HEAD

98517-04012-00

Unavailable

19

BAND, SWITCH CORD

437-83936-01-00

Unavailable

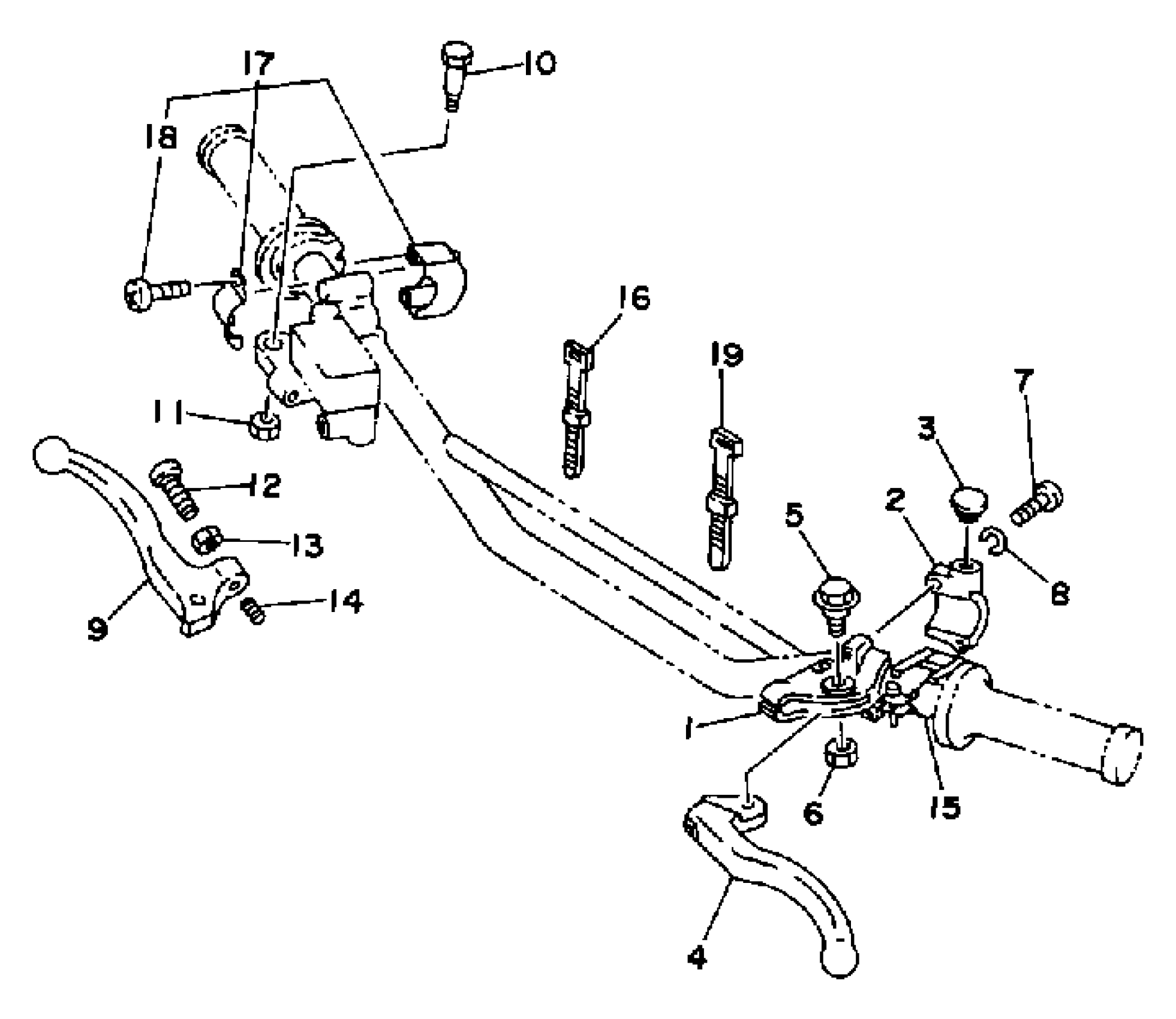

Yamaha WR200RD (WR200R) 1992 HANDLE SWITCH LEVER Diagram

HOLDER, LEVER 1

HOLDER, LEVER LOWER 1

PLUG (341-26329-00)

LEVER 1

BOLT (2YK1)

NUT, SELF-LOCKING

SCREW, PAN HEAD

WASHER(3SX)

LEVER 2

BOLT(48Y)

NUT, SELF-LOCKING

SCREW (2L0)

NUT HEXAGON 306839270000

SPRING COMPRESSION306839240000

SWITCH, HANDLE 1

BAND, SWITCH CORD

SWITCH, HANDLE 1

SCREW, PAN HEAD

BAND, SWITCH CORD
