Description

Price

1

ROTOR ASSEMBLY

4BF-85550-00-00

Unavailable

2

BASE ASSY

4BF-85560-01-00

Unavailable

3

COIL, CHARGE

37A-85520-M2-00

$85.99

4

. COIL, LIGHTING 1

4BF-81313-00-00

Unavailable

5

. COIL, LIGHTING 2

4BF-81314-00-00

Unavailable

6

. GROMMET

4BF-85595-00-00

Unavailable

7

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

8

SCREW, PAN HEAD

98517-04025-00

Unavailable

9

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

10

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

11

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

12

NUT(3EF)

90179-12657-00

$5.60

13

WASHER, PLATE(1HR)

90201-123L6-00

$13.99

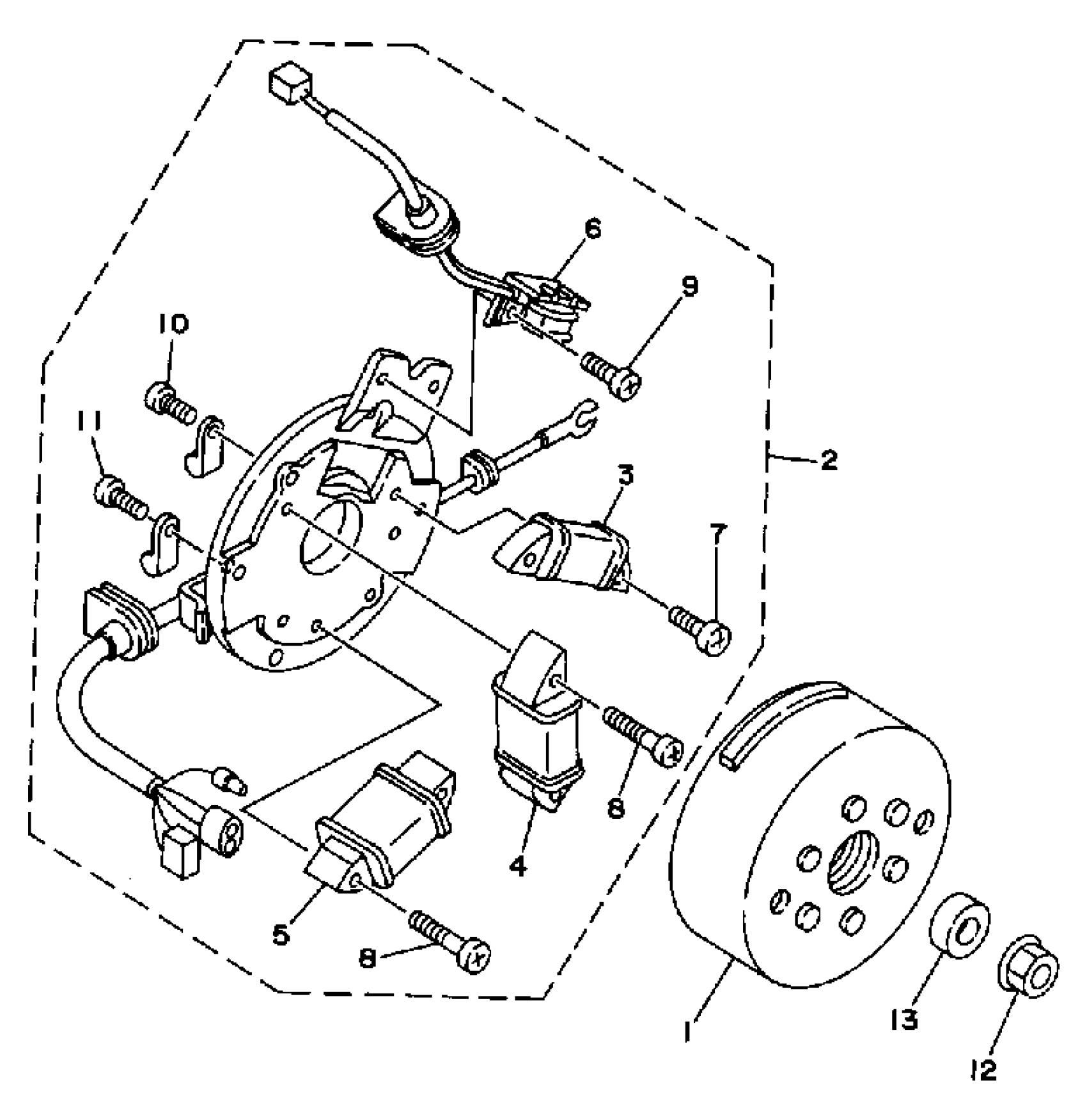

Yamaha WR200RD (WR200R) 1992 GENERATOR Diagram

ROTOR ASSEMBLY

BASE ASSY

COIL, CHARGE

. COIL, LIGHTING 1

. COIL, LIGHTING 2

. GROMMET

SCREW, PAN HEAD(GA5)

SCREW, PAN HEAD

SCREW, PAN HEAD (713)

SCREW, PAN HEAD(3XP)

SCREW, PAN HEAD(3XP)

NUT(3EF)

WASHER, PLATE(1HR)
