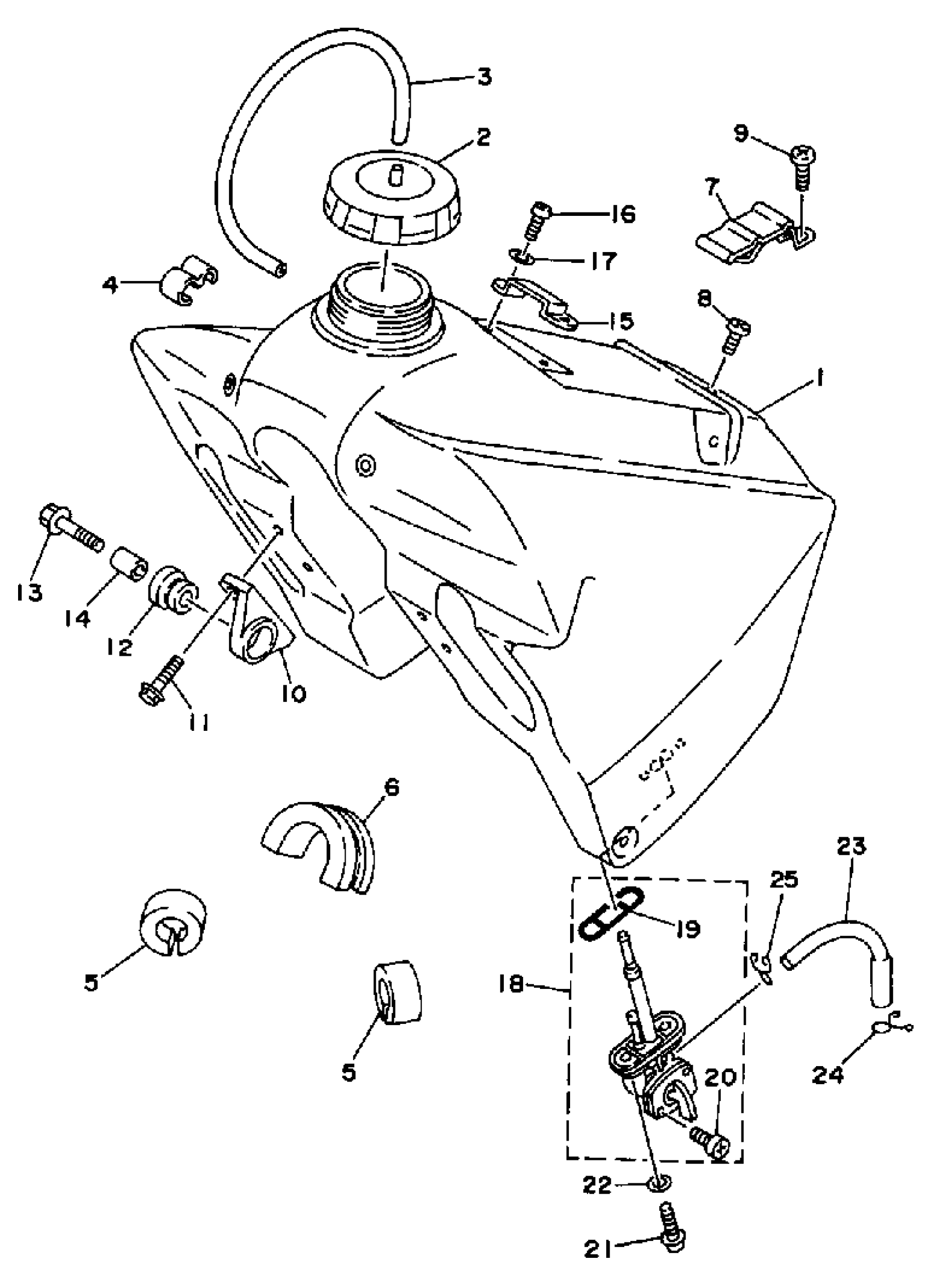

Yamaha WR200RD (WR200R) 1992 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

4BF-24110-01-00

Unavailable

2

CAP ASSY

5MV-24610-00-00

$58.99

3

HOSE (L420)

90445-092K1-00

$12.49

4

CLIP (1E6)

90468-15064-00

Unavailable

5

DAMPER, SIDE COVER

3XJ-21717-00-00

Unavailable

6

DAMPER, LOCATING 1

1LX-24181-00-00

Unavailable

7

BAND, TNK FITTING 1

4BF-24173-00-00

Unavailable

8

SCREW, BIND (J17)

98980-06020-00

$8.49

9

SCREW (5G6)

90149-06165-00

$4.67

10

HOLDER, DAMPER

5XE-24144-00-00

$23.99

11

BOLT, FLANGE(4DU)

95027-06014-00

$8.49

12

GROMMET(4AA)

90480-18549-00

$10.49

13

BOLT, WITH WASHER(3XP)

90119-06214-00

$8.49

14

COLLAR

90387-06387-00

Unavailable

15

BRACKET, SEAT

5X6-2412F-00-00

Unavailable

16

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

FUEL COCK ASSY 1

3BN-24500-00-00

Unavailable

19

O-RING

4X8-24512-00-00

Unavailable

20

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

21

SCREW 256241430000

90149-06011-00

Unavailable

22

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

23

PIPE, FUEL 1 (L332)

3ET-24311-00-00

Unavailable

24

CLIP

90467-100A1-00

Unavailable

25

CLIP 101235600

90467-08003-00

Unavailable
