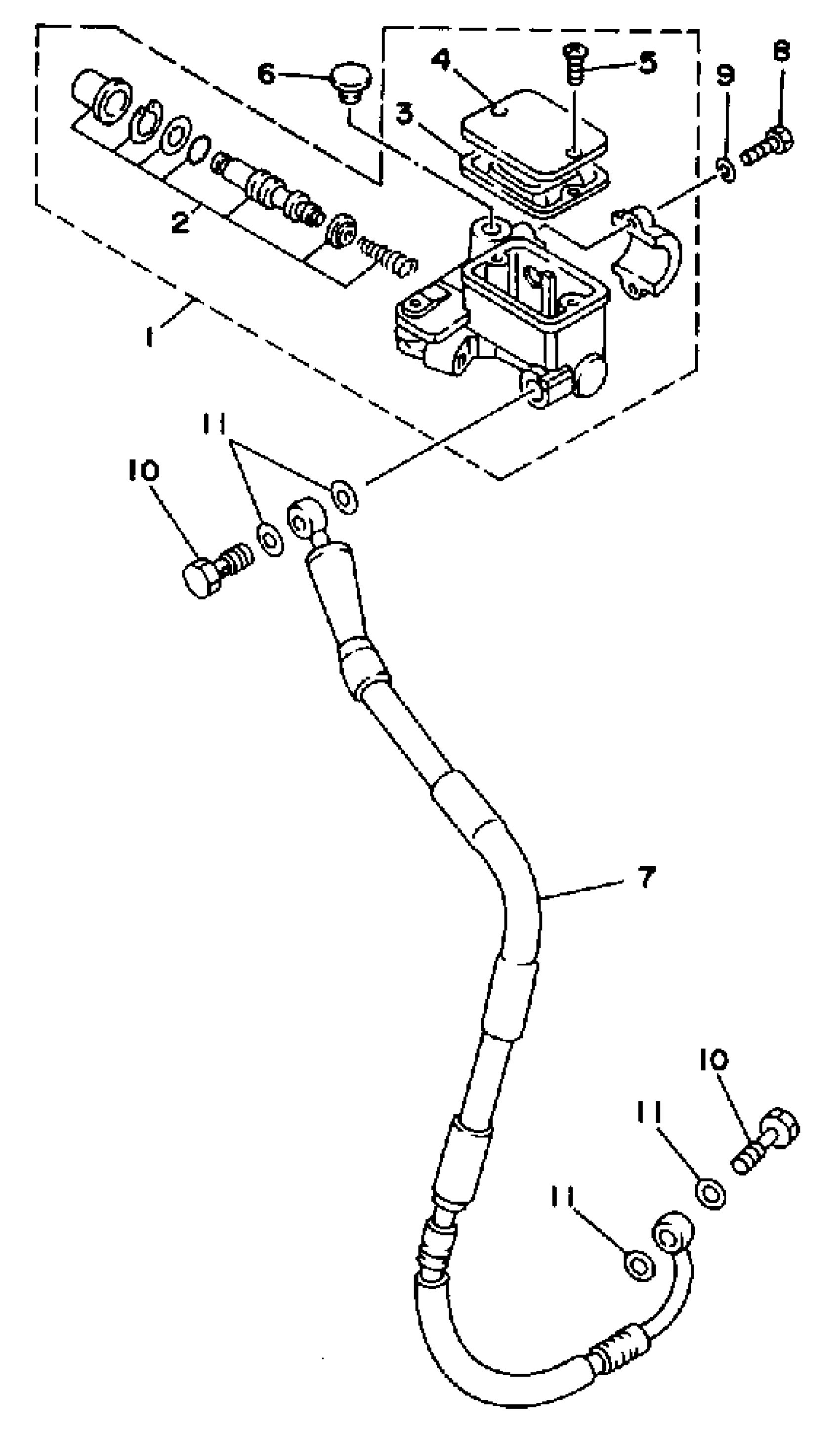

Yamaha WR200RD (WR200R) 1992 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MSTR CYLINDER ASSEMBLY

3XP-2583T-00-00

Unavailable

2

CYL KIT,MASTER

5VK-25807-00-00

Unavailable

3

DIAPHRAGM, RESERVOIR

55U-25854-00-00

$20.24

4

CAP, RESERVOIR (FRONT)

2KF-25852-02-00

Unavailable

5

SCREW, FLAT

98707-04012-00

$1.34

6

PLUG (341-26329-00)

90338-09012-00

$6.76

7

HOSE, BRAKE 1

99999-03042-00

Unavailable

8

BOLT, HEXAGON

97017-06025-00

$2.78

9

WASHER, SPRING

92907-06100-00

$0.98

10

BOLT, UNION(3GM)

90401-10159-00

$8.26

11

WASHER, PLATE(481)

90201-10118-00

Unavailable
