1992 Yamaha WR200R (WR200RD) Frame Diagram

← All diagrams

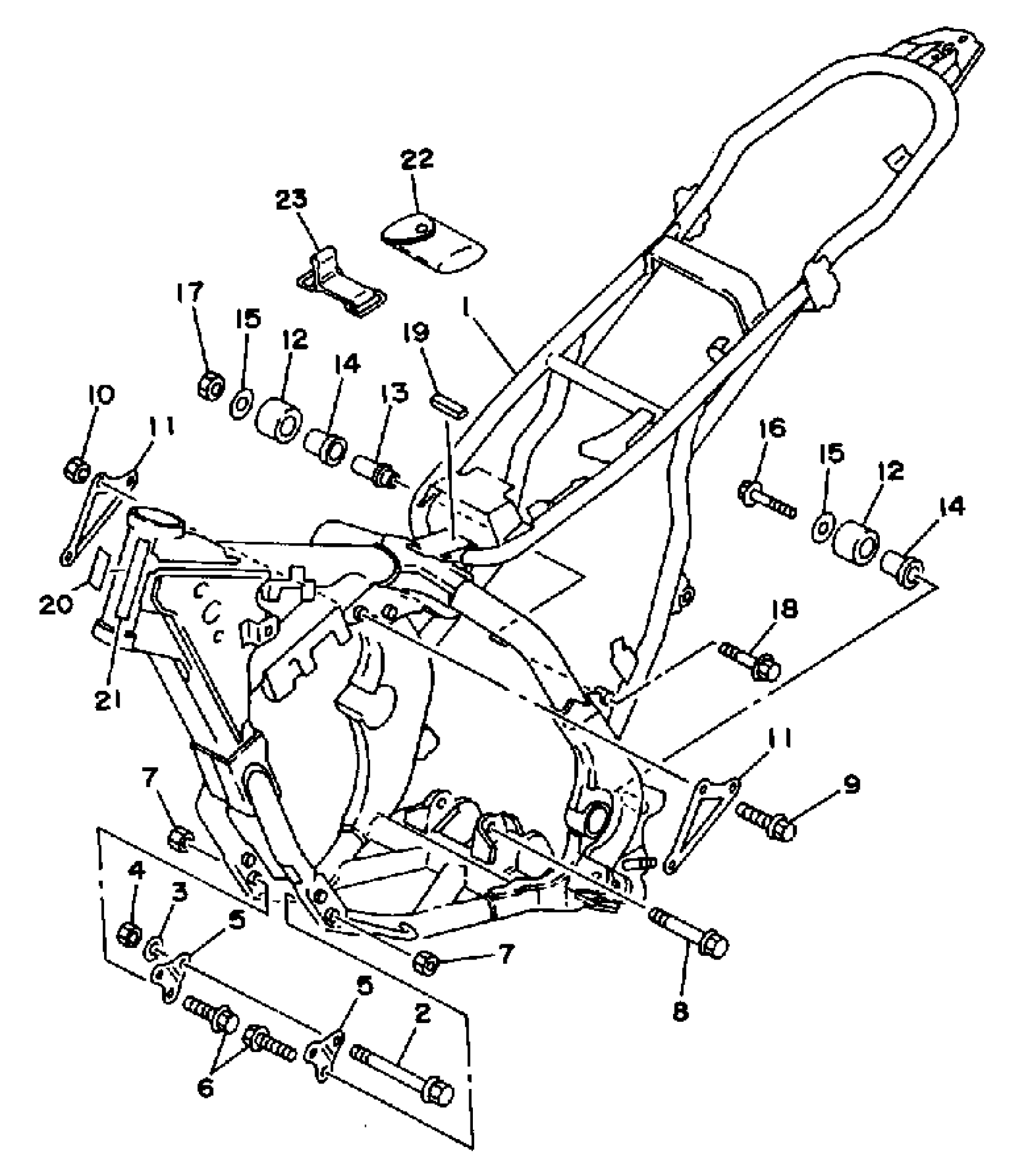

Find the part on the Frame diagram for your 1992 Yamaha WR200R (WR200RD), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha WR200R (WR200RD) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

4BF-21110-00-UJ

1
Out of stock

2

BOLT, WASHER BASED

90105-10645-00

1
Out of stock

3

WASHER, PLATE(6TC)

90201-10M05-00

1
Out of stock

4

1

$6.02

In stock

5

BRACKET, FRT UPR 1

3XP-21415-00-00

1
Out of stock

6

BOLT, WASHER

90105-08663-00

1
Out of stock

7

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

8

BOLT, WASHER BASED

90105-08466-00

1
Out of stock

9

BOLT, WASHER

90105-08663-00

1
Out of stock

10

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

11

BRACKET, REAR UPR 1

3XP-21425-00-00

1
Out of stock

12

TENSIONER

30X-22178-00-00

1
Out of stock

13

SHAFT

2K7-2148A-00-00

1
Out of stock

14

BUSH

10V-22184-00-00

1

$6.72

In stock

15

WASHER, PLATE(8AT)

90201-081R9-00

1
Out of stock

16

BOLT, FLANGE(3XF)

95024-08050-00

—

$6.55

In stock

17

NUT, U

95617-08100-00

—

$6.78

In stock

18

BOLT, FLANGE(2UJ)

95024-08012-00

—

$6.17

In stock

19

DAMPER

(56J-21747-00-00)

1
Out of stock

20

PLATE, EPA U50

4BF-2179X-00-00

1
Out of stock

21

SEAL

1JK-21268-00-00

—
Out of stock

22

TOOL KIT

3XP-28100-00-00

1
Out of stock

23

BAND, BATTERY

1KH-82131-00-00

—
Out of stock
