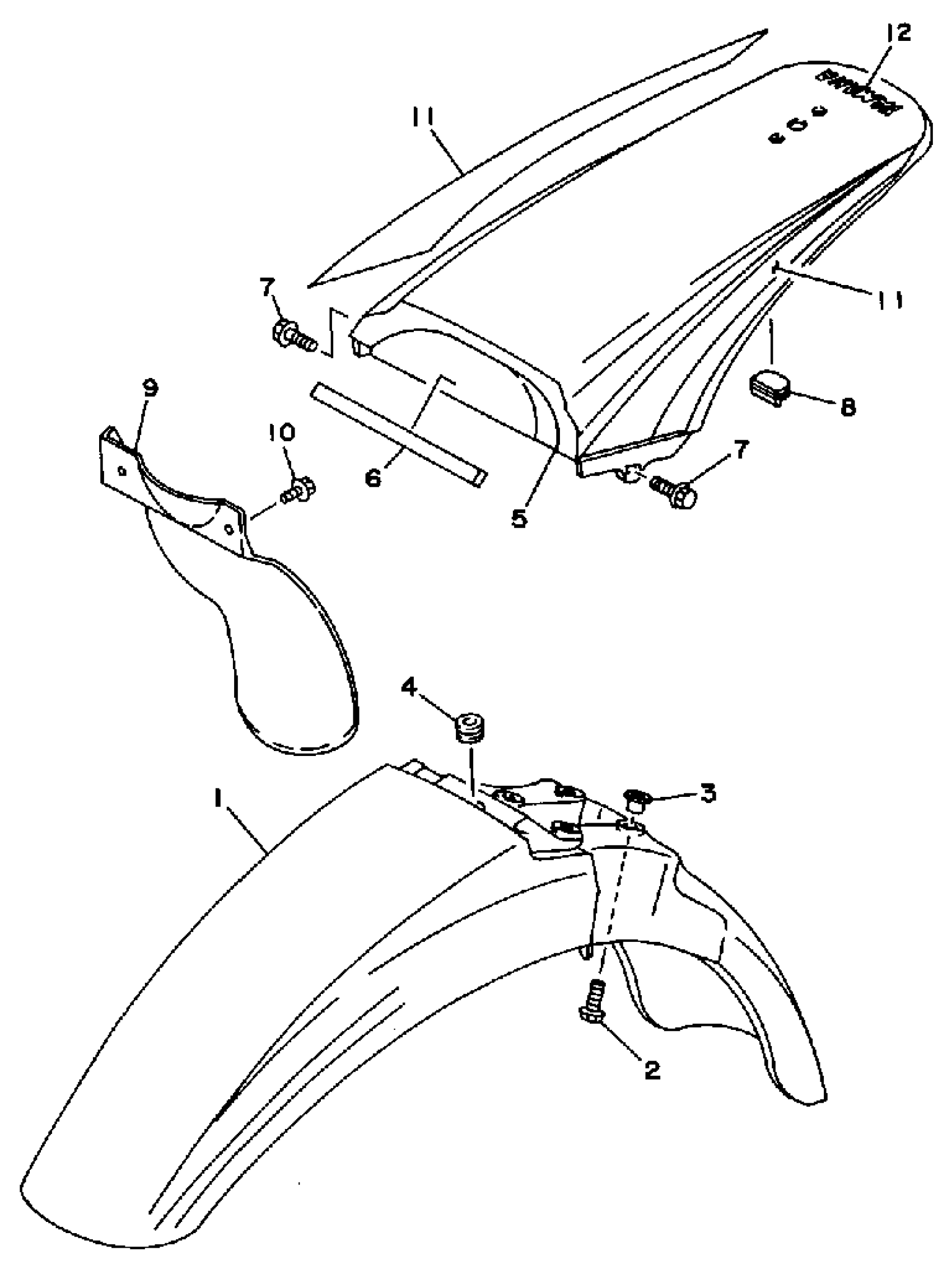

Yamaha WR200RD (WR200R) 1992 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

3XP-21511-00-00

Unavailable

2

BOLT, WITH WASHER(2WG)

90119-06172-00

$6.02

3

COLLAR(2WG)

90387-062V8-00

$3.15

4

GROMMET

90480-13014-00

$6.53

5

FENDER, REAR

4BF-21611-00-00

Unavailable

6

DAMPER 2

3XP-21639-00-00

Unavailable

7

BOLT, WITH WASHER

90119-06207-00

Unavailable

8

GROMMET

90480-16185-00

$6.35

9

GUARD, FLAP

39X-21642-00-00

$66.57

10

BOLT, WITH WASHER(55K)

90119-06117-00

$3.56

11

GRPHC SET RR FNDR

3XP-2165A-11-00

Unavailable

12

EMBLEM, YAMAHA

99244-00080-00

$13.03
