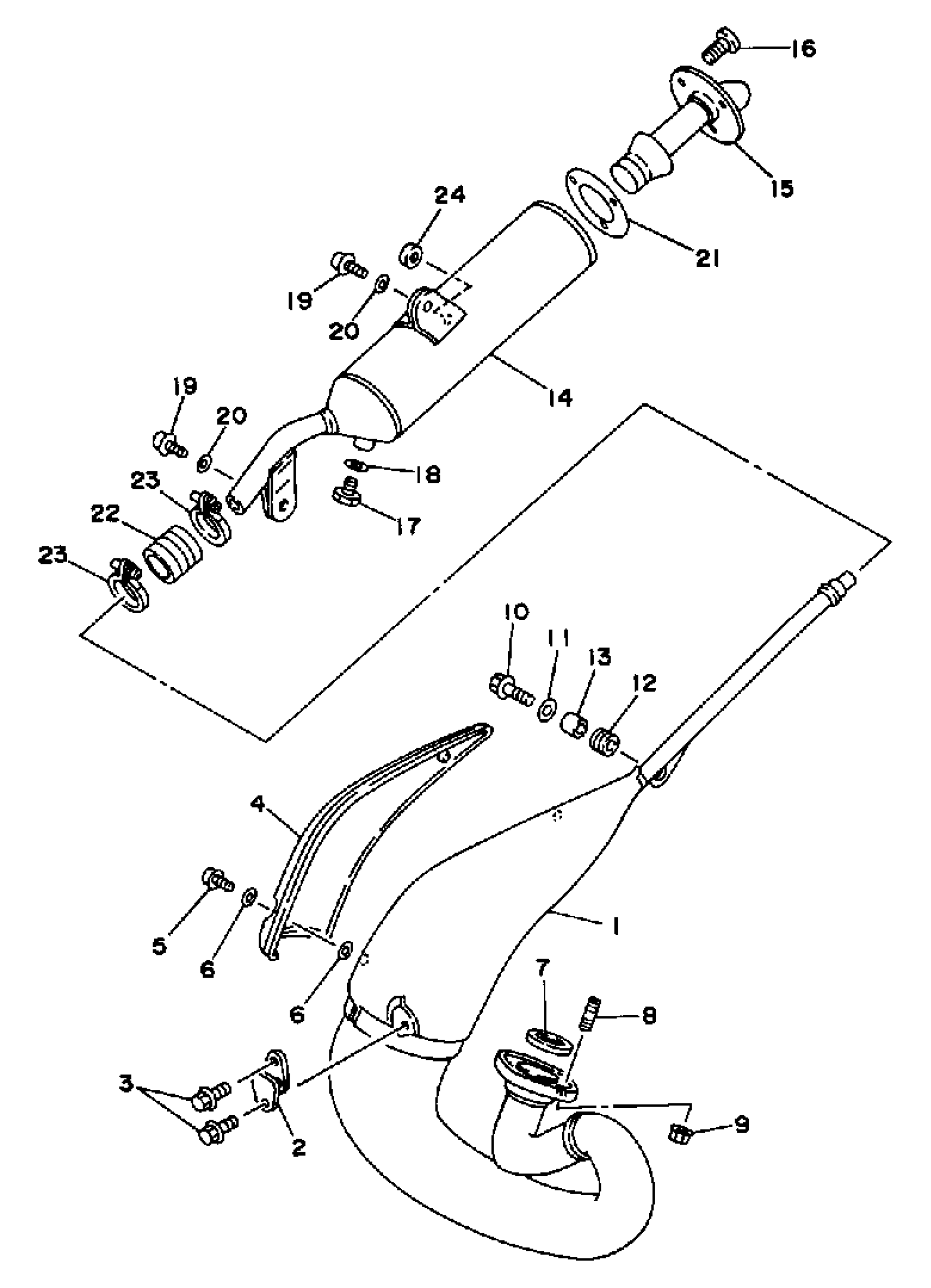

Yamaha WR200RD (WR200R) 1992 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L

3XP-14610-00-00

Unavailable

2

STAY, MUFFLER 1

565-14771-01-00

$18.49

3

BOLT, FLANGE

95817-06012-00

$1.43

4

PROTECTOR, MUFF 1

3XP-14718-00-00

Unavailable

5

SCREW, BINDING

98907-06010-00

$1.65

6

WASHER, PLATE(3MB)

90202-05187-00

$1.38

7

GASKET, EXHAUST PIPE

3PA-14613-10-00

$15.49

8

BOLT STUD 811135580000

90116-08042-00

$9.49

9

NUT, FLANGE (J10)

90179-08270-00

$8.49

10

BOLT, FLANGE

95817-06025-00

Unavailable

11

WASHER, PLATE

90201-06086-00

$7.49

12

GROMMET

90480-18411-00

$11.49

13

COLLAR(34X)

90387-105L0-00

$10.49

14

SILENCER, EXHAUST

4BF-14753-00-00

Unavailable

15

PIPE, OUTLET

2GU-14752-00-00

$62.99

16

SCREW, BINDING

98907-06010-00

$1.65

17

BOLT (11T)

90101-06576-00

Unavailable

18

WASHER(6TA)

92907-06600-00

Unavailable

19

BOLT(2KF)

90109-085E2-00

Unavailable

20

WASHER (853)

90201-08326-00

Unavailable

21

GASKET, EXHAUST PIPE

2GU-14613-10-00

Unavailable

22

GASKET, MUFFLER

3XP-14714-00-00

Unavailable

23

CLAMP, HOSE

90460-37130-00

Unavailable

24

STOPPER, MAIN STAND

157-27114-00-00

Unavailable
