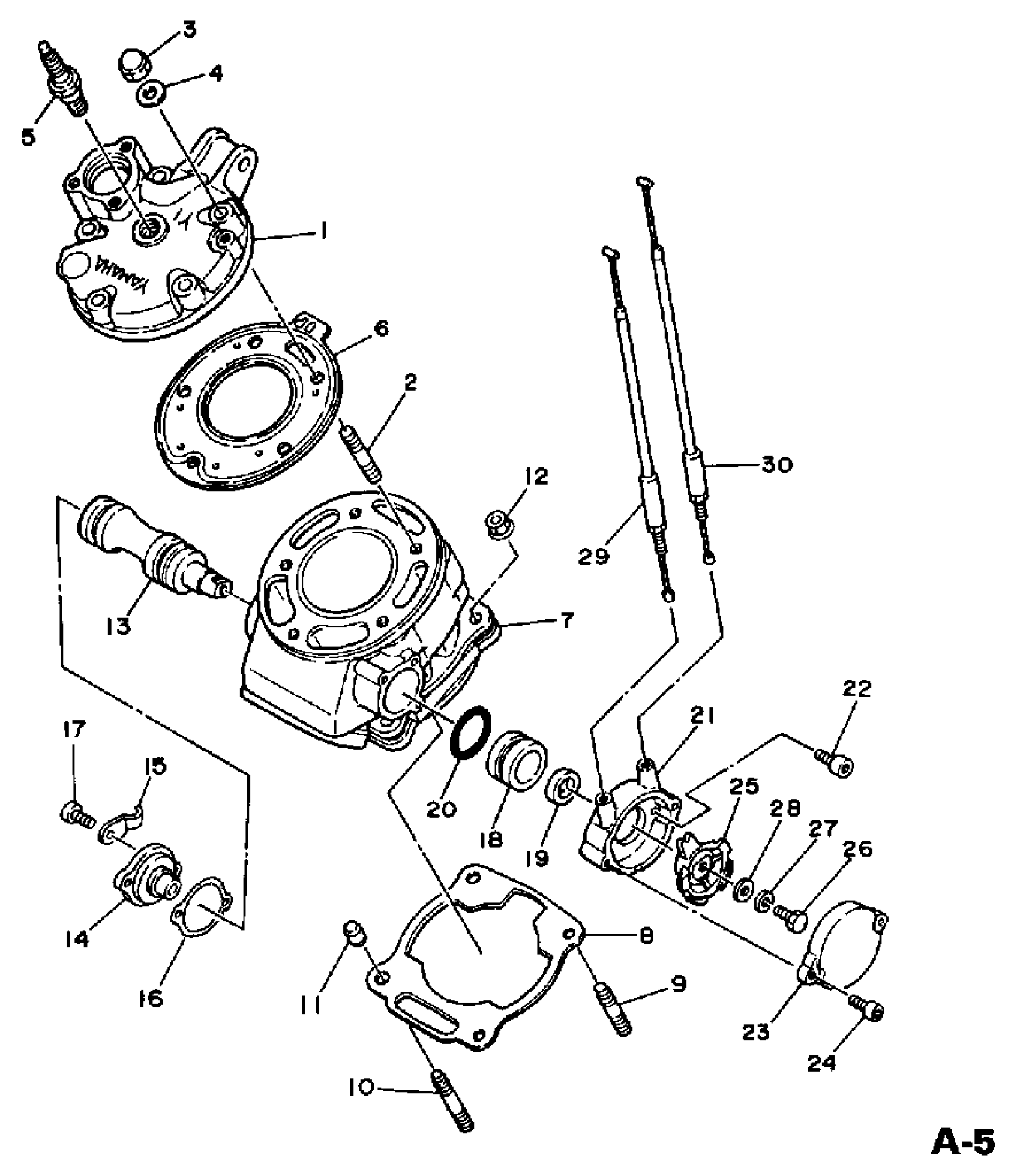

Yamaha WR200RD (WR200R) 1992 CYLINDER HEAD CYLINDER Diagram

#

Description
Price

1

HEAD, CYLINDER 1

3XP-11111-00-00

Unavailable

2

BOLT, STUD (5V6)

90116-08394-00

$11.49

3

NUT, CROWN (12W)

90176-08040-00

$4.19

4

WASHER (1T1)

90201-08649-00

$9.49

5

BR9ES NGK SCREW TOP PLUG 4PK

BR9-ES000-00-00

Unavailable

6

GASKET, CYLINDER HEAD 1

4TP-11181-00-00

$28.99

7

CYLINDER 1

3XP-11311-01-00

Unavailable

8

GASKET CYLINDER

4TP-11351-02-00

$11.99

9

BOLT, STUD (3R3)

90116-08318-00

$7.49

10

BOLT, STUD (10V)

90116-08388-00

$9.49

11

PIN, DOWEL(3VD)

99530-10114-00

$2.55

12

NUT(55X)

90179-08491-00

$8.49

13

VALVE 1

3XP-1131A-00-00

Unavailable

14

HOLDER 1

3RR-1131E-01-00

Unavailable

15

CLAMP

90462-08201-00

Unavailable

16

GASKET, HOLDER

4FL-1131N-00-00

Unavailable

17

BOLT, SOCKET

91317-05012-00

Unavailable

18

HOLDER 3

31K-1131U-00-00

Unavailable

19

OIL SEAL (29L)

93108-23010-00

Unavailable

20

O-RING(1WT)

93210-30734-00

Unavailable

21

COVER

2RH-1131M-10-00

Unavailable

22

BOLT, SOCKET

91314-05010-00

Unavailable

23

CAP, SEAL

2RH-1131R-10-00

Unavailable

24

BOLT, SOCKET

91314-05012-00

Unavailable

25

PULLEY 1

29L-1132E-00-00

Unavailable

26

BOLT, HEXAGON

97017-06020-00

Unavailable

27

WASHER, SPRING

92907-06100-00

Unavailable

28

WASHER(6TA)

92907-06600-00

Unavailable

29

CABLE, PULLEY 1

3XP-1133E-00-00

Unavailable

30

CABLE, PULLEY 2

3BN-1133F-00-00

Unavailable
