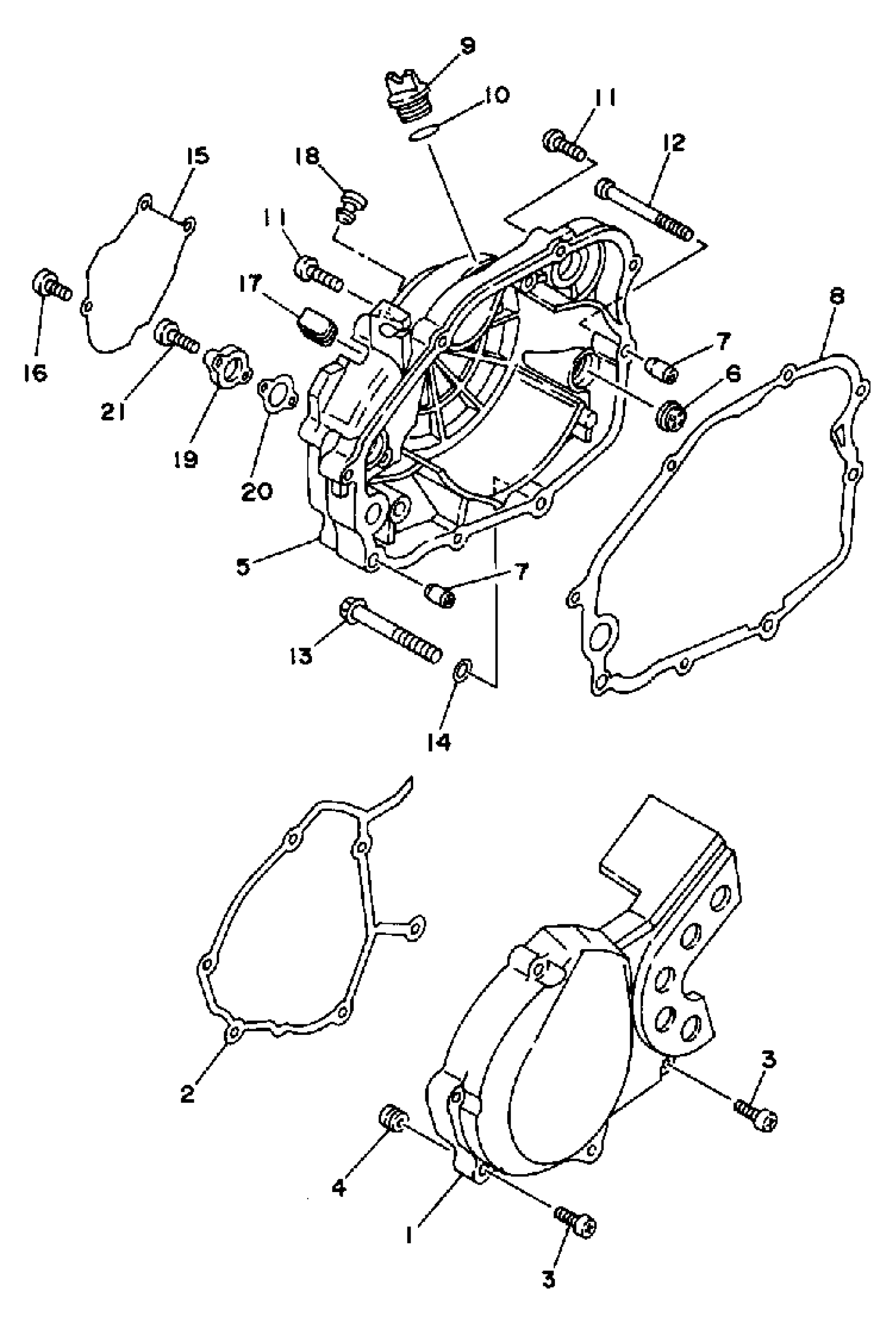

Yamaha WR200RD (WR200R) 1992 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

3BN-15411-11-00

Unavailable

2

SEAL, CRANKCASE

3ET-15379-00-00

Unavailable

3

SCREW, PAN HEAD(3XP)

90157-06115-00

Unavailable

4

GROMMET

90480-09481-00

$8.49

5

COVER, CRANKCASE R (3XP-15421-00)

3XP-15421-01-00

Unavailable

6

GAUGE, LEVEL

3Y1-15361-00-00

$30.99

7

PIN, DOWEL(3VD)

99530-10114-00

$2.55

8

GASKET, CRANKCASE COVER 1

3XP-15451-03-00

$32.99

9

PLUG, OIL

3Y1-15363-10-00

$18.49

10

O-RING (646)

93210-19123-00

Unavailable

11

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

12

SCREW PAN HEAD

98580-06040-00

$8.49

13

BOLT, FLANGE(JF2)

95817-08080-00

$4.24

14

WASHER, PLATE 3411117500

90201-08087-00

$3.71

15

COVER, OIL PUMP

4BF-15416-00-00

Unavailable

16

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

17

GROMMET

4BF-15357-00-00

Unavailable

18

PLUG

4BF-15189-00-00

Unavailable

19

COVER, PUMP UNIT

161-15426-00-00

Unavailable

20

GASKET, PUMP CASE

126-13116-01-00

Unavailable

21

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable
