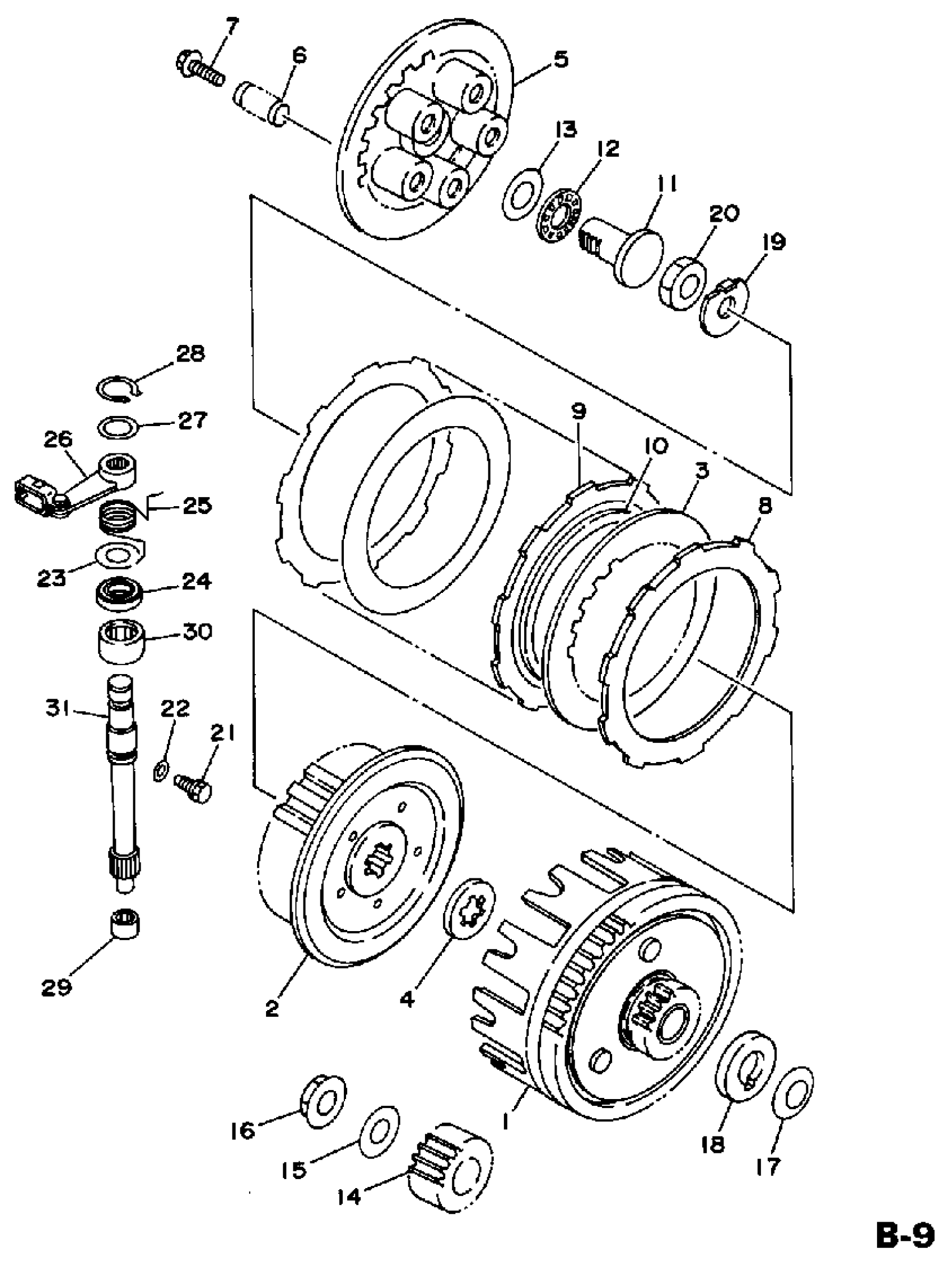

Yamaha WR200RD (WR200R) 1992 CLUTCH Diagram

PRI DRVN GEAR

3XP-16150-00-00

Unavailable

BOSS, CLUTCH

37F-16371-01-00

$111.99

PLATE, CLUTCH 1

1V1-16324-10-00

$22.99

PLATE, THRUST 1

2TV-16154-00-00

Unavailable

PLATE, PRESSURE 1

3XP-16351-00-00

Unavailable

SPRING, COMPRESSION (3M5)

90501-20568-00

$12.49

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

$8.49

PLATE, FRICTION

3XP-16321-00-00

$19.99

PLATE, FRICTION 2

1HX-16331-00-00

$25.99

SPRING, CLUTCH BOSS

3BN-16383-00-00

Unavailable

ROD PUSH ASSY

3LD-1637A-01-00

Unavailable

BEARING, THRUST (713)

93340-21505-00

$18.99

WASHER, PLATE(3GD)

90201-150U6-00

$9.49

GEAR, PRI DRIVE

3RR-16111-00-00

Unavailable

WASHER, PLATE (4K8)

90201-120E8-00

$7.49

NUT(1EE)

90179-12659-00

Unavailable

WASHER, CONICAL SPRING(2TV)

90208-18046-00

Unavailable

WASHER, PLATE(2YY)

90201-180P2-00

Unavailable

WASHER, LOCK(2RH)

90215-12271-00

Unavailable

NUT(2RH)

90170-12370-00

Unavailable

BOLT (583 TACHOMETER)

90109-06418-00

Unavailable

GASKET 256113960000

90430-06014-00

Unavailable

WASHER PLATE 102181410000

90201-12474-00

Unavailable

OIL SEAL (3X3)

93102-15212-00

Unavailable

SPRING, TORSION

90508-14767-00

Unavailable

PUSH LEVER ASSY

4HM-16340-00-00

Unavailable

WASHER, PLAIN(735)

90201-10119-00

Unavailable

CIRCLIP(10W)

99009-10400-00

Unavailable

BEARING

93315-10838-00

Unavailable

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

Unavailable

AXLE, PUSH LEVER

3JD-16382-00-00

Unavailable
