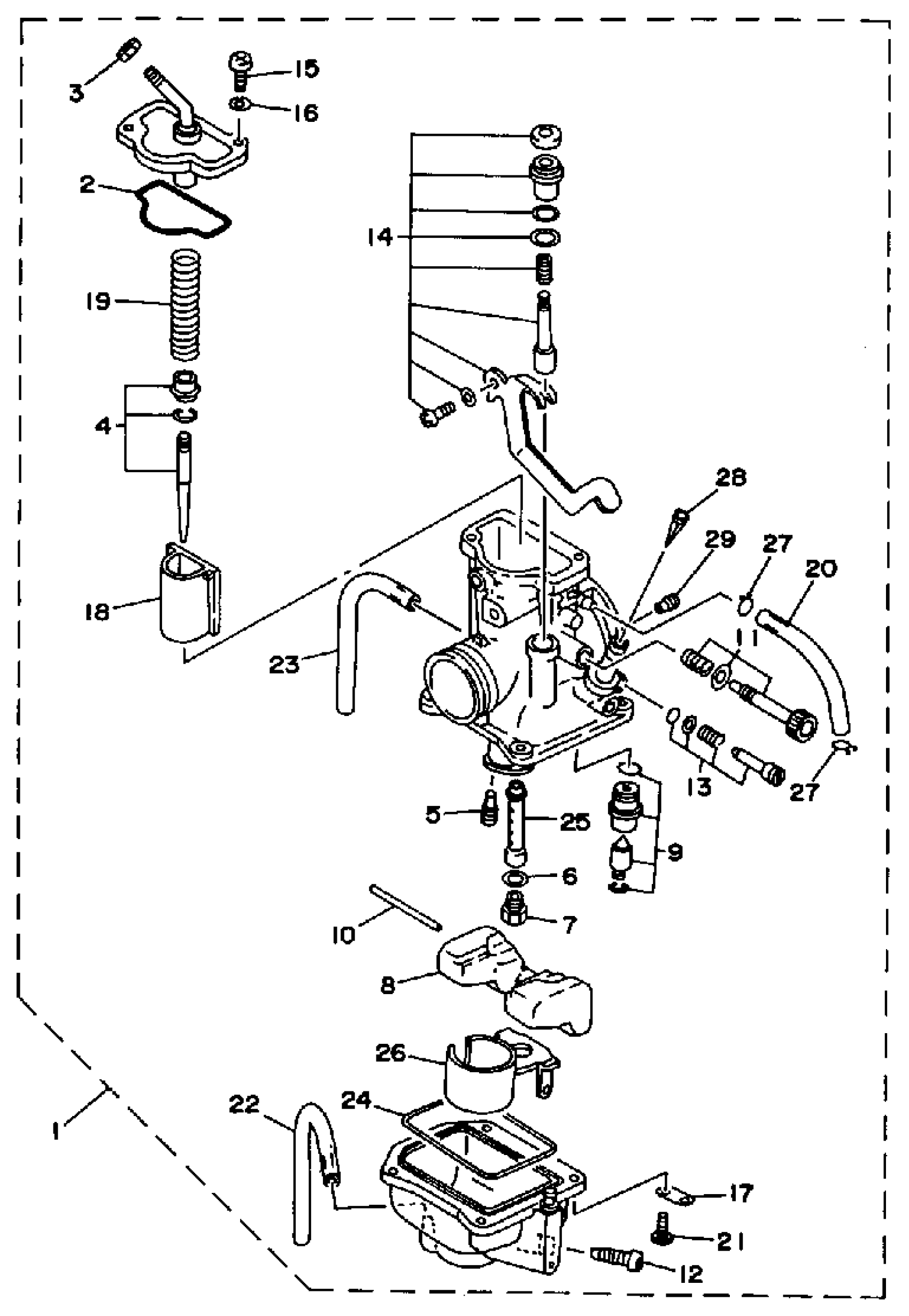

Yamaha WR200RD (WR200R) 1992 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

4BF-14101-00-00

Unavailable

2

O-RING

3JD-14147-00-00

$11.99

3

NUT, WIRE ADJUSTING

127-14161-00-00

$7.99

4

. NEEDLE SET

3XP-1490J-10-00

Unavailable

5

JET, PIL0T(# 35)

193-14142-35-00

$9.99

6

WASHER,MAIN JET

137-14153-00-00

$7.99

7

JET, MAIN #210

137-14143-42-A1

Unavailable

8

FLOAT

3XP-14185-00-00

Unavailable

9

NEEDLE VALVE ASSY

3XP-14190-30-00

$35.99

10

PIN, FLOAT

353-14186-00-00

$7.99

11

. THROTTLE SCREW SET

3XP-14103-00-00

Unavailable

12

PLUG, DRAIN

12R-14191-00-00

$16.49

13

AIR SCREW SET

3XP-14104-00-00

Unavailable

14

. STARTER SET

3XP-1410A-00-00

Unavailable

15

SCREW, PAN HEAD

98511-04012-00

Unavailable

16

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

17

. PLATE

313-14146-00-00

Unavailable

18

. VALVE, THROTTLE 1

3XP-14112-40-00

Unavailable

19

. SPRING, THRTL LEVEL

3XP-14931-00-00

Unavailable

20

. HOSE

3XP-14987-00-00

Unavailable

21

SCREW, PAN HEAD

90157-05M19-00

Unavailable

22

PIPE 1

3XV-14348-20-00

Unavailable

23

HOSE

89A-14987-00-00

Unavailable

24

SEAL

3XP-14229-00-00

Unavailable

25

. NOZZLE, MAIN

3XP-14141-28-00

Unavailable

26

. HOLDER

3XP-14261-00-00

Unavailable

27

CLIP, PIPE

8A7-14139-00-00

Unavailable

28

NET, FILTER

1KT-14994-00-00

Unavailable

29

. PILOT JET, AIR (08)

239-14172-08-00

Unavailable
