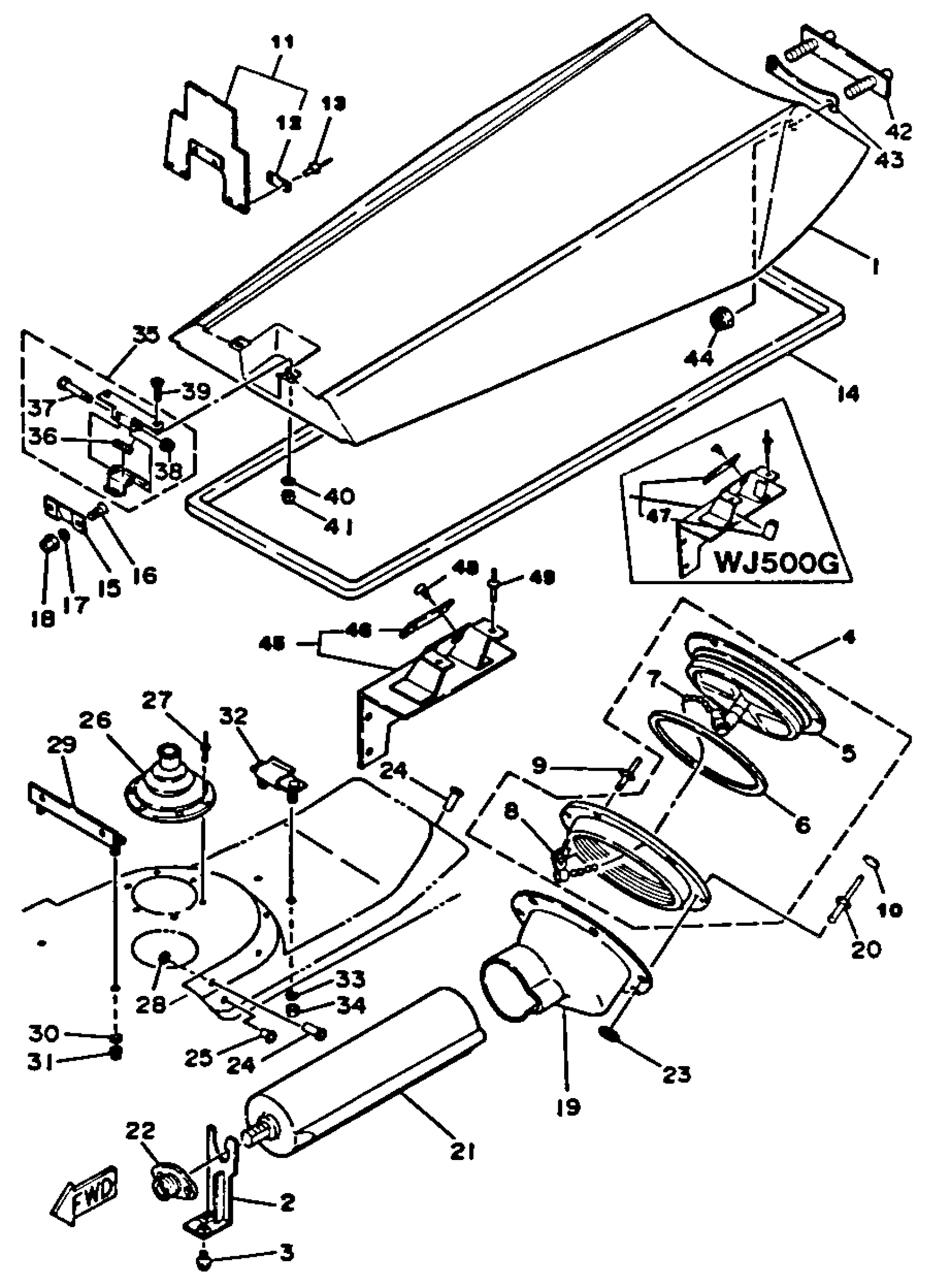

Yamaha WJ500H (WAVE JAMMER) 1987 HULL DECK 1 Diagram

#

Description
Price

1

ENGINE HATCH COMP.

EW3-65160-00-00

Unavailable

2

BRACKET

EW3-65937-00-00

Unavailable

3

BOLT, WITH WASHER

90119-06908-00

Unavailable

4

COVER, INSPECTION

EU0-62721-01-00

Unavailable

5

COVER, INSPECTION

EU0-62721-01-00

Unavailable

6

. RING

93211-03902-00

Unavailable

7

. CHAIN BALL

EU0-67835-30-00

Unavailable

8

COUPLING

EU0-67839-00-00

Unavailable

9

RIVET, BLIND

90267-40937-00

Unavailable

10

PLUG

EW3-62723-00-00

Unavailable

11

HOOK, ENGINE HATCH, HATCH COMP

EW3-65190-01-00

Unavailable

11

HOOK, ENGINE HATCH, HATCH COMP

EW3-65190-01-00

Unavailable

12

. WASHER, SPECIAL

EW3-65194-00-00

Unavailable

13

RIVET, BLIND

90267-48802-00

Unavailable

14

PACKING 2

EW3-62664-00-00

Unavailable

15

HOOK HATCH LOCK

EW3-62843-00-00

Unavailable

16

SCREW, FLAT HEAD

98780-05020-00

Unavailable

17

. WASHER, PLAIN

92990-05200-00

Unavailable

18

NUT, FLANGE

95720-05300-00

Unavailable

19

GROMMET

EW3-65984-00-00

Unavailable

20

RIVET, BLIND

90267-40937-00

Unavailable

21

BOX, FIRE EXTNGSHER

EW3-65983-00-00

Unavailable

22

WASHER, DRAIN PLUG

A39-62256-00-29

Unavailable

23

YBS66-4 WASHER, PLAIN

92990-04200-00

Unavailable

24

NUT, POP

90179-06922-00

Unavailable

25

NUT

90179-06524-00

Unavailable

26

GROMMET, STEERING

EW3-61221-00-00

Unavailable

27

RIVET, BLIND

90267-40006-00

Unavailable

28

WASHER

90201-09924-00

Unavailable

29

STOPPER, HATCH 1

EW3-65135-00-00

Unavailable

30

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

31

NUT, SELF-LOCKING

95720-06300-00

Unavailable

32

STOPPER, SEAT

(EW3-63729-00-00)

Unavailable

33

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

34

NUT, SELF-LOCKING

95720-06300-00

Unavailable

35

HATCH LOCK ASSEMBLY

EW3-62840-00-00

Unavailable

36

. SPRING

EW3-62834-00-00

Unavailable

37

. SCREW, PAN HEAD

98580-04545-00

Unavailable

38

. NUT, FLANGE

95720-04300-00

Unavailable

38

NUT, NYLON (EJ3)

90185-04903-00

Unavailable

39

SCREW, FLAT HEAD

98780-05020-00

Unavailable

40

. WASHER, PLAIN

92990-05200-00

Unavailable

41

NUT, FLANGE

95720-05300-00

Unavailable

41

. NUT, M5 X 08 NYLON LOCK

95780-05300-00

Unavailable

42

STOPPER, HATCH 2

EW3-65136-00-00

Unavailable

43

PLATE HOOD

EW3-65148-00-00

Unavailable

44

NUT, SELF-LOCKING

95720-06300-00

Unavailable

44

NUT, FLANGE

95780-06300-00

Unavailable

45

BRACKET E/L BOX

EW3-68156-01-00

Unavailable

46

. MAT

EW3-67593-40-00

Unavailable

47

TRIM

90667-92006-00

Unavailable

48

SCREW, FLAT HEAD

98780-06016-00

Unavailable

49

RIVET, BLIND

90267-48934-00

Unavailable
