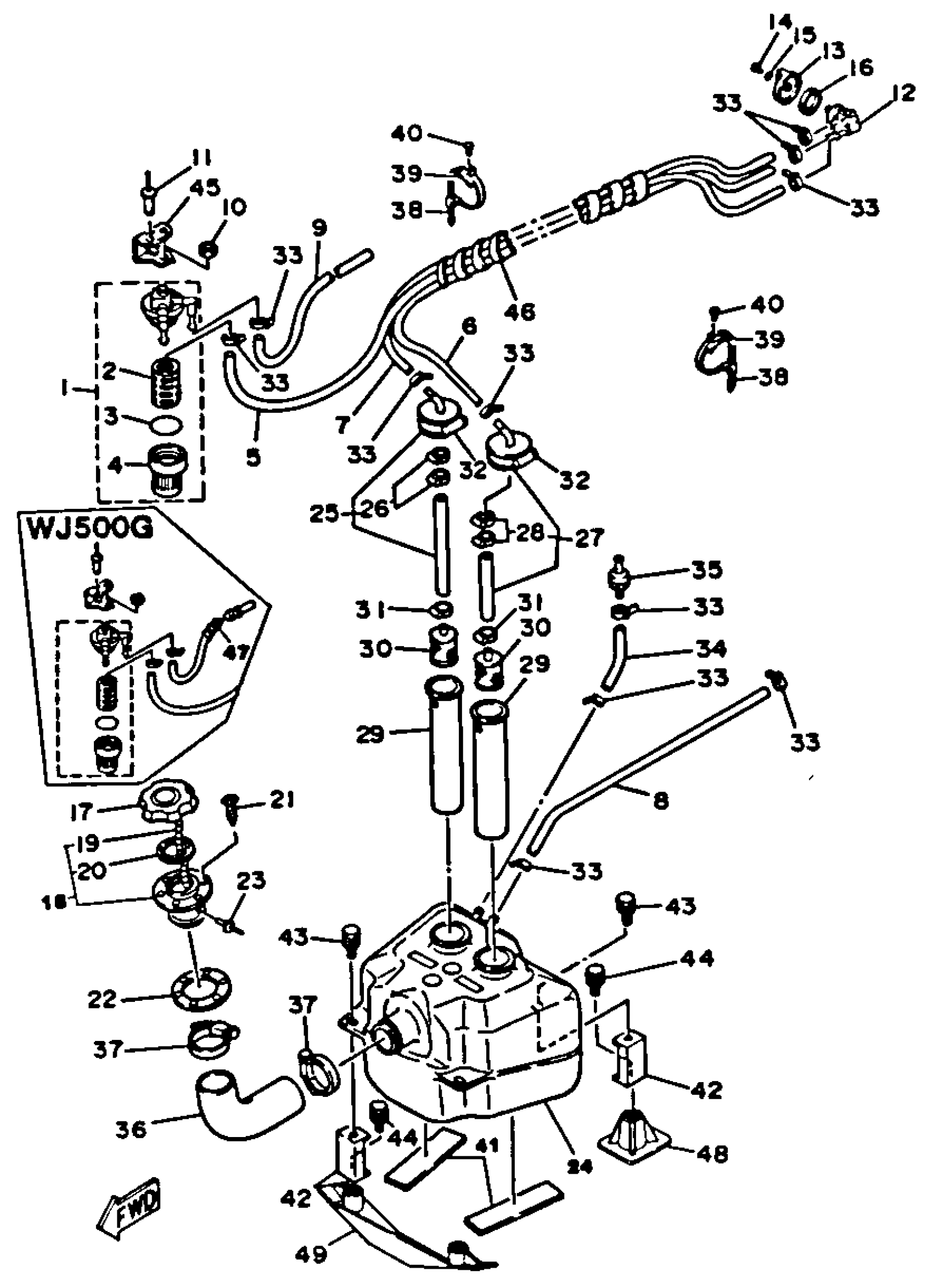

Yamaha WJ500H (WAVE JAMMER) 1987 FUEL TANK Diagram

#

Description
Price

1

FILTER ASSY

61N-24560-10-00

$38.56

2

. ELEMENT, FILTER

6F5-24563-00-00

$15.11

3

. O-RING

93210-37M25-00

$4.56

4

. CUP, FILTER

655-24521-01-00

Unavailable

5

HOSE (6K8)

90445-10M12-00

Unavailable

6

HOSE (6K8)

90445-10M10-00

Unavailable

7

HOSE (L1700)

90445-10M87-00

Unavailable

8

HOSE (L400)

90445-10M43-00

$5.96

9

HOSE (6K8)

90445-10M13-00

Unavailable

10

. NUT, SELF-LOCKING

95720-08300-00

$3.33

11

RIVET, BLIND

90267-48934-00

Unavailable

12

FUEL COCK ASSY 1

6K8-24500-03-00

Unavailable

13

LEVER, COCK

6K8-24524-10-00

$11.84

14

SCREW, PAN HEAD (E56)

98580-04010-00

$5.75

15

WASHER, PLAIN (646)

92990-04600-00

$0.91

16

NUT

90170-22M11-00

Unavailable

17

CAP, FUEL FILLER

EU0-67831-32-00

Unavailable

18

SOCKET

EU0-W6783-01-00

Unavailable

19

. CHAIN BALL

EU0-67835-00-00

$5.18

20

PACKING 1

EU0-67832-00-00

$7.40

21

SCREW, FLAT HEAD TAPPING

EU0-U7869-00-00

Unavailable

22

PACKING, FUEL FILLER

EU0-67834-00-00

$25.49

23

. RIVET, BLIND

90267-40935-00

$1.28

24

FUEL TANK

EW3-67711-01-00

Unavailable

25

PIPE, SUCTION 1

EU0-24335-01-00

Unavailable

26

BAND, HOSE

90601-11052-00

$31.80

27

PIPE, SUCTION 1

EU0-24335-31-00

Unavailable

28

BAND, HOSE

90601-11052-00

$31.80

29

PIPE, SUCTION 2

EW3-24336-00-00

$40.89

30

FILTER ASSY

8H5-24560-00-00

$10.74

31

BAND, HOSE

90601-11052-00

$31.80

32

BAND, HOSE 62

90601-162U5-00

$6.17

33

CLAMP

90465-10098-00

$1.68

34

HOSE, AIR VENT 1

EU0-67856-00-00

Unavailable

35

CHECK VALVE

EU0-67767-31-00

$20.93

36

HOSE, FILLER

EW3-67844-00-00

Unavailable

37

BAND, HOSE 55

90601-155U4-00

$5.87

38

BAND (EU0)

90601-20009-00

$6.36

38

BAND (EU0)

90601-20009-00

$6.36

39

. WASHER, PLAIN

90201-05925-00

Unavailable

39

. WASHER, PLAIN

90201-05925-00

Unavailable

40

RIVET, BLIND(EU0,USA)

90267-489U9-00

Unavailable

40

RIVET, BLIND(EU0,USA)

90267-489U9-00

Unavailable

41

MAT

EW3-67593-00-00

Unavailable

42

FIX, FUEL TANK 1

EW3-67777-00-00

Unavailable

43

BOLT, WITH WASHER

90119-08907-00

$5.45

44

BOLT, WITH WASHER

90119-08903-00

Unavailable

45

BRACKET, FILTER

EU0-67816-00-00

Unavailable

46

SPI-LAP 11

90699-36100-00

Unavailable

47

PLUG

90699-34100-00

Unavailable

48

BASE, FUEL TANK 1

EU0-67745-01-00

Unavailable

49

BASE, FUEL TANK (FT)

EW3-67745-30-00

Unavailable
