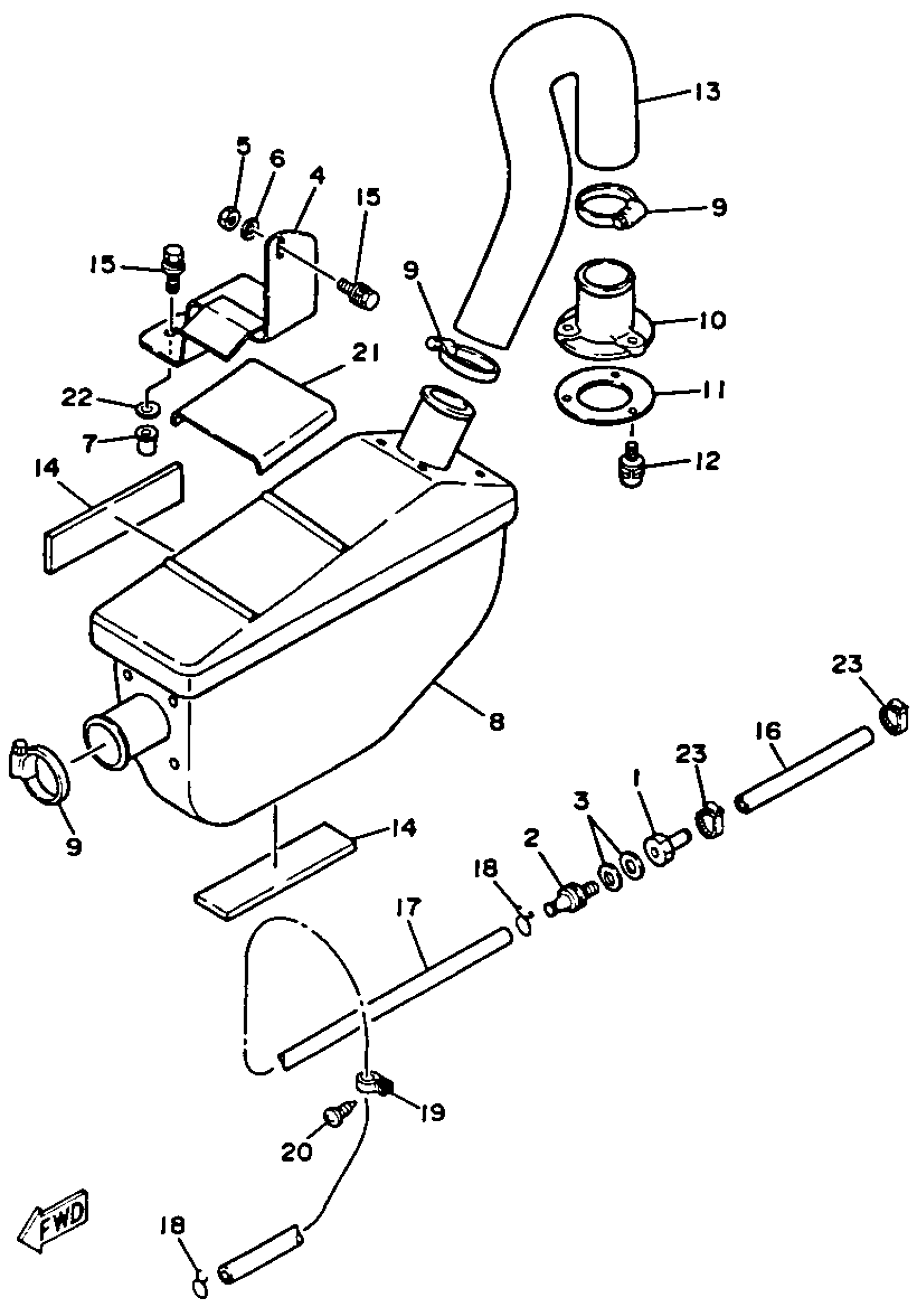

Yamaha WJ500H (WAVE JAMMER) 1987 EXHAUST 2 Diagram
#
Description
Price
1
CONNECTION, THRU-HULL 1/4
90604-80757-00
Unavailable
2
CONNECTION, THRU-HULL 1/4
90604-80758-00
Unavailable
3
GASKET
90430-13909-00
Unavailable
4
BRACKET, WATER LOCK
EW3-67557-00-00
Unavailable
5
NUT, SELF-LOCKING
95720-06300-00
Unavailable
7
NUT, POP
90179-06922-00
Unavailable
8
WATER LOCK
EW3-67550-01-00
Unavailable
9
BAND, HOSE 52
90601-15272-00
Unavailable
10
THRU-HULL
EW3-67565-00-00
Unavailable
11
PACKING
EU0-67525-01-00
Unavailable
12
BOLT, WITH WASHER (EW3)
90119-05912-00
Unavailable
12
SCREW, WITH WASHER
90159-05900-00
Unavailable
13
HOSE
EW3-67555-00-00
Unavailable
14
MAT
EW3-67593-00-00
Unavailable
15
BOLT,WITH WASHER
90119-06940-00
Unavailable
16
HOSE
90445-13M04-00
Unavailable
17
HOSE
90445-13M05-00
Unavailable
18
. CLIP
90467-12M11-00
Unavailable
19
CLIP, NYLON 17
90600-91728-00
Unavailable
20
SCREW, PANHEAD (97701-50515-00)
90149-059U1-00
Unavailable
21
MAT
EW3-67593-30-00
Unavailable
22
WASHER
90201-09924-00
Unavailable
23
CLAMP
90465-10098-00
Unavailable
