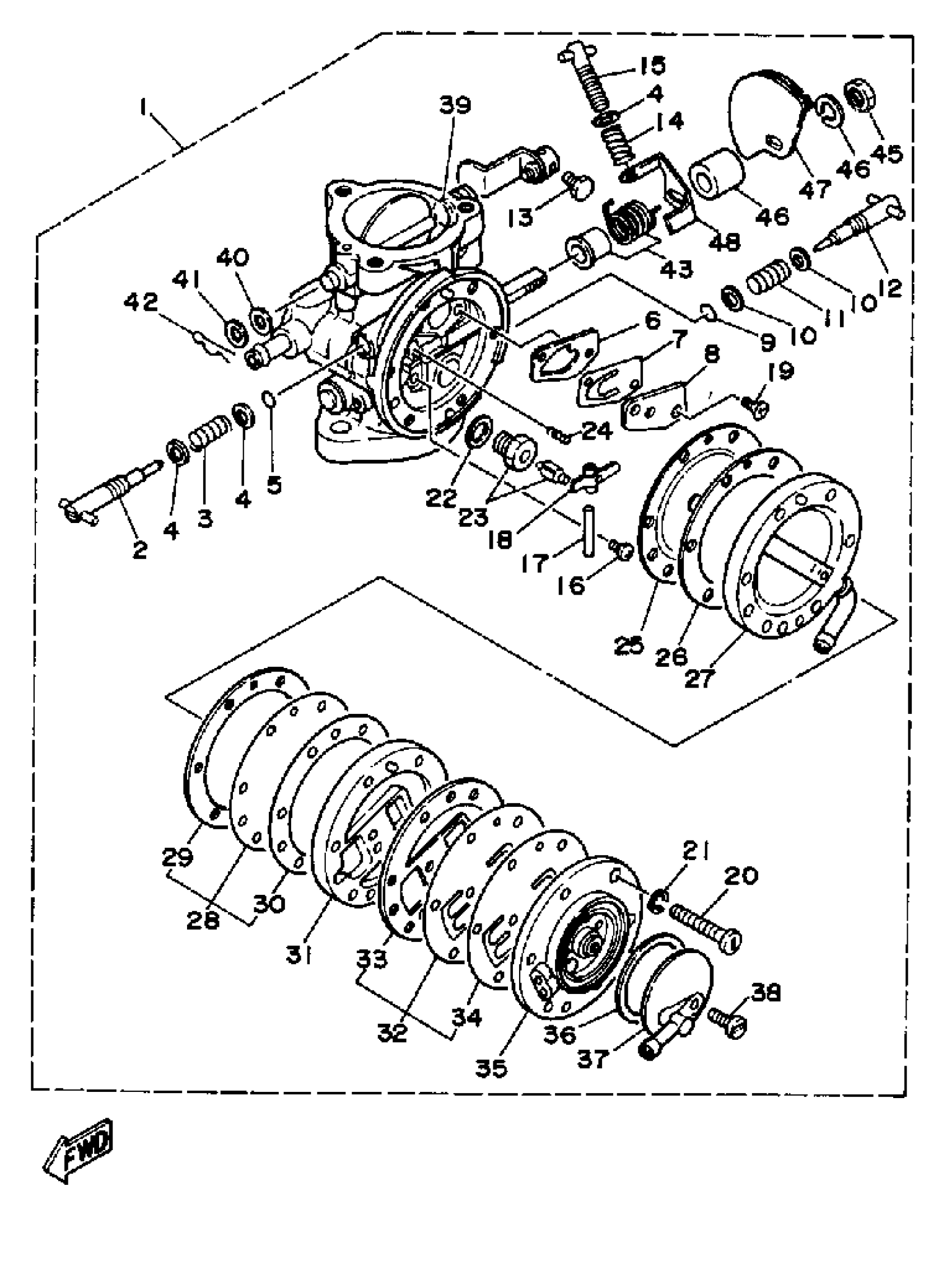

Yamaha WJ500H (WAVE JAMMER) 1987 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1 (6K8-14301-00)

6K8-14301-02-00

Unavailable

2

. MIXTURE SCREW, HIGH

6K8-14946-00-00

Unavailable

3

. SPRING, ADJUST SCREW

6K8-14533-00-00

Unavailable

4

WASHER,NEEDLE

812-14235-00-00

Unavailable

5

. O-RING

6K8-14562-00-00

Unavailable

6

. GASKET

6K8-14536-00-00

Unavailable

7

. DIAPHRAGM

6K8-14545-00-00

Unavailable

8

. PLATE 1

6K8-14346-00-00

Unavailable

9

. O-RING

6K8-14561-00-00

Unavailable

10

. WASHER

6K8-14537-00-00

Unavailable

11

. SPRING

6K8-14589-00-00

Unavailable

12

. SPRING

6K8-14923-00-00

Unavailable

13

. SCREW

6K8-14592-00-00

Unavailable

14

. SPRING, ADJUST SCREW

6K8-14531-00-00

Unavailable

15

. SCREW, ADJUST

6K8-14521-00-00

Unavailable

16

SCREW, FLAT

98707-03008-00

Unavailable

17

. PIN, FLOAT

6K8-14579-00-00

Unavailable

18

. ARM, FLOAT

6K8-14547-01-00

Unavailable

19

SCREW, FLAT

98707-03008-00

Unavailable

20

SCREW, PAN

98507-04030-00

Unavailable

21

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

22

. WASHER

6K8-14597-00-00

Unavailable

23

. NEEDLE

6K8-14916-20-00

Unavailable

24

. SPRING

6K8-14253-00-00

Unavailable

25

. DIAPHRAGM

6K8-14541-00-00

Unavailable

26

.. GASKET, BODY 3

6K8-24436-00-00

Unavailable

27

. BODY 1

6K8-24412-00-00

Unavailable

28

. DIAPHRAGM

6K8-24411-00-00

Unavailable

29

.. GASKET, BODY 3

6K8-24436-00-00

Unavailable

30

.. GASKET, BODY 2

6K8-24435-00-00

Unavailable

31

. BODY 2

6K8-24413-00-00

Unavailable

32

. DIAPHRAGM ASSEMBLY

6K8-24421-00-00

Unavailable

33

.. GASKET, BODY

6K8-24434-00-00

Unavailable

34

.. GASKET, FUEL PUMP 1

6K8-24431-00-00

Unavailable

35

. BODY 3

6K8-24414-01-00

Unavailable

36

. GASKET, FUEL PUMP 2

6K8-24432-00-00

Unavailable

37

. COVER

6K8-24452-01-00

Unavailable

38

SCREW, PAN HEAD

98511-04012-00

Unavailable

39

. COLLAR

6K8-14596-00-00

Unavailable

40

. WASHER

6K8-14557-00-00

Unavailable

41

. WASHER

6K8-14558-00-00

Unavailable

42

. PIN, FLOAT ARM

6K8-14548-00-00

Unavailable

43

. SPRING SET

6K8-W1455-00-00

Unavailable

44

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

45

. NUT

95380-08700-00

Unavailable

46

. RING

6K8-14918-00-00

Unavailable

47

. THROTTLE SHAFT ASSEMBLY

6K8-14930-00-00

Unavailable

48

. LEVER, THROTTLE STP

6K8-14582-00-00

Unavailable
