1989 Yamaha Wave Jammer (WJ500F) Jet Unit Diagram

← All diagrams

Find the part on the Jet Unit diagram for your 1989 Yamaha Wave Jammer (WJ500F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

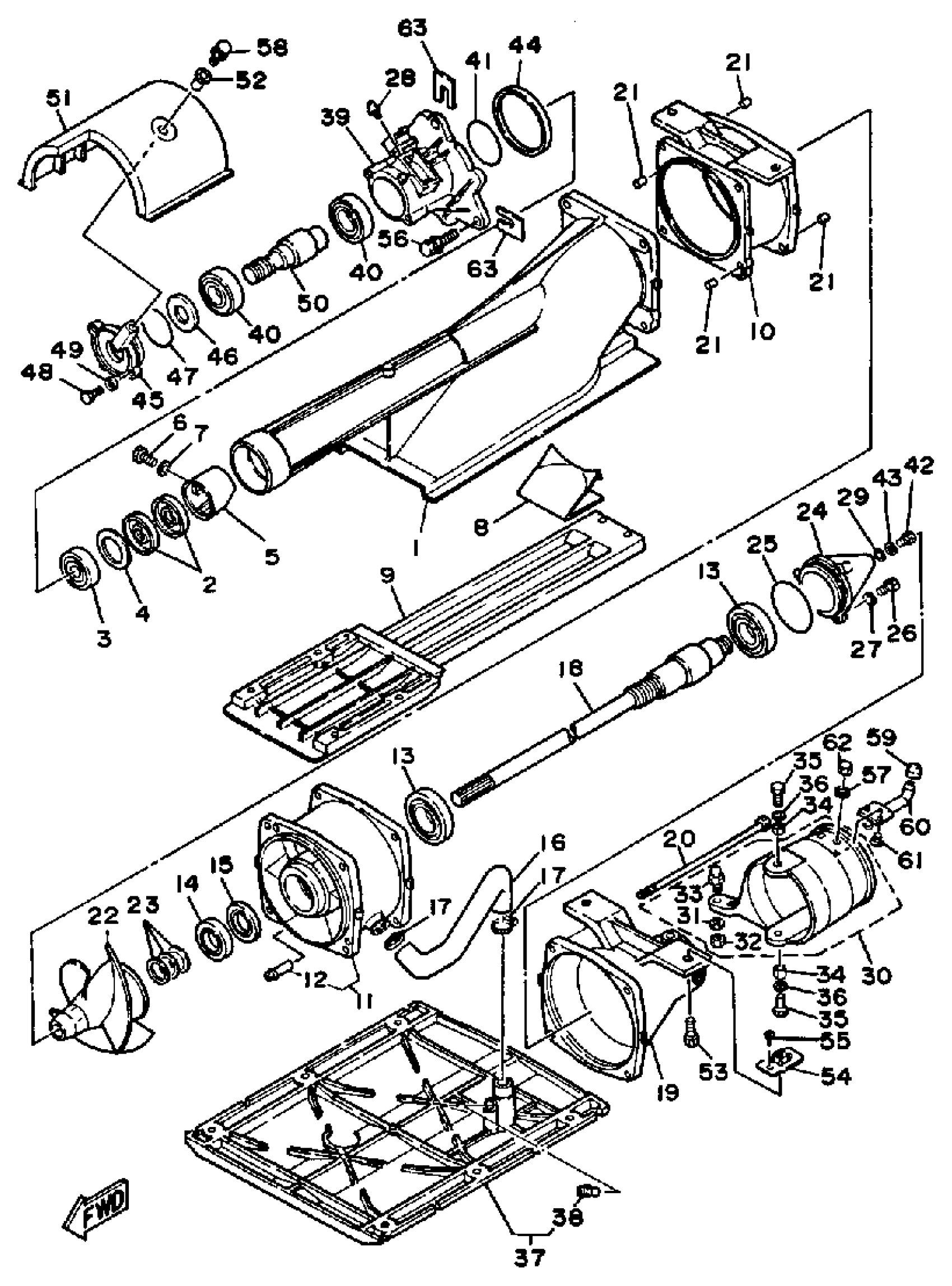

1989 Yamaha Wave Jammer (WJ500F) Jet Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DUCT, INTAKE

6K8-51311-00-94

1
Out of stock

2

. OIL SEAL, S-TYPE

93101-17M31-00

1
Out of stock

3

BRG,R-B 6303 47MM 115G NK

93306-30302-00

1
Out of stock

4

SHIM (T:0.90MM)

676-45567-20-00

1
Out of stock

5

SPACER

6K8-51348-00-8S

1
Out of stock

6

BOLT(7U8)

97080-06020-00

1
Out of stock

7

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

8

PLATE 3

6K8-51347-00-8S

1
Out of stock

9

SCREEN, INTAKE

6K8-51333-00-8S

1
Out of stock

10

HOUSING, IMPELLER

6K8-51312-00-8S

1
Out of stock

11

DUCT, IMPELLER

99999-03840-00

1
Out of stock

12

. PIPE

6K8-51385-00-00

1
Out of stock

13

BEARING

93306-206U6-00

1
Out of stock

14

. OIL SEAL, SW-TYPE

93103-30M00-00

1
Out of stock

15

. OIL SEAL, S-TYPE

93101-30M32-00

1
Out of stock

16

HOSE, SPLASHER

6K8-51161-00-00

1
Out of stock

17

HOSE CLAMP ASSY

90450-32097-00

1
Out of stock

18

SHAFT, DRIVE

6K8-45511-01-00

1
Out of stock

19

NOZZULE

6K8-51318-00-9M

1
Out of stock

20

BOLT, WITH WASHER

90119-06M33-00

1
Out of stock

21

PIN, DOWEL (614)

93606-12019-00

—
Out of stock

22

IMPELLER

6K8-51321-00-94

1
Out of stock

23

SHIM (T=0.1)

6K8-45567-00-01

1
Out of stock

23

SHIM (T=0.3)

6K8-45567-00-03

1
Out of stock

23

SHIM (T=0.5)

6K8-45567-00-05

1
Out of stock

23

SHIM (T=1.0)

6K8-45567-00-10

1
Out of stock

24

CAP

6K8-51326-00-94

1
Out of stock

25

. O-RING

93210-57M09-00

1
Out of stock

26

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—
Out of stock

27

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

28

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

29

. GASKET

90430-06M03-00

1
Out of stock

30

NOZZLE, JET OUTPUT

6K8-51313-00-00

1
Out of stock

31

WASHER, PLATE

90201-06M02-00

1
Out of stock

32

NUT(650)

95380-06700-00

—
Out of stock

33

. BOLT, JOINT

6R7-42316-00-00

1
Out of stock

34

COLLAR(47X)

90387-060G7-00

—
Out of stock

35

BOLT(7U8)

97080-06020-00

1
Out of stock

36

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

37

PLATE 2

EU0-62731-00-00

1
Out of stock

38

. NIPPLE

6K8-51129-00-00

1
Out of stock

39

HOUSING, BEARING

6K8-45331-02-00

1
Out of stock

40

BEARING (6K8)

93306-205U1-00

—
Out of stock

41

. O-RING

93210-52454-00

1
Out of stock

42

BOLT(GH1)

97080-06012-00

1
Out of stock

43

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

44

SEAL

6K8-45127-00-00

1
Out of stock

45

PLATE

6K8-51332-00-00

1
Out of stock

46

OIL SEAL(6R7)

93101-25M50-00

—
Out of stock

47

. O-RING

93210-46M16-00

1
Out of stock

48

BOLT(7U8)

97080-06020-00

1
Out of stock

49

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

50

HOUSING ASSY KIT

6K8-W5132-02-KT

1
Out of stock

51

COVER

6K8-51381-01-00

1
Out of stock

52

COLLAR

90387-06M60-00

1
Out of stock

53

BOLT

90119-10906-00

1
Out of stock

54

NUT

90179-10919-00

1
Out of stock

55

SCREW, TAPPING (97780-40108-00)

97780-40508-00

1
Out of stock

56

BOLT, WITH WASHER

90119-08907-00

1
Out of stock

57

. WASHER, PLAIN

92990-05200-00

1
Out of stock

58

BOLT, WITH WASHER

90119-06900-00

1
Out of stock

59

CAP, SPOUT

6R8-62695-00-00

1
Out of stock

60

SPOUT

EU0-62693-02-00

1
Out of stock

61

SCREW(617)

98780-05012-00

—
Out of stock

62

.. NUT

95380-05800-00

1
Out of stock

63

SHIM (T=0.3) (EU0-67354-30-03)

EU0-U7354-30-03

1
Out of stock

63

SHIM (T=0.5) (EU0-67354-30-05)

EU0-U7354-30-05

1
Out of stock

63

SHIM (T=1.0) (EU0-67354-30-10)

EU0-U7354-30-10

1
Out of stock
