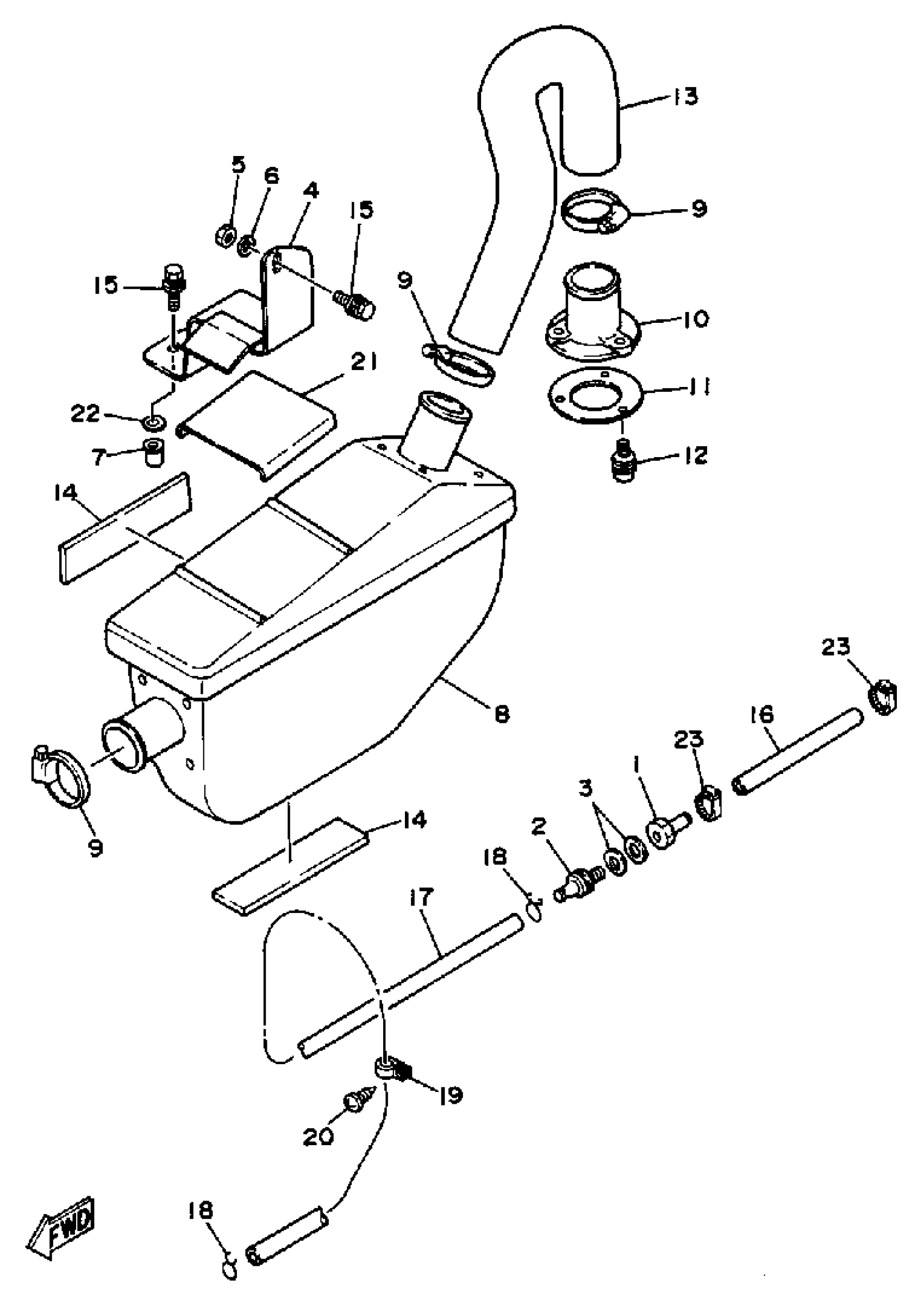

Yamaha WJ500F (WAVE JAMMER) 1989 EXHAUST 2 Diagram

#

Description
Price

1

CONNECTION, THRU-HULL 1/4

90604-80757-00

Unavailable

2

CONNECTION, THRU-HULL 1/4

90604-80758-00

Unavailable

3

GASKET

90430-13909-00

Unavailable

4

BRACKET, WATER LOCK

EW3-67557-00-00

Unavailable

5

NUT, SELF-LOCKING

95720-06300-00

Unavailable

6

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

7

NUT, POP

90179-06922-00

Unavailable

8

WATER LOCK

EW3-67550-01-00

Unavailable

9

BAND, HOSE 52

90601-15272-00

Unavailable

10

THRU-HULL

EW3-67565-00-00

Unavailable

11

PACKING

EU0-67525-01-00

Unavailable

12

BOLT, WITH WASHER (EW3)

90119-05912-00

Unavailable

12

SCREW, WITH WASHER

90159-05900-00

Unavailable

13

HOSE

EW3-67555-00-00

Unavailable

14

MAT

EW3-67593-00-00

Unavailable

15

BOLT,WITH WASHER

90119-06940-00

Unavailable

16

HOSE

90445-13M04-00

Unavailable

17

HOSE

90445-13M05-00

Unavailable

18

. CLIP

90467-12M11-00

Unavailable

19

CLIP, NYLON 17

90600-91728-00

Unavailable

20

SCREW, PANHEAD (97701-50515-00)

90149-059U1-00

Unavailable

21

MAT

EW3-67593-30-00

Unavailable

22

WASHER

90201-09924-00

Unavailable

23

CLAMP

90465-10098-00

Unavailable
