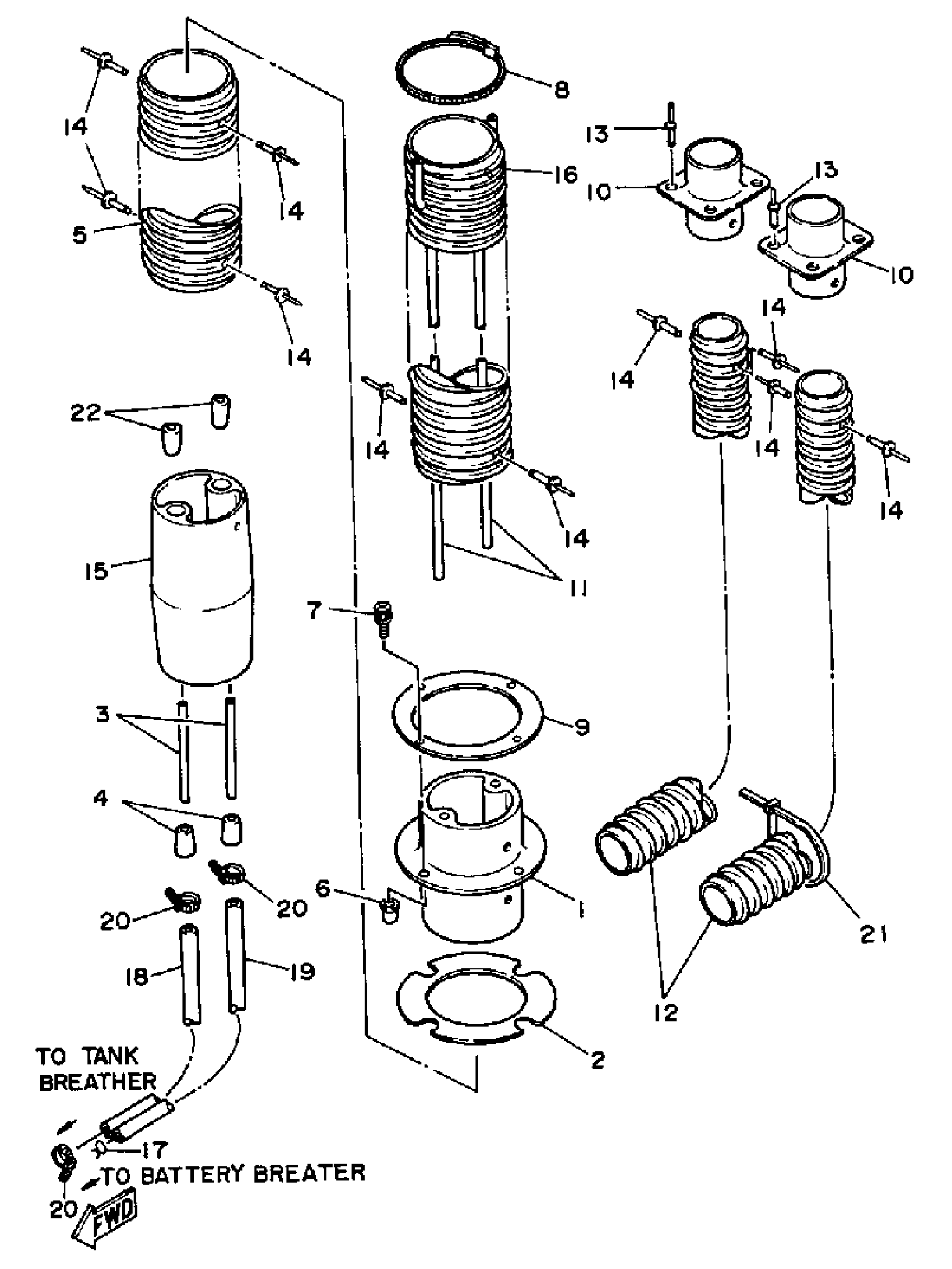

Yamaha WJ500D (WAVE JAMMER) 1990 VENTILATION Diagram

#

Description
Price

1

BASE, AIR INTAKE

EW3-62127-01-00

Unavailable

2

PACKING

EW3-62157-00-00

Unavailable

3

PIPE, VENTILATION

EW3-62149-00-00

Unavailable

4

CAP

EU0-62155-00-00

Unavailable

5

HOSE, FLEXIBLE

90669-13005-00

Unavailable

6

NUT(1KT)

90179-05523-00

$8.49

7

SCREW, WITH WASHER

90159-05900-00

Unavailable

8

BAND

90601-20008-00

Unavailable

9

PLATE, AIR INTAKE

EW3-62111-00-00

Unavailable

10

OUTLET, VENTILATOR

EW3-62139-00-00

Unavailable

11

PIPE, VENT

EW3-62149-60-00

Unavailable

12

PIPE, VENT (90669-14005)

EW3-62149-50-00

Unavailable

13

RIVET, BLIND

90267-40006-00

Unavailable

14

RIVET, BLIND

90267-409U3-00

Unavailable

15

BASE, AIR INTAKE

EW3-62127-30-00

Unavailable

16

PIPE, VENT 3

EW3-62149-40-00

Unavailable

17

CLIP

90467-08M10-00

Unavailable

18

HOSE

EW3-67856-30-00

Unavailable

19

HOSE

EW3-67856-40-00

Unavailable

20

CLAMP

90465-10098-00

Unavailable

21

BAND

90601-20008-00

Unavailable

22

CAP

EW3-62155-30-00

Unavailable
