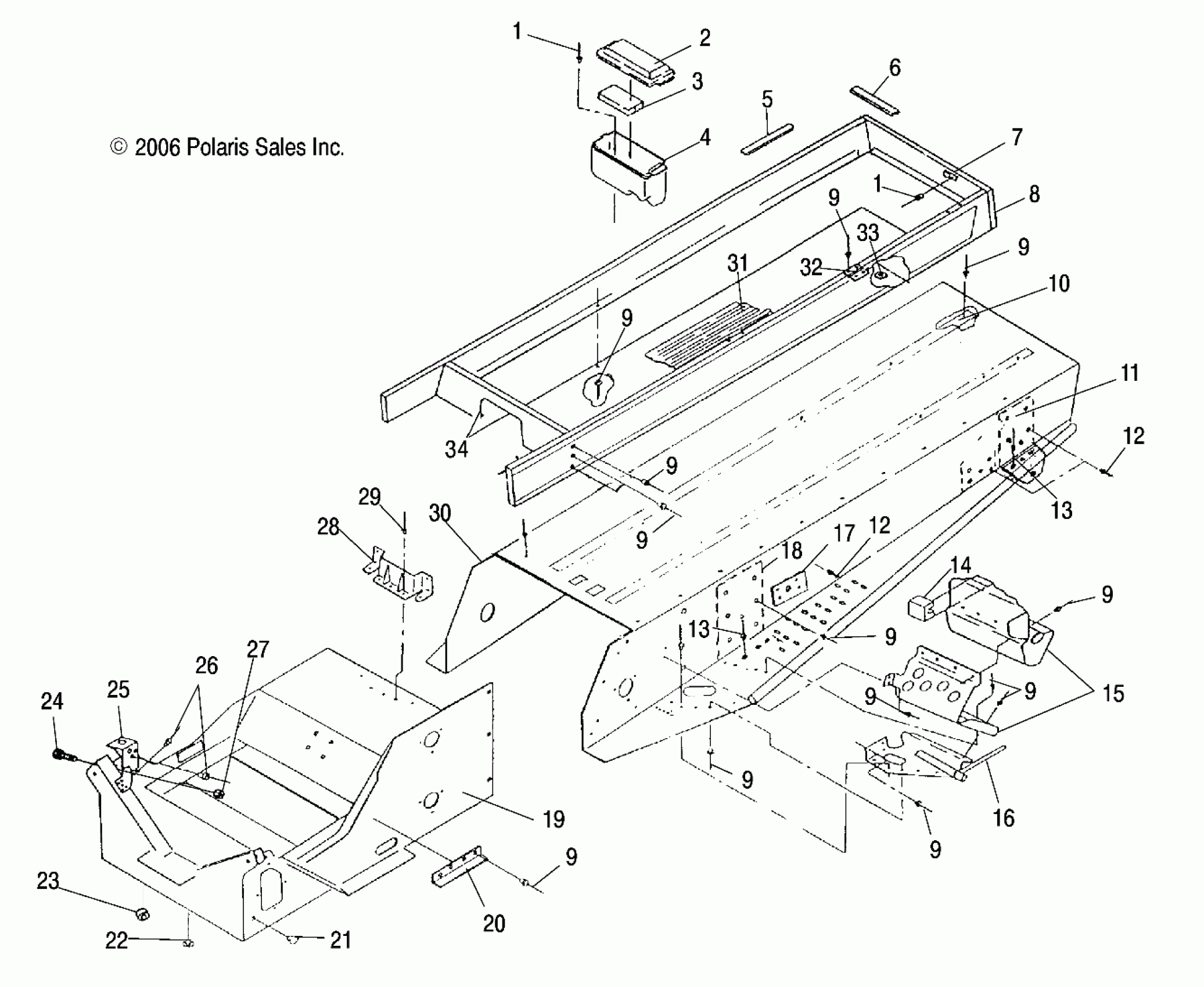

Polaris WIDETRAK LX - S07SU4BS/BE TUNNEL - S07SU4BS/BE (49SNOWTUNNEL07WIDE) Diagram

#

Description
Price

1

Rivet, Pop

7621432

$1.49

1

Rivet, Pop

7621432

$1.49

2

COVER, TOOL BOX

5430719

$28.32

3

FOAM, TOOL BOX

5811051

Unavailable

4

BOX, TOOL

5430716

$11.99

5

SEAL, RISER, SEAT

5410562

$20.22

6

SEAL, RISER, SEAT, SHORT

5410563

$7.73

7

Clip, Half

7080393

$3.19

8

Asm., Riser, Seat

1011947-067

$196.83

9

RIVET-3/16-.090-.290

7661637

Unavailable

9

RIVET-3/16-.090-.290

7661637

Unavailable

9

RIVET-3/16-.090-.290

7661637

Unavailable

9

RIVET-3/16-.090-.290

7661637

Unavailable

9

RIVET-3/16-.090-.290

7661637

Unavailable

9

RIVET-3/16-.090-.290

7661637

Unavailable

9

RIVET-3/16-.090-.290

7661637

Unavailable

9

RIVET-3/16-.090-.290

7661637

Unavailable

9

RIVET-3/16-.090-.290

7661637

Unavailable

9

RIVET-3/16-.090-.290

7661637

Unavailable

9

RIVET-3/16-.090-.290

7661637

Unavailable

9

RIVET-3/16-.090-.290

7661637

Unavailable

10

Strip, Wear

5510233

$23.99

11

Pad, Suspension, Heavy Duty, LH

1012387-067

$45.59

11

Pad, Suspension, Heavy Duty, RH

1012388-067

$45.59

12

Rivet

7661837

Unavailable

12

Rivet

7661837

Unavailable

13

Rivet

7661844

$1.49

14

EXTRUSION, CLUTCH GUARD

5521238

$6.46

15

Asm., Footrest, LH

1012734

$206.41

15

Asm., Footrest, RH

1013545

Unavailable

16

Support, Trailing Arm, LH

1012905-067

$189.99

16

Support, Trailing Arm, RH

1012906-067

$189.99

17

Plate, Tunnel, Carrier

5211220-067

Unavailable

18

Bracket, Suspension, Front

5211323-067

$29.99

19

Bulkhead

1012728

Unavailable

20

Guard, Drive Adaptor

5222857

$12.94

21

PLUG, HOLE

7080416

$5.65

22

PLUG-HOLE

7080398

$4.84

23

Bushing, Open/Close

7080399

$2.39

24

Screw

7512307

$3.99

25

SUPPORT, MUFFLER [See Exhaust System Page, Ref. 19]

-------

Unavailable

26

Rivet

7661130

$1.49

27

Nut, Flange

7542321

$1.49

28

Bracket, Gas Tank

5221932-067

Unavailable

29

RIVET

7621330

$1.49

30

Asm., Tunnel [Incl. 9-11,18]

1012402

$497.60

31

Pad, Protector

5813008

$37.19

32

Hinge, Flat

7020023

$4.19

33

Grommet

5410437

$2.39

34

Trim, Edge

5521131

Unavailable
