Description

Price

1

Screw

7517435

$14.99

2

Washer, Spring Lock

7552603

$1.49

3

Washer, Flat

7555893

$1.49

4

Shaft

5134040

$40.46

5

SPRING, SUSPENSION, REAR, RH

7041240-067

$94.99

6

SPACER, SPRING

5521277

$23.99

6

SPACER, SPRING

5521277

$23.99

7

Nut, FLEXLOC

7542402

$6.39

7

Nut, FLEXLOC

7542402

$6.39

8

Arm, Torque, Rear

1541979-067

Unavailable

9

BOLT

7515317

$4.79

10

NUT, SHOULDER

7542326

$19.99

11

NUT, LOCK

7542302

$3.99

12

SPRING, SUSPENSION, REAR, LH

7041239-067

$130.70

13

BOLT, EYE

7080221

$9.59

13

BOLT, EYE

7080221

$9.59

14

WASHER, FLAT

7555823

$3.99

14

WASHER, FLAT

7555823

$3.99

15

SHAFT, PIVOT

5132239

$74.99

16

ARM, PIVOT, REAR

1540652-067

$74.99

17

FITTING-LUBRICATION 1/4-28

7080424

$4.79

17

FITTING-LUBRICATION 1/4-28

7080424

$4.79

18

Bolt

7512329

$3.99

19

Retainer, Spring Coil, Top

5220225

$10.39

20

Spring, Compression

7041261-067

$164.99

21

SLEEVE, SPRING PROTECTOR

5431032

$31.99

22

CAM, ADJUSTING, SPRING

5630334

$32.37

23

SHOCK, REAR TRACK

7042309

$319.99

24

BUSHING

5430537

$3.99

25

NUT-5/16-18 NYLOK-Y

7542324

$1.49

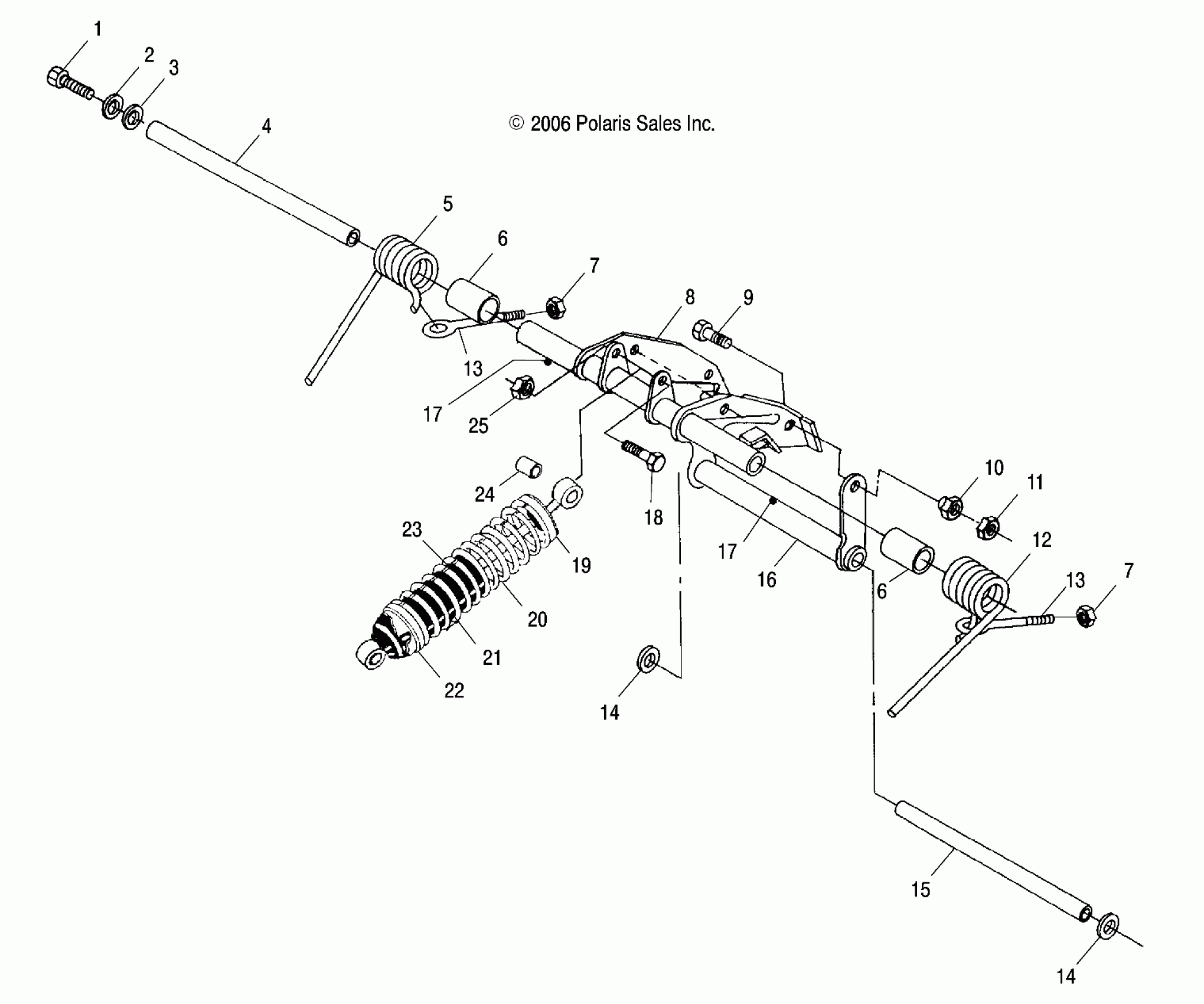

Polaris WIDETRAK LX - S07SU4BS/BE TORQUE ARM, REAR - S07SU4BS/BE (49SNOWTORQUEREAR07WIDE) Diagram

Screw

Washer, Spring Lock

Washer, Flat

Shaft

SPRING, SUSPENSION, REAR, RH

SPACER, SPRING

SPACER, SPRING

Nut, FLEXLOC

Nut, FLEXLOC

Arm, Torque, Rear

BOLT

NUT, SHOULDER

NUT, LOCK

SPRING, SUSPENSION, REAR, LH

BOLT, EYE

BOLT, EYE

WASHER, FLAT

WASHER, FLAT

SHAFT, PIVOT

ARM, PIVOT, REAR

FITTING-LUBRICATION 1/4-28

FITTING-LUBRICATION 1/4-28

Bolt

Retainer, Spring Coil, Top

Spring, Compression

SLEEVE, SPRING PROTECTOR

CAM, ADJUSTING, SPRING

SHOCK, REAR TRACK

BUSHING

NUT-5/16-18 NYLOK-Y
