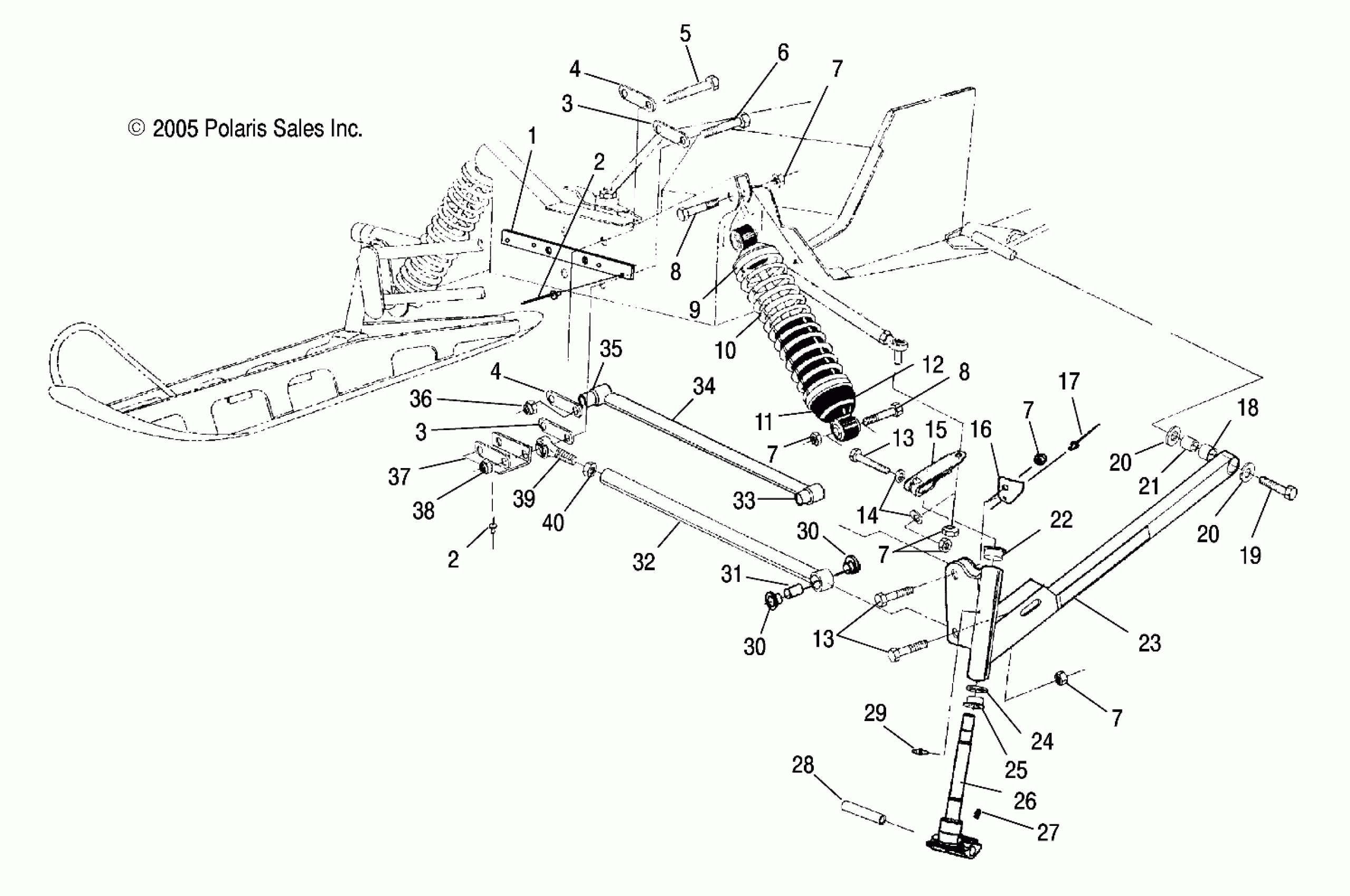

Polaris WIDETRAK LX - S07SU4BS/BE SUSPENSION, FRONT - S07SU4BS/BE (4997559755A13) Diagram

#

Description
Price

1

Brace, Bulkhead

5240349-067

$6.63

2

RIVET-3/16-.090-.290

7661637

$1.49

2

RIVET-3/16-.090-.290

7661637

$1.49

3

Strap, Spacer, Bottom

5211345

$12.99

3

Strap, Spacer, Bottom

5211345

$12.99

4

Strap, Spacer, Top

5211344

$7.27

4

Strap, Spacer, Top

5211344

$7.27

5

Screw

7512582

$8.79

6

BOLT

7512678

$19.99

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

8

Screw

7515415

$1.49

8

Screw

7515415

$1.49

8

Screw

7515415

$1.49

9

Retainer, Spring Coil, Top

5220225

$10.39

10

Spring, Compression, Silver

7041261-385

$164.99

11

RETAINER, SPRING

5210953

$6.39

12

SHOCK, IFS

7041535

$214.99

13

SCREW

7517583

$4.35

13

SCREW

7517583

$4.35

14

WSHR-.813X.406X.105-Y

7555832

$2.39

15

Arm, Steering, Black

5220326-067

Unavailable

16

Stop, Steering, LH, Black

5241569-067

$7.27

16

Stop, Steering, RH, Black

5241570-067

$7.27

17

Rivet

7661130

$1.49

18

PIVOT, RUBBER

5410872

$10.99

19

Screw

7512557

$7.60

20

WASHER

7555721

$1.49

20

WASHER

7555721

$1.49

21

BUSHING

5010310

$9.70

22

BUSHING, FLANGE

3573909

$2.39

23

Asm., Trailing Arm, LH [Incl. 18,21]

1822485

$281.49

23

Asm., Trailing Arm, RH [Incl. 18,21]

1822486

Unavailable

24

Bushing

7556509

$1.59

25

BUSHING, FLANGED

3574208

$3.19

26

Shaft, Spindle, Trailing

6230102-067

$294.99

27

Fitting, Lubrication

7080306

$3.19

28

Bushing

5010158

$19.99

29

Fitting, Lubrication

7080433

$1.49

30

BUSHING

5010127

$7.99

30

BUSHING

5010127

$7.99

31

BUSHING, PIVOT, RADIUS ROD, OUTER

5431486

$3.19

32

Rod, Radius, Lower, Black

1822444-067

$60.70

33

BUSHING, RADIUS ROD PIVOT

5411099

$11.99

34

Asm., Rod, Radius, Upper, Fixed, Black [Incl. 33,35]

1822420-067

$119.99

35

BUSHING, PIVOT

5411095

$15.99

36

Nut, FLEXLOC

7542503

$10.39

37

Bracket, Radius Rod, Bottom

5242578

$44.99

38

Nut, FLEXLOC

7542703

Unavailable

39

Rod End [RH]

7061071

$48.56

40

Nut, Jam

7542711

$2.39
