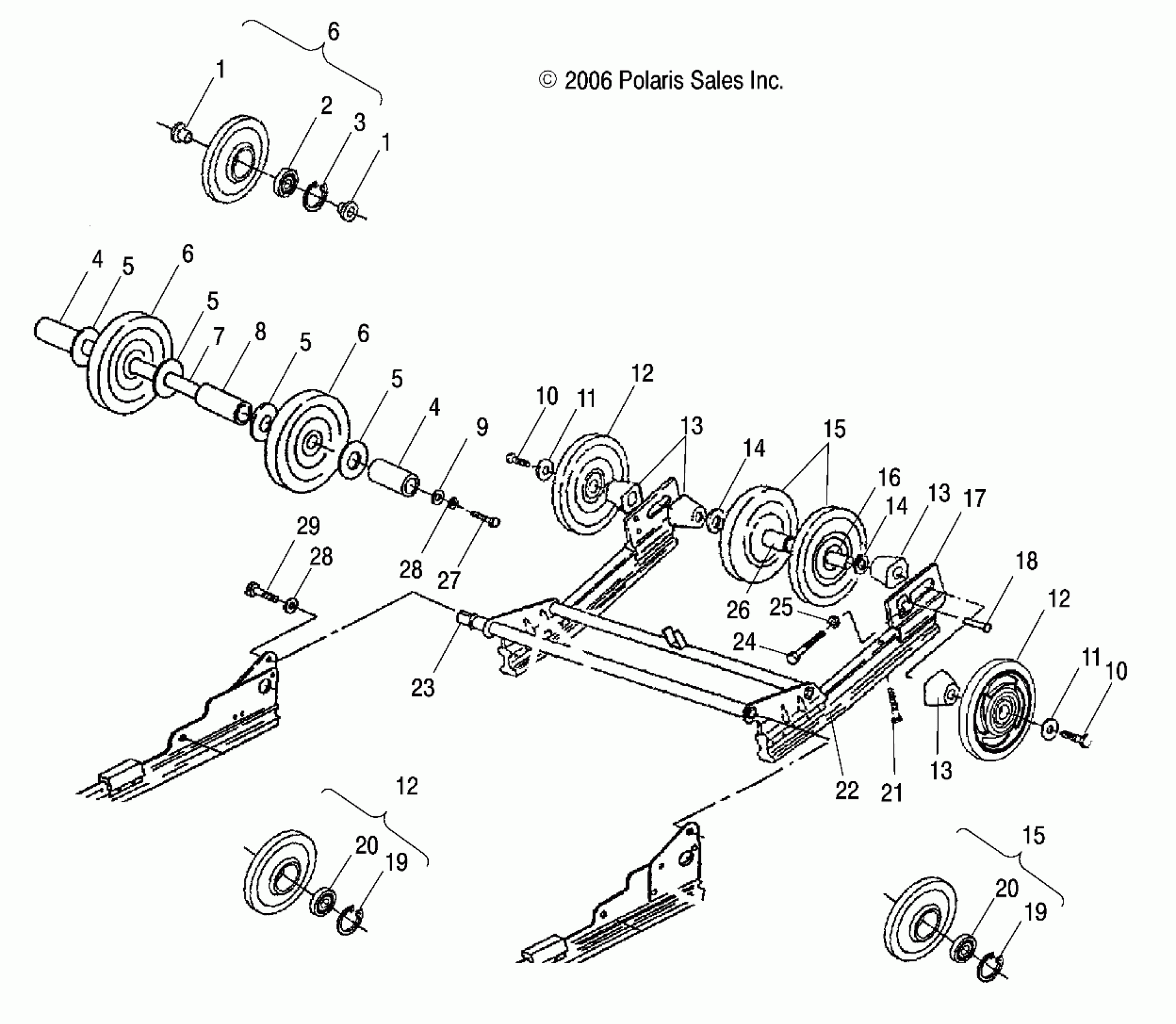

Polaris WIDETRAK LX - S07SU4BS/BE SUSPENSION EXTENSION - S07SU4BS/BE (49SNOWSUSPEXT07WIDE) Diagram

#

Description
Price

1

INSERT, WHEEL, LARGE

5431420

Unavailable

1

INSERT, WHEEL, SMALL

5430723

$3.99

1

INSERT, WHEEL, LARGE

5431420

Unavailable

1

INSERT, WHEEL, SMALL

5430723

$3.99

2

BEARING [1 PER WHEEL]

3514303

$11.99

3

RET.RING-TRUARC [1 PER WHEEL]

7718407

$4.79

4

SPACER

5333019-067

$15.99

4

SPACER

5333019-067

$15.99

5

Washer, Flat

7555726

$1.59

5

Washer, Flat

7555726

$1.59

5

Washer, Flat

7555726

$1.59

5

Washer, Flat

7555726

$1.59

6

Asm., Wheel, Carrier [Incl. 1-3]

1543021

Unavailable

6

Asm., Wheel, Carrier [Incl. 1-3]

1543021

Unavailable

6

Asm., Wheel, Carrier [Incl. 1-3]

1543021

Unavailable

7

Shaft, Mounting, Carrier

5020836

$32.37

8

SPACER

5333020-067

$24.99

9

Washer, Flat

7555893

$1.49

10

BOLT

7517731

$1.49

10

BOLT

7517731

$1.49

11

WASHER, BELLE

7556130

$6.39

11

WASHER, BELLE

7556130

$6.39

12

Asm., Idler Wheel, Scrolled

1594083-244

$48.56

12

Asm., Idler Wheel, Scrolled

1594083-244

$48.56

12

Asm., Idler Wheel, Scrolled

1594083-244

$48.56

13

SPACER-IDLER

5432535

$11.99

13

SPACER-IDLER

5432535

$11.99

13

SPACER-IDLER

5432535

$11.99

14

BUSHING

7555918

$1.59

14

BUSHING

7555918

$1.59

15

ASM., WHEEL

1594087

$72.84

15

ASM., WHEEL

1594087

$72.84

16

SHAFT, IDLER

5020879

$43.99

17

BLOCK, IDLER BOLT ADJUST

5130530

$32.37

18

RIVET

7621501

$2.39

19

RING-RETAINING

7710444

$8.79

19

RING-RETAINING

7710444

$8.79

20

Bearing

3514012

Unavailable

20

Bearing

3514012

Unavailable

21

Screw

7512225

$3.99

22

HI-FAX, WHITE

5521452

$40.46

22

Asm., Rail, Swing Arm, Riveted [Incl. 17,18]

1541133

Unavailable

23

SHAFT, PIVOT ARM

5020725

$34.99

24

SCREW

7515459

$5.59

25

NUT

7542404

$1.59

26

SPACER, IDLER

5333523

$11.99

27

Screw

7517435

$14.99

28

Washer, Spring Lock

7552603

$1.49

28

Washer, Spring Lock

7552603

$1.49

29

Screw

7517247

$3.19
