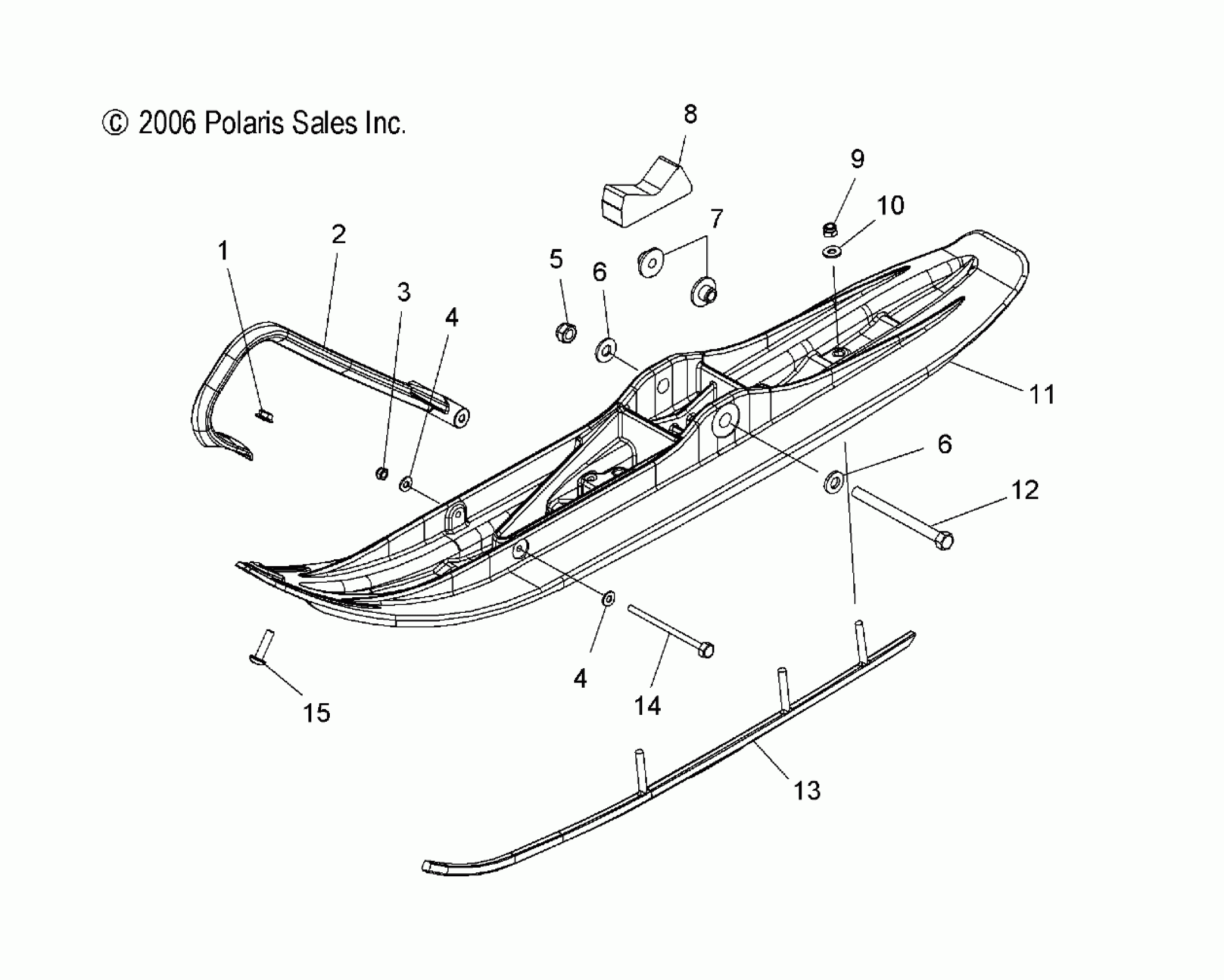

Polaris WIDETRAK LX - S07SU4BS/BE SKI - S07SU4BS/BE (49SNOWSKIASM07WIDE) Diagram

#

Description
Price

1

Nut, Flange

7542321

$1.49

2

Toe, Ski, Plastic, Black

5435681-070

$40.46

3

Nut, Nylok

7542122

$1.49

4

Washer, Flat

7558301

$1.49

4

Washer, Flat

7558301

$1.49

5

Nut, Nylok

7542439

$1.49

6

WASHER, BELLE

7556130

$6.39

6

WASHER, BELLE

7556130

$6.39

7

Bushing

5132637

$19.99

8

Stop, Ski, Rubber

5412018

$24.27

9

NUT-5/16-18 NYLOK-Y

7542324

$1.49

10

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

11

Asm., Ski, RH, Black [Incl. 7]

1822967-070

$162.70

11

Asm., Ski, LH, Black [Incl. 7]

1822966-070

$158.73

12

Screw

7517968

$9.59

13

Kit, Skag, 4-Inch, 60 Degree

2875987

$59.99

14

BOLT

7518047

$5.59

15

Screw

7516317

$3.19
