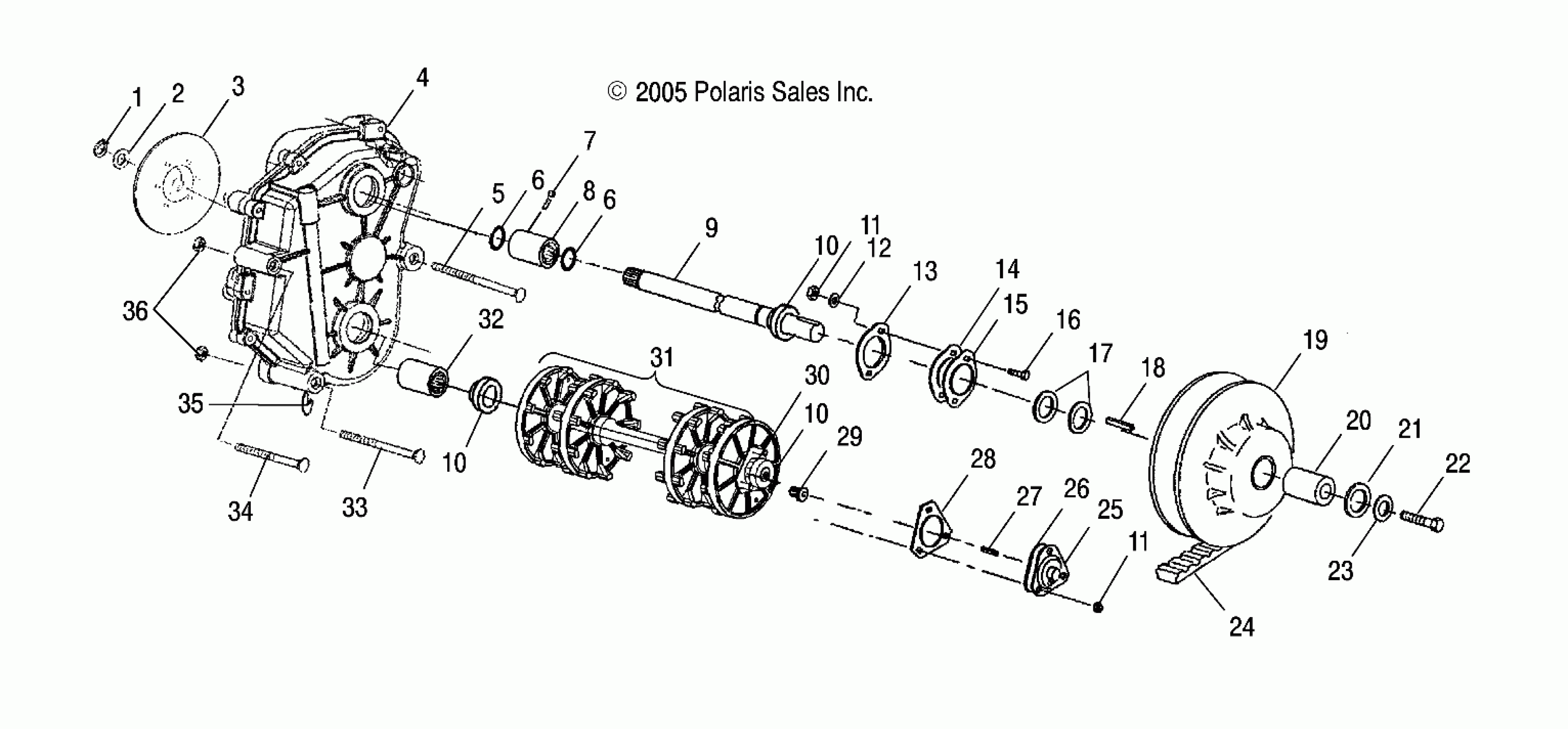

Polaris WIDETRAK LX - S07SU4BS/BE SHAFT, DRIVE - S07SU4BS/BE (4997559755B11) Diagram

#

Description
Price

1

Ring, Retaining

7713401

Unavailable

2

BUSHING

7555922

$6.39

3

Asm., Brake Disc

1910217

Unavailable

4

ASM., GEARCASE [See Gearcase Page for Details]

-------

Unavailable

5

Bolt, Carriage

7517291

$15.99

6

O-Ring

5410630

$2.02

6

O-Ring

5410630

$2.02

7

SCREW

7517446

$8.79

8

FITTING, LUBRICATION

7080437

$14.21

8

ASM., COUPLER W/GREASE [INCL. FITTING & SCREW]

1332219

$113.32

9

Asm., Jackshaft [Incl. 10]

1332256

$474.99

10

BEARING

3514525

$31.99

10

BEARING

3514525

$31.99

10

BEARING

3514525

$31.99

11

NUT-5/16-18 NYLOK-Y

7542324

$1.49

11

NUT-5/16-18 NYLOK-Y

7542324

$1.49

12

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

13

FLANGETTE, 2 BOLT

5222393

Unavailable

14

GASKET, JACKSHAFT, 2-BOLT

5830135

$2.83

15

FLANGETTE W/GREASE GROOVE, 2-BOLT

5222647

$24.27

16

Bolt, Carriage

7512377

$4.79

17

Bushing

7556509

$1.59

18

KEY

7721132

$23.99

19

ASM., DRIVEN CLUTCH [See Clutch, Driven Page for Details]

-------

Unavailable

20

Spacer, Inlet Shaft

5431482

$24.79

21

Washer, Flat

7555806

$1.49

22

SCREW

7515502

$5.59

23

Washer, Spring

7571626

Unavailable

24

BELT, DRIVE

3211070

$114.99

25

Fitting, Lubrication

7080433

$1.49

25

Adaptor w/Fitting, Drive

3280116

$101.17

26

Gasket, Drive Adaptor

5830012

$2.41

27

Key, Square, Speedometer

3280017

$13.75

28

FLANGETTE, OFFSET W/HOLE

5243529

$13.75

29

Bushing, Speedometer, Metal

3280019

$11.99

30

ASM., FLANGETTE W/SCREWS

1012945

$114.99

31

Asm., Drive Shaft [Incl.29-31]

1590338

$605.14

32

FITTING, LUBRICATION

7080437

$14.21

32

ASM., COUPLER W/GREASE ZERK

1332260

$198.48

33

Bolt, Carriage

7517292

$19.99

34

Bolt, Carriage

7518360

$3.99

35

SHIM, CHAINCASE, .080

5210760

Unavailable

35

SHIM, CHAINCASE, .063

5210759

Unavailable

35

SHIM, CHAINCASE, .020

5210764

Unavailable

35

SHIM, CHAINCASE, .010

5211065

Unavailable

36

Nut, Flange

7542423

$3.99
