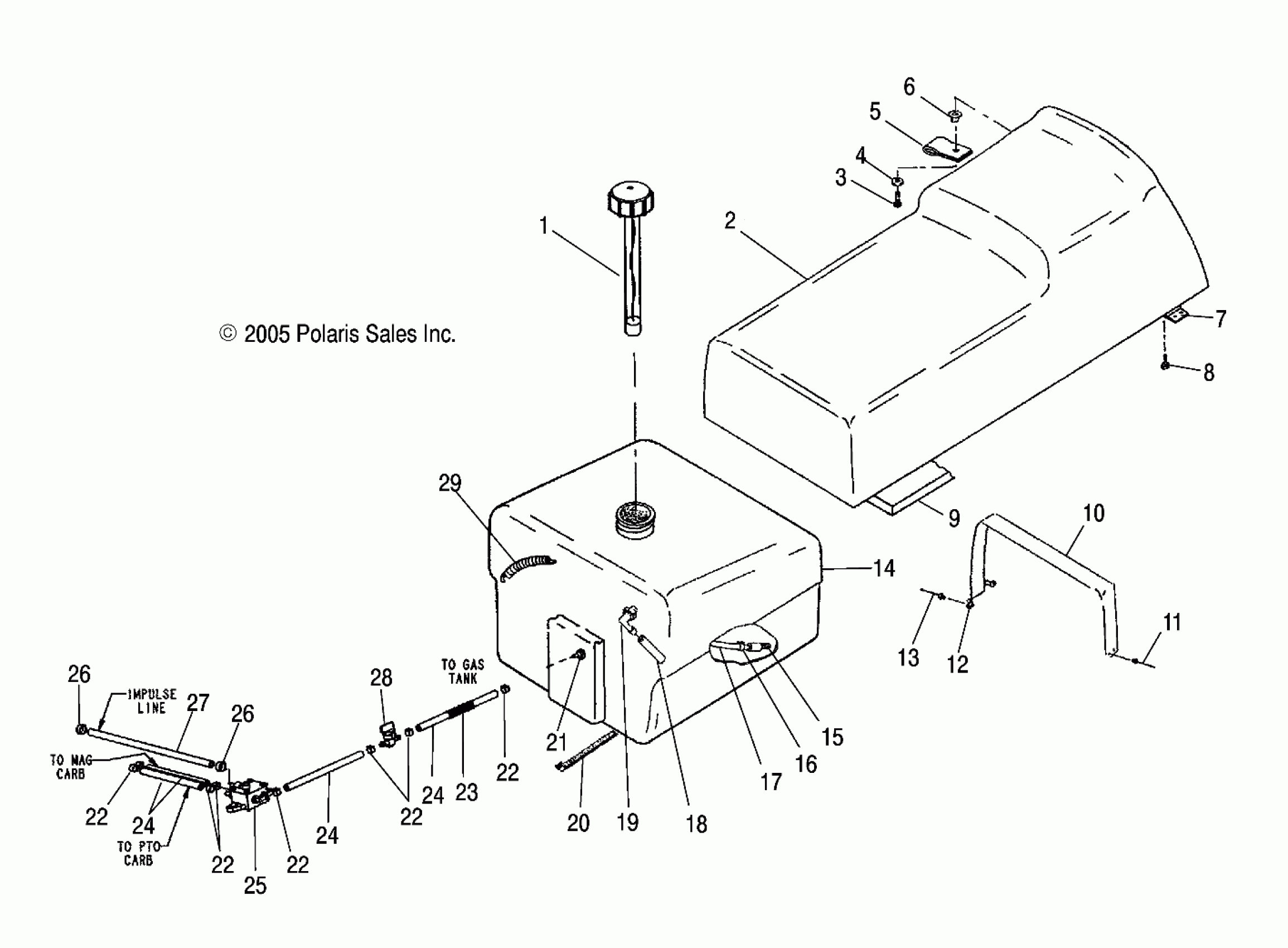

Polaris WIDETRAK LX - S07SU4BS/BE SEAT and GAS TANK - S07SU4BS/BE (4997559755A04) Diagram

#

Description
Price

1

GASKET, GAS CAP

5810513

$8.89

1

CAP W/GAUGE, GAS

2511246

$44.51

2

Asm., Seat, 2-Up [Incl. 7]

2683534

Unavailable

2

Asm., Cover, Seat, 2-Up

2683535

Unavailable

3

Bolt

7511989

Unavailable

4

Washer, Wrought

7558203

$3.19

5

Pull, Seat

5810464

$12.30

6

Nut, Tee

7541930

$2.06

7

HINGE, FLAT [See Tunnel Page, Ref. 33]

-------

Unavailable

8

Screw

7511990

Unavailable

9

Pad, Bottom, Seat

5811339

$35.51

10

Asm., Belt, Seat [Incl. 12]

2690086

Unavailable

11

RIVET

7621467

$1.49

12

FOOTMAN LOOP [Supplied w/Strap][See Ref. 10]

-------

Unavailable

13

RIVET-3/16-.090-.290

7661637

$1.49

14

Asm., Tank, Fuel [Incl. 15-17,19,21]

2520180

Unavailable

15

PICK-UP W/FILTER, FUEL

7052243

Unavailable

16

RING, COMPRESSION

7080402

$1.60

17

LINE, FUEL

8350019-600

Unavailable

18

LINE, FUEL

8450061-600

Unavailable

19

Fitting, 90 Degree

7052095

$4.79

20

CABLE TIE, RELEASABLE

7080804

$3.22

21

FITTING, OUTLET, DOUBLE

7052023

$24.99

22

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

22

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

22

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

22

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

22

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

23

Tubing, Convoluted

4010051-15

Unavailable

24

Line, Fuel

8350018-600

Unavailable

24

Line, Fuel

8350018-600

Unavailable

24

Line, Fuel

8350018-600

Unavailable

25

PUMP, FUEL

-------

Unavailable

26

HOSE CLAMP, RED

7080003

$1.49

26

HOSE CLAMP, RED

7080003

$1.49

27

Line, Fuel

8450040-600

Unavailable

28

VALVE, FUEL

7052248

$24.27

29

SPRING, TANK FRONT

7042020

$13.75
