Description

Price

1

Asm., Backrest

2683536

$214.39

1

Asm., Cover, Backrest

2683537

$99.19

2

Shield, Taillight

5222868-067

$20.63

3

Pad

5810317

Unavailable

4

RIVET-3/16-.090-.290

7661637

Unavailable

4

RIVET-3/16-.090-.290

7661637

Unavailable

4

RIVET-3/16-.090-.290

7661637

Unavailable

4

RIVET-3/16-.090-.290

7661637

Unavailable

4

RIVET-3/16-.090-.290

7661637

Unavailable

5

Rack

1012076-067

$258.99

6

Rivet

7621462

$1.49

7

Asm., Taillight [Incl. 8-12]

2410370

$113.32

8

Backing, Taillight

4032047

Unavailable

9

Gasket, Taillight

4032045

$4.03

10

Lens, Taillight

4032046

$32.37

11

Screw, Taillight

4032029

$4.79

12

Bulb, Taillight, Extreme Duty

4030063

$24.99

13

Hitch

1011624-067

Unavailable

13

Kit, Hitch [Incl. 14-18]

2870708

Unavailable

14

PIN, CLEVIS

7662209

$9.59

15

Hitch

1011518-067

$31.75

16

PIN, COTTER

7661401

$1.49

17

Washer, Spring Lock

7552603

$1.49

17

Washer, Spring Lock

7552603

$1.49

18

Screw

7512490

$3.99

19

Extension, Tunnel Rear

5240516-067

$81.17

20

ASM., REFLECTOR, RED

2670133

$5.75

20

ASM., REFLECTOR, RED

2670133

$5.75

20

ASM., REFLECTOR, RED

2670133

$5.75

21

Panel, Tunnel Back

5240530-067

$45.59

22

FLAP, SNOW

5812320

$97.13

23

WASHER

7556044

$3.99

24

RIVET

7621418

$1.49

25

Strip, Wear, Extension

5222448

$17.46

26

Rivet

7621449

$3.19

27

BRACKET, HARNESS PROTECTOR

5222323

$24.27

28

PROTECTOR, BED

5410560

$51.99

29

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

30

Washer, Flat

7558301

$1.49

31

Nut, Nylok

7542122

$1.49

32

SCREW

7517377

$4.79

33

Bolt

7515522

$3.99

34

WSHR-.813X.406X.105-Y

7555832

$2.39

35

NUT, ACORN

7542458

$9.59

36

Plug, Tube

5430713

Unavailable

37

Bolt

7515341

Unavailable

38

WASHER, SPRING LOCK

7552901

$1.49

39

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

40

NUT-5/16-18 NYLOK-Y

7542324

$1.49

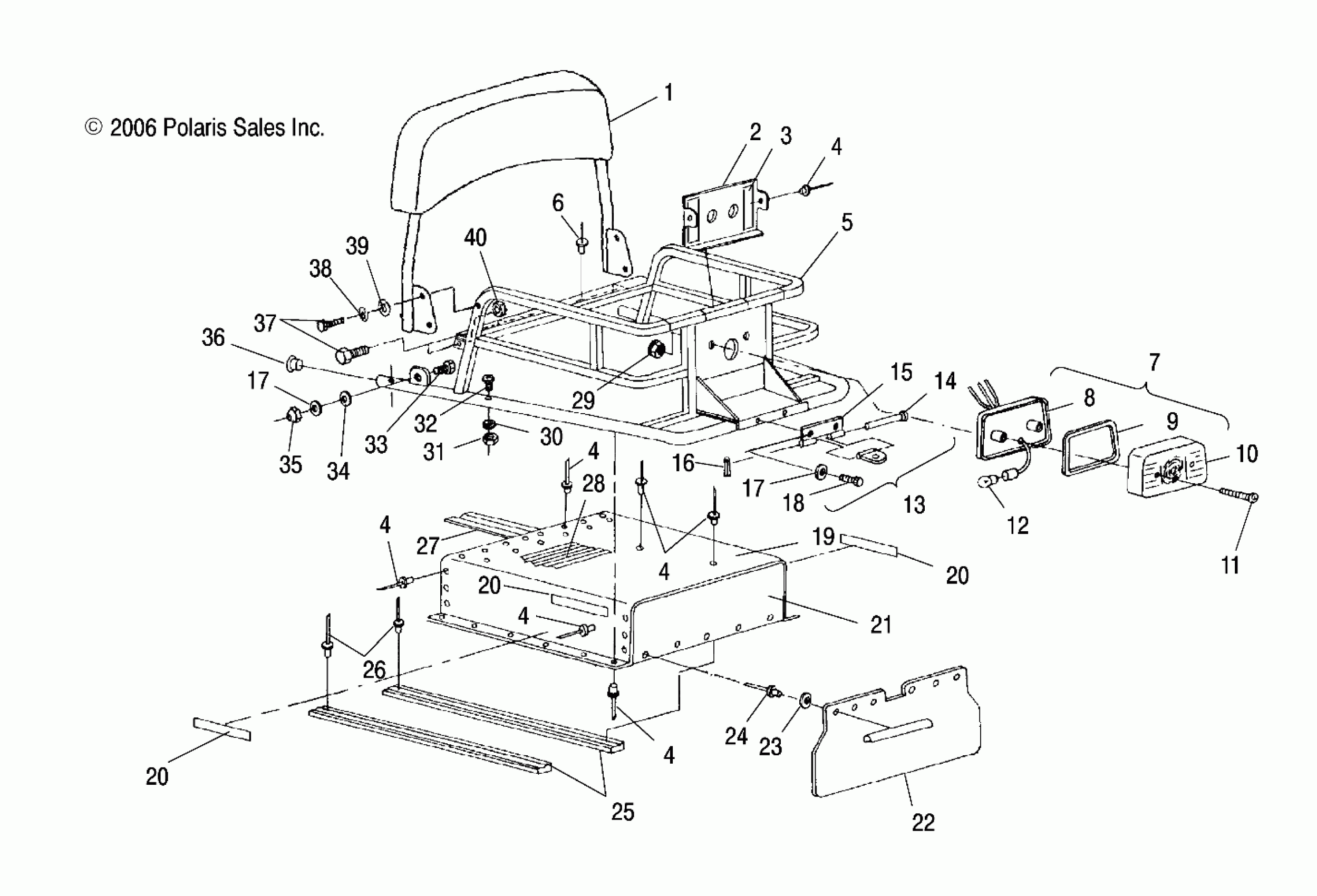

Polaris WIDETRAK LX - S07SU4BS/BE RACK and TUNNEL EXTENSION - S07SU4BS/BE (49SNOWRACK07WIDE) Diagram

Asm., Backrest

Asm., Cover, Backrest

Shield, Taillight

Pad

RIVET-3/16-.090-.290

RIVET-3/16-.090-.290

RIVET-3/16-.090-.290

RIVET-3/16-.090-.290

RIVET-3/16-.090-.290

Rack

Rivet

Asm., Taillight [Incl. 8-12]

Backing, Taillight

Gasket, Taillight

Lens, Taillight

Screw, Taillight

Bulb, Taillight, Extreme Duty

Hitch

Kit, Hitch [Incl. 14-18]

PIN, CLEVIS

Hitch

PIN, COTTER

Washer, Spring Lock

Washer, Spring Lock

Screw

Extension, Tunnel Rear

ASM., REFLECTOR, RED

ASM., REFLECTOR, RED

ASM., REFLECTOR, RED

Panel, Tunnel Back

FLAP, SNOW

WASHER

RIVET

Strip, Wear, Extension

Rivet

BRACKET, HARNESS PROTECTOR

PROTECTOR, BED

SPEED NUT-WASHER, HEAD-1/4

Washer, Flat

Nut, Nylok

SCREW

Bolt

WSHR-.813X.406X.105-Y

NUT, ACORN

Plug, Tube

Bolt

WASHER, SPRING LOCK

WSHR-FL-.312X.734X.065-Y

NUT-5/16-18 NYLOK-Y
