Description

Price

-

Asm., Gearcase, Basic [Incl. 1-24 and All from Gearcase [1 of 2] page.]

1332463

$1,889.99

1

GEARCASE, RH

3234474

$294.99

2

GEARCASE, LH

3234174

$364.99

3

SHAFT, REVERSE

3233514

$149.99

4

Washer, Thrust

7556430

$4.79

4

Washer, Thrust

7556430

$4.79

5

Sprocket, 25T

3233513

$79.99

6

Bearing, Needle

3514590

$19.99

7

Ring, Retaining

7710606

$2.39

8

DOG, ENGAGEMENT, L/R

3233512

$109.99

9

WASHER, THRUST

7556433

Unavailable

10

GEAR, 39T

3233511

$134.99

11

Bearing, Needle

3514589

$6.39

12

WASHER, THRUST

7556434

$10.39

13

Bearing, Ball

3514304

$15.99

13

Bearing, Ball

3514304

$15.99

14

Ring, Retainer

7710602

$3.19

15

GEAR, 18T

3233515

Unavailable

16

WASHER

7556432

$4.79

17

RING, RETAINING

7710603

$2.39

18

BEARING, BALL

3514594

$6.39

18

BEARING, BALL

3514594

$6.39

19

SPACER

5135972

$7.99

20

SHAFT, OUTPUT

3233521

$179.99

21

Chain

3221113

$124.99

22

Sprocket, 41T, 15T Spline

3233519

$89.03

23

GEAR, 47T

3233518

$159.99

24

SPACER

5135973

$7.99

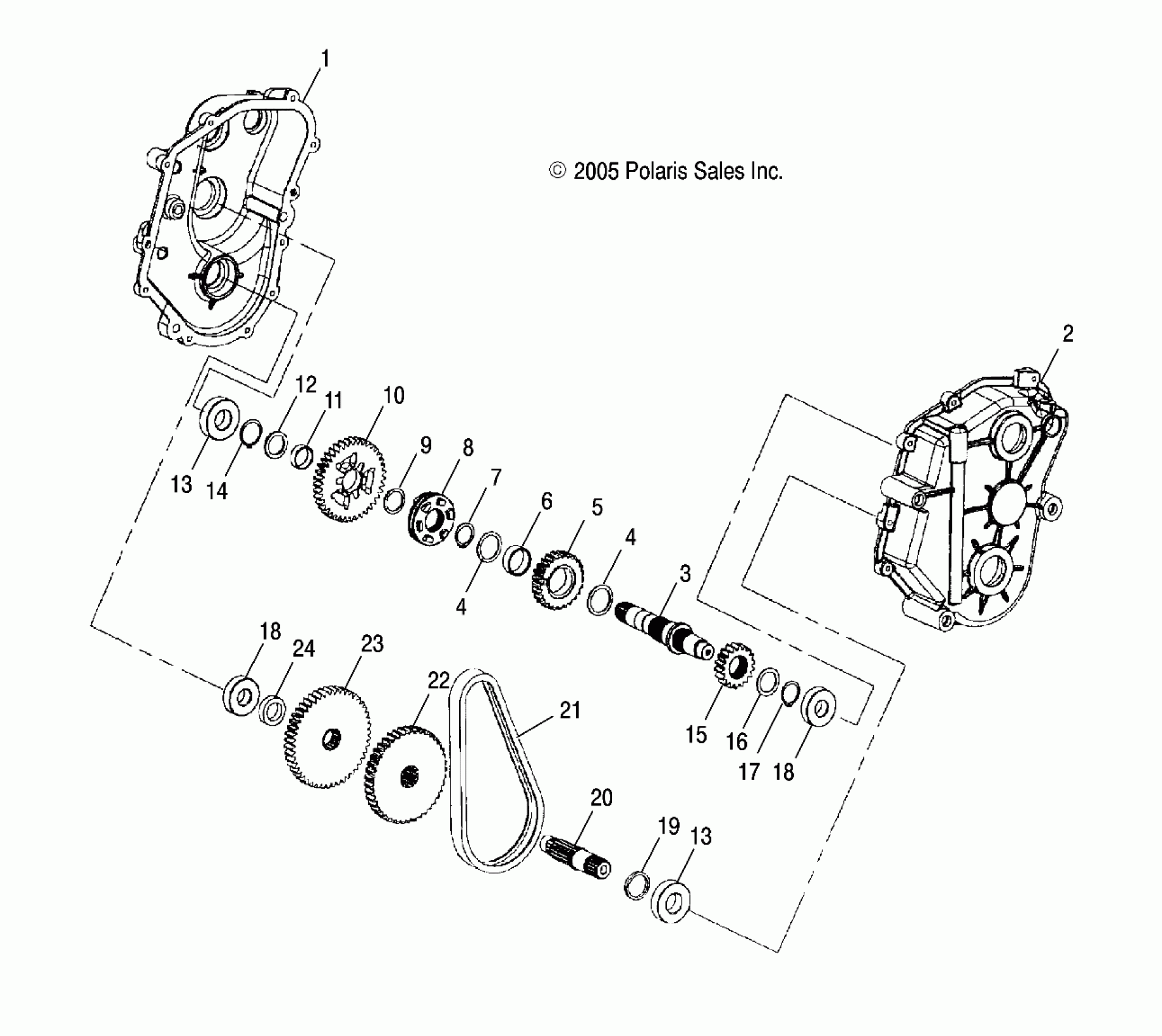

Polaris WIDETRAK LX - S07SU4BS/BE GEARCASE (2 of 2) - S07SU4BS/BE (4997559755B10) Diagram

Asm., Gearcase, Basic [Incl. 1-24 and All from Gearcase [1 of 2] page.]

GEARCASE, RH

GEARCASE, LH

SHAFT, REVERSE

Washer, Thrust

Washer, Thrust

Sprocket, 25T

Bearing, Needle

Ring, Retaining

DOG, ENGAGEMENT, L/R

WASHER, THRUST

GEAR, 39T

Bearing, Needle

WASHER, THRUST

Bearing, Ball

Bearing, Ball

Ring, Retainer

GEAR, 18T

WASHER

RING, RETAINING

BEARING, BALL

BEARING, BALL

SPACER

SHAFT, OUTPUT

Chain

Sprocket, 41T, 15T Spline

GEAR, 47T

SPACER
