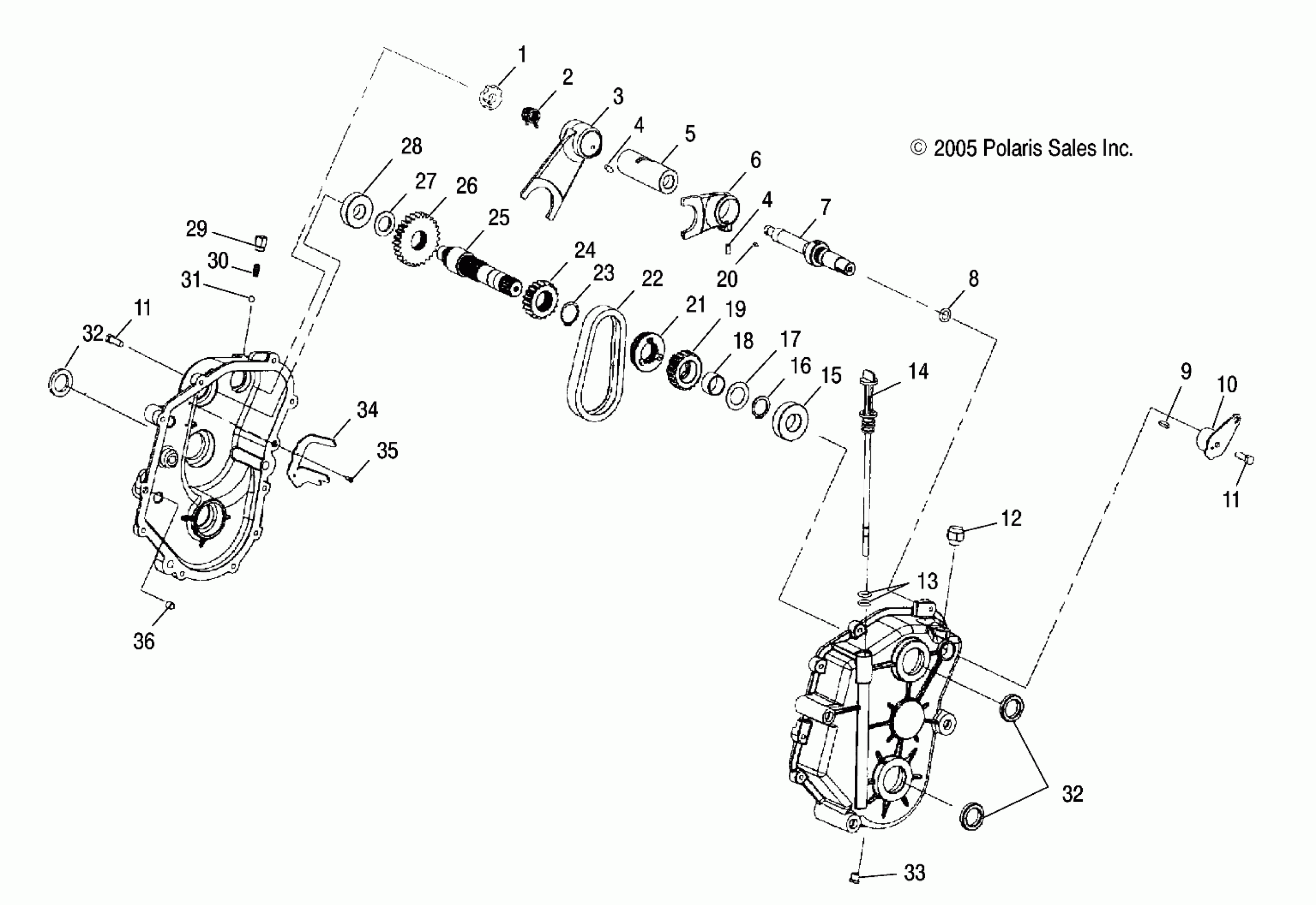

Polaris WIDETRAK LX - S07SU4BS/BE GEARCASE (1 of 2) - S07SU4BS/BE (4997559755B09) Diagram

#

Description
Price

-

Asm., Gearcase, Basic [Incl. 1-36 and All from Gearcase [2 or 2] page.]

1332463

$1,889.99

1

Index, Shift

3234121

$49.99

2

Spring, Torsion

7043326

$29.99

3

Fork, Shift, Low

3233503

$113.32

4

PIN, DOWEL

7661957

$2.39

4

PIN, DOWEL

7661957

$2.39

5

Drum, Shift

3234120

$175.99

6

Fork, Shift , High

3233505

Unavailable

7

Shaft, Shift

3233403

$195.22

8

O-RING

5410440

$4.84

9

KEY

7710609

$3.19

10

Bellcrank

1016010

$43.56

11

SCREW

7518785

$2.39

11

SCREW

7518785

$2.39

12

Switch

4110062

$32.37

13

O-RING

5410675

$1.60

14

Dipstick

5438124

$44.99

15

Bearing

3514304

$15.99

16

Ring, Retainer

7710602

$3.19

17

WASHER, THRUST

7556431

Unavailable

18

Bearing, Needle

3514591

$19.99

19

Sprocket, 19T NOTE: Must order with Ref. 21

3233509

$149.99

20

KEY

7710608

$3.19

21

Dog, Engagement, High NOTE: Must order with Ref. 19

3233470

$91.99

22

Chain [.75W 40P]

3222166

$101.17

23

Ring, Retainer

7710607

$3.19

24

Sprocket, 19T

3233507

$39.99

25

Input, Shaft

3233506

$227.52

26

GEAR, 27T

3233419

$119.99

27

SPACER

5135971

$6.39

28

BEARING, BALL

3514594

$6.39

29

Extension, Detent

5135953

$12.94

30

Spring, Detent, Shifter

7041483

$40.46

31

BALL, DETENT

7080310

$5.99

32

SEAL, DUAL LIP

3610134

$49.99

32

SEAL, DUAL LIP

3610134

$49.99

33

PLUG

7052115

$5.65

34

DEFLECTOR, OIL

5251122

$15.48

35

SCREW

7518784

$2.39

36

Pipe, Knock

5135952

$6.46
