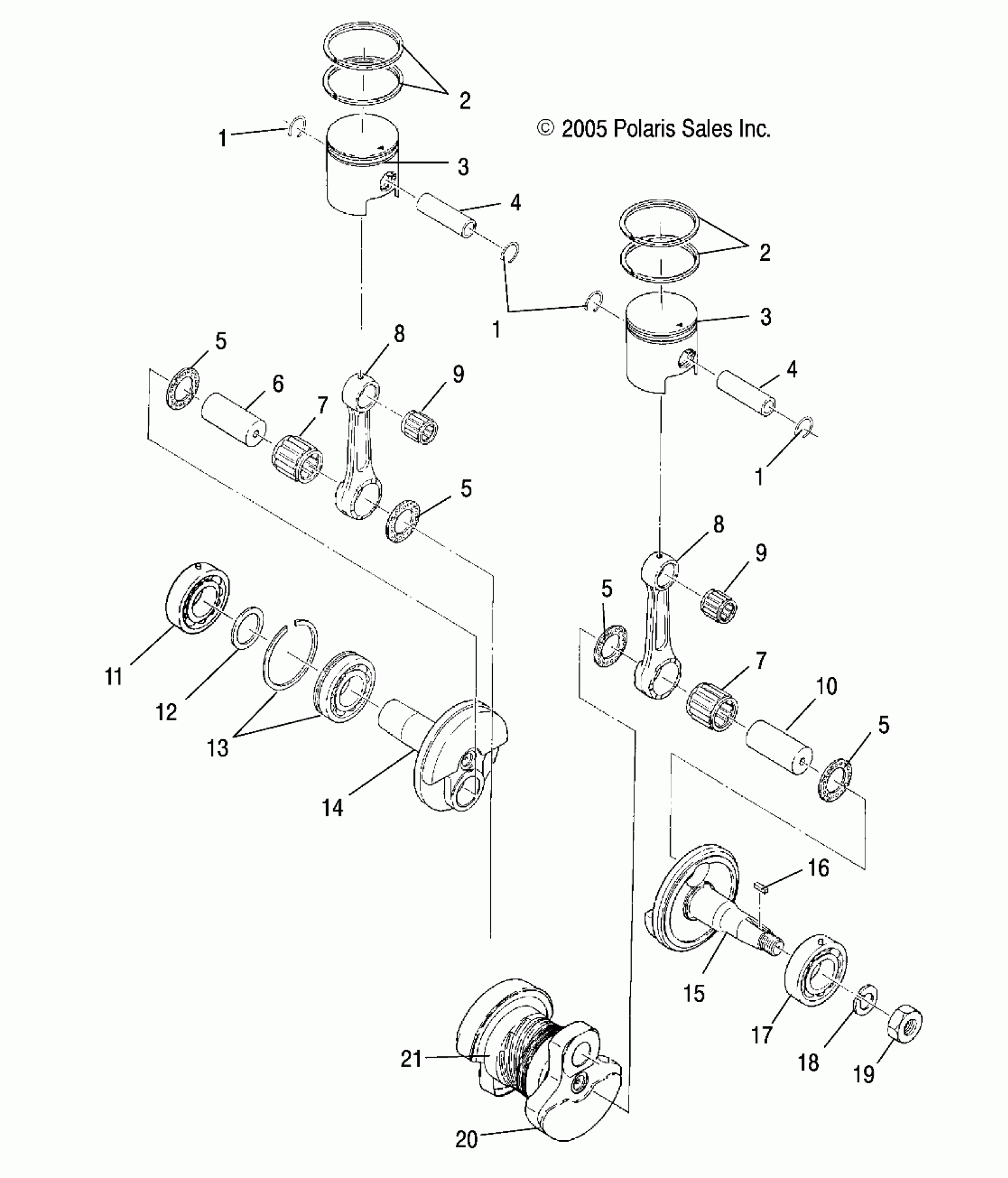

Polaris WIDETRAK LX - S07SU4BS/BE ENGINE, PISTON and CRANKSHAFT - S07SU4BS/BE (4997559755C08) Diagram

#

Description
Price

1

Clip, Piston Pin

3083839

$4.75

1

Clip, Piston Pin

3083839

$4.75

1

Clip, Piston Pin

3083839

$4.75

2

Ring, Piston, Standard

3084342

$47.60

2

Ring, Piston, 0.25 O/S

3084343

Unavailable

2

Ring, Piston, 0.50 O/S

3084344

$66.65

2

Ring, Piston, Standard

3084342

$47.60

2

Ring, Piston, 0.25 O/S

3084343

Unavailable

2

Ring, Piston, 0.50 O/S

3084344

$66.65

3

Piston, Standard [Incl. 1]

3085458

Unavailable

3

Piston, 0.25 O/S [Incl. 1]

3085459

Unavailable

3

Piston, 0.50 O/S [Incl. 1]

3085460

$152.37

3

Piston, Standard [Incl. 1]

3085458

Unavailable

3

Piston, 0.25 O/S [Incl. 1]

3085459

Unavailable

3

Piston, 0.50 O/S [Incl. 1]

3085460

$152.37

4

PIN, PISTON

3083858

$23.99

4

PIN, PISTON

3083858

$23.99

5

SPACER, CRANK PIN

3083277

$15.99

5

SPACER, CRANK PIN

3083277

$15.99

5

SPACER, CRANK PIN

3083277

$15.99

5

SPACER, CRANK PIN

3083277

$15.99

6

CRANK PIN 2

3083456

Unavailable

7

Bearing, End, Large

3085628

$31.99

7

Bearing, End, Large

3085628

$31.99

8

Rod, Connecting

3083252

$164.99

8

Rod, Connecting

3083252

$164.99

9

BEARING, END, SMALL

3083216

$16.57

9

BEARING, END, SMALL

3083216

$16.57

10

Crank Pin 1

3083233

$36.41

11

Bearing, Ball

3085205

Unavailable

12

Spacer

3085203

$6.39

13

Bearing, Ball

3085204

Unavailable

14

Crankshaft 3, PTO Side

3089531

$384.99

15

Crankshaft 1, Mag Side

3086835

$426.99

15

Asm., Crankshaft [Incl. 5-8,10-15,17,21,20]

3089530

Unavailable

16

KEY, WOODRUFF

3081543

$12.94

17

Bearing, Ball

3086878

Unavailable

18

WASHER, SPRING

3083094

$3.17

19

NUT

3083093

$19.99

20

Asm., Crankshaft 2 [Incl. 6,10]

3083713

$583.49

21

Bearing, Ball

3084601

$49.99
