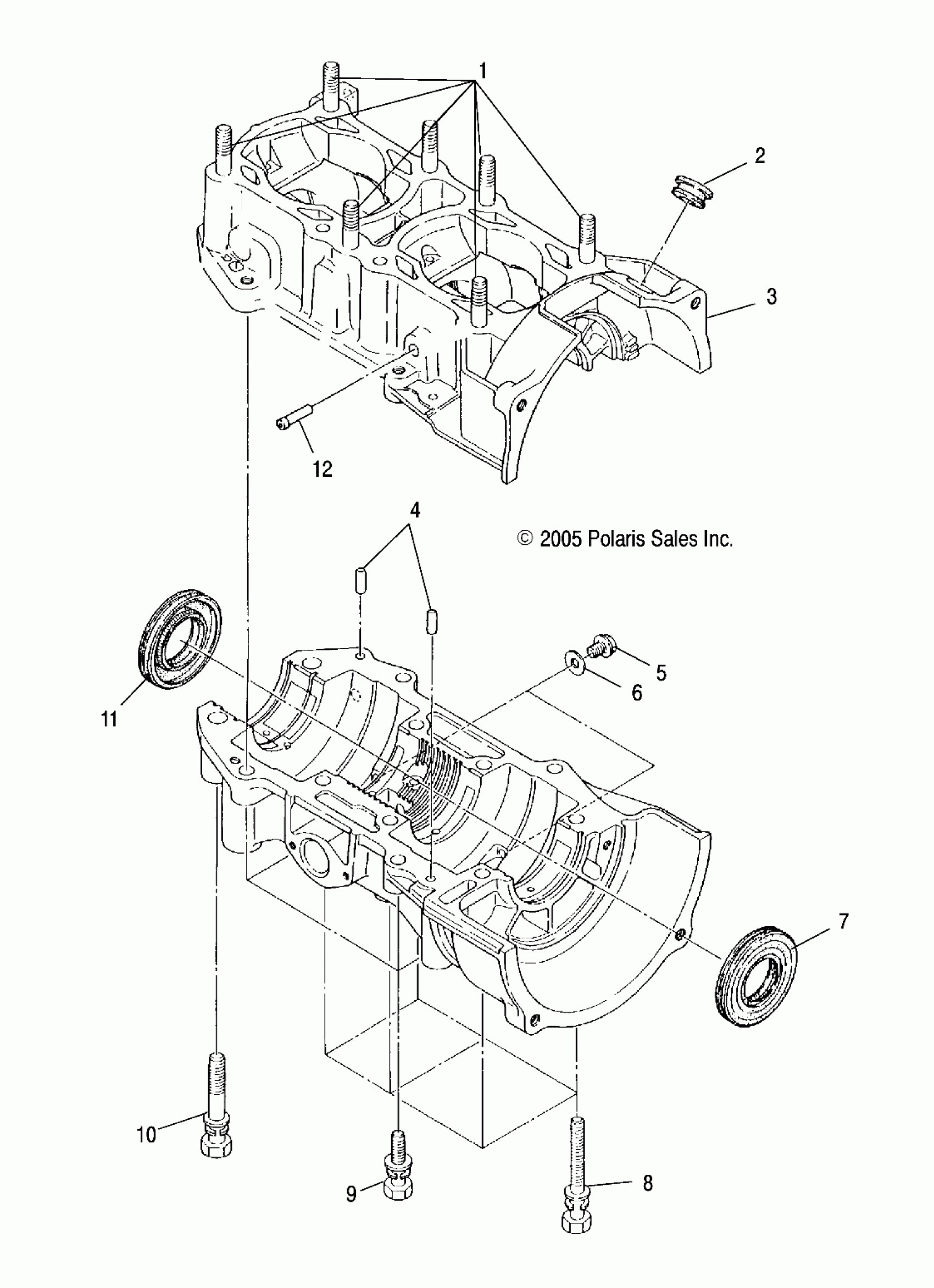

Polaris WIDETRAK LX - S07SU4BS/BE ENGINE, CRANKCASE - S07SU4BS/BE (4997559755C06) Diagram

#

Description
Price

1

Stud

3084119

$9.59

2

GROMMET

3082875

$7.99

3

Asm., Crankcase [Incl. 1,4,8-10,12]

3086832

$854.99

4

PIN, DOWEL

3086838

$7.19

5

Bolt, Flange

3087256

$3.99

6

WASHER, FLAT

7555998

$1.49

7

Seal, Oil [MAG Side]

3086833

$36.41

8

Asm., Bolt and Washer

3080739

$6.39

9

Asm., Bolt and Washer

3083078

Unavailable

10

Asm., Bolt and Washer

3084220

$8.79

11

Seal, Oil [PTO Shaft]

3085200

$36.41

12

Pipe, Pulse [25mm]

3083798

$9.52
