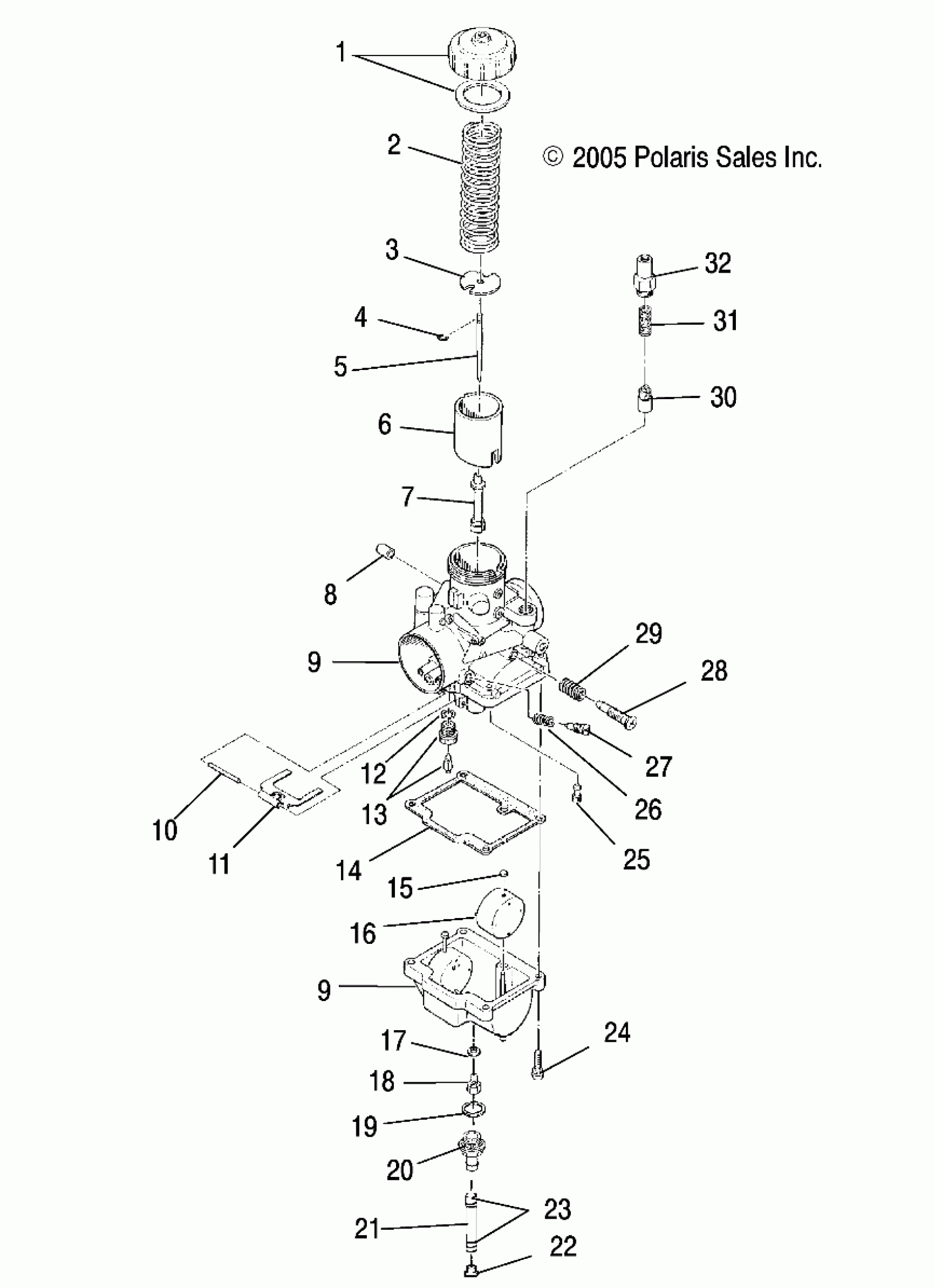

Polaris WIDETRAK LX - S07SU4BS/BE ENGINE, CARBURETOR - S07SU4BS/BE (4997559755C10) Diagram

#

Description
Price

1

ASM., TOP, MIXING CHAMBER

3130184

$32.37

2

SPRING, THROTTLE

3130318

$20.22

3

Plate, Throttle

3130027

$9.70

4

E-RING

3130508

$6.46

5

Needle, Jet, 6EJ26

3130423

$20.22

6

VALVE, THROTTLE, 3.0

3130372

$52.60

7

Jet, Needle, P-6, 166

3130160

$36.41

8

CAP

3130479

$14.56

9

Asm., Carburetor [Incl. 1-20,24-32]

3130711

$503.48

9

Asm., Carburetor [Incl. 1-20,24-32]

3130711

$503.48

10

PIN, FLOAT

3130361

$8.89

11

Arm, Float

3130018

$24.27

12

Packing, Needle Valve

3130017

$4.03

13

Valve, Needle, 1.5

3131146

$48.56

14

Gasket, Float Chamber

3130020

$16.17

15

Cap

3130237

$4.03

16

Asm., Float

3130430

$43.56

17

WASHER

3130014

$1.59

18

Jet, Main, #195

3130122

$6.46

19

O-RING

3130239

Unavailable

20

NIPPLE

3130573

$32.37

21

Line, Fuel

8350017-600

Unavailable

22

Plug, Trap

5431893

$12.94

23

HOSE CLAMP, RED

7080003

$1.49

24

Asm., Screw and Washer

3130025

$3.19

25

Jet, Pilot, #35

3130066

$8.89

26

Spring, Air Adjuster

3130012

$8.89

27

Screw, Air

3130011

$19.99

28

SCREW, THROTTLE STOP

3130437

Unavailable

29

SPRING, THROTTLE ADJUSTER

3130010

$8.89

30

Plunger

3130328

$32.37

31

Spring, Plunger

3130006

$8.89

32

Cap, Plunger

3130199

$28.32
