Partiron

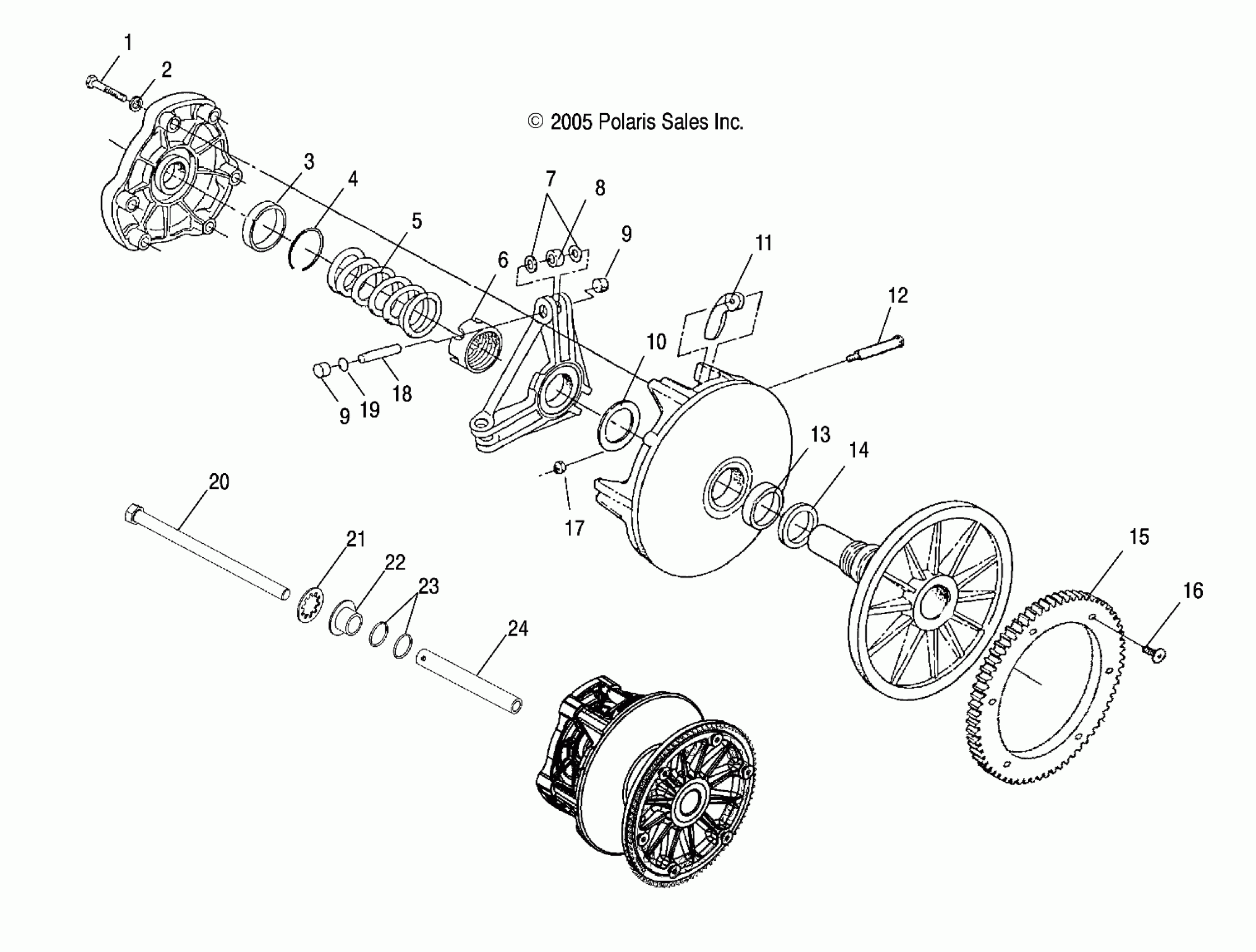

Polaris WIDETRAK LX - S07SU4BS/BE CLUTCH, DRIVE - S07SU4BS/BE (4997559755B12) Diagram

#

Description
Price

-

Kit, Clutch Update [Incl. 7-9,12,18,19]

2200386

$161.89

-

Asm., Drive Clutch, Basic 89 [Incl. 1,2,4,6-8,12-18]

1321738

Unavailable

1

Bolt

7512265

$3.99

2

WASHER, SPRING LOCK

7552801

$1.59

3

BEARING, COVER

3576516

$28.32

4

RING-RETAINING,COVER

7710417

$1.49

5

Spring, Clutch, Brown

7041061

Unavailable

6

NUT-JAM

5020425

$23.99

7

WASHER,MULTILUBE

5430945

$1.59

8

ASM-ROLLER AND BUSHING

1321622

$32.37

9

BUTTON, GUIDE

5430445

$6.39

9

BUTTON, GUIDE

5430445

$6.39

10

SPACER, .050

5210754

Unavailable

10

SPACER, .025

5242981

Unavailable

10

SPACER, .020

5210752

Unavailable

10

SPACER, .032

5210753

Unavailable

11

Asm., Weight/Bushing, 10

1321526

$40.46

12

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

13

Bearing, Sleeve

3576502

$23.99

14

INSERT-MOVEABLE

5010188

$7.99

15

Gear, Ring

5134969

$129.99

16

SCREW

7515351

$3.99

17

NUT, FLEXLOC

7541906

$3.19

18

PIN, ROLLER

5133079

$6.39

19

Kit - Shim, Drive Clutch

2200387

$24.27

20

Screw

7512565

$19.99

21

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

22

WASHER, CLUTCH RETAINER

5010287

$12.99

23

O-RING, CLUTCH BOLT

5410507

$1.49

24

SPACER, CLUTCH BOLT

5020513

$44.99
