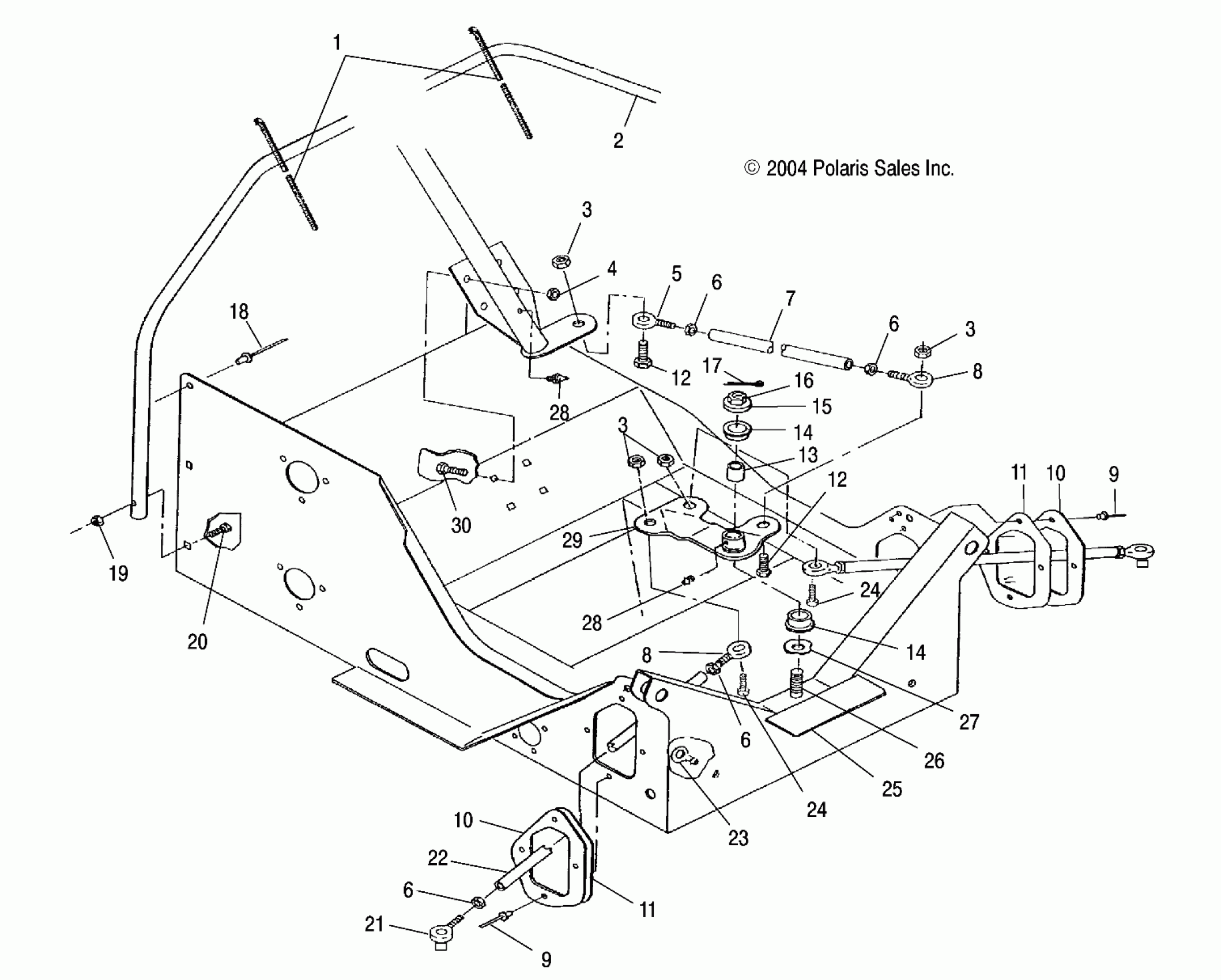

Polaris WIDETRAK LX - S05SU4BS STEERING - S05SU4BS/BE (4992949294B01) Diagram

#

Description
Price

1

CABLE TIE, RELEASABLE

7080804

$3.22

2

Hoop, Steering

1012729-067

$109.27

3

Nut, FLEXLOC

7542403

$3.99

3

Nut, FLEXLOC

7542403

$3.99

3

Nut, FLEXLOC

7542403

$3.99

4

Nut, FLEXLOC

7542303

$6.39

5

ROD END, RH

7060167

$48.56

6

Nut [RH]

7542401

$2.39

6

NUT, LH

7542424

$1.49

6

Nut [RH]

7542401

$2.39

6

NUT, LH

7542424

$1.49

6

Nut [RH]

7542401

$2.39

6

NUT, LH

7542424

$1.49

6

Nut [RH]

7542401

$2.39

6

NUT, LH

7542424

$1.49

7

ROD, DRAG LINK

5334113-067

$40.46

8

ROD END, LH

7060166

$48.56

8

ROD END, LH

7060166

$48.56

9

Rivet

7621323

$1.49

9

Rivet

7621323

$1.49

10

PLATE, BOOT SEAL

5222942-067

$9.70

10

PLATE, BOOT SEAL

5222942-067

$9.70

11

BOOT, TIE ROD

5410761

$12.94

11

BOOT, TIE ROD

5410761

$12.94

12

SCREW

7515528

$8.79

12

SCREW

7515528

$8.79

13

BUSHING

5010463

$9.70

14

BUSHING

3563907

$3.99

14

BUSHING

3563907

$3.99

15

WASHER

7555721

$1.49

16

Nut, FLEXLOC

7542703

Unavailable

17

Pin, Cotter

7661203

$1.49

18

RIVET-3/16-.090-.290

7661637

$1.49

19

Nut, FLEXLOC

7542103

$5.59

20

Bolt, Carriage

7512275

$3.99

21

ROD END, RH

7060174

$48.56

22

TIE ROD

5020878

$36.41

23

CLIP, ROSEBUD

4020139

$4.79

24

BOLT

7515540

$4.79

24

BOLT

7515540

$4.79

25

Block, Steering

5630563

$32.37

26

SCREW

7512682

Unavailable

27

Washer, Wave

7555735

$3.99

28

Fitting, Lubrication

7080433

$1.49

28

Fitting, Lubrication

7080433

$1.49

29

Asm., Center Steering Arm [Incl. 14,28]

1822217

$56.65

30

Bolt, Carriage

7517428

$2.39
