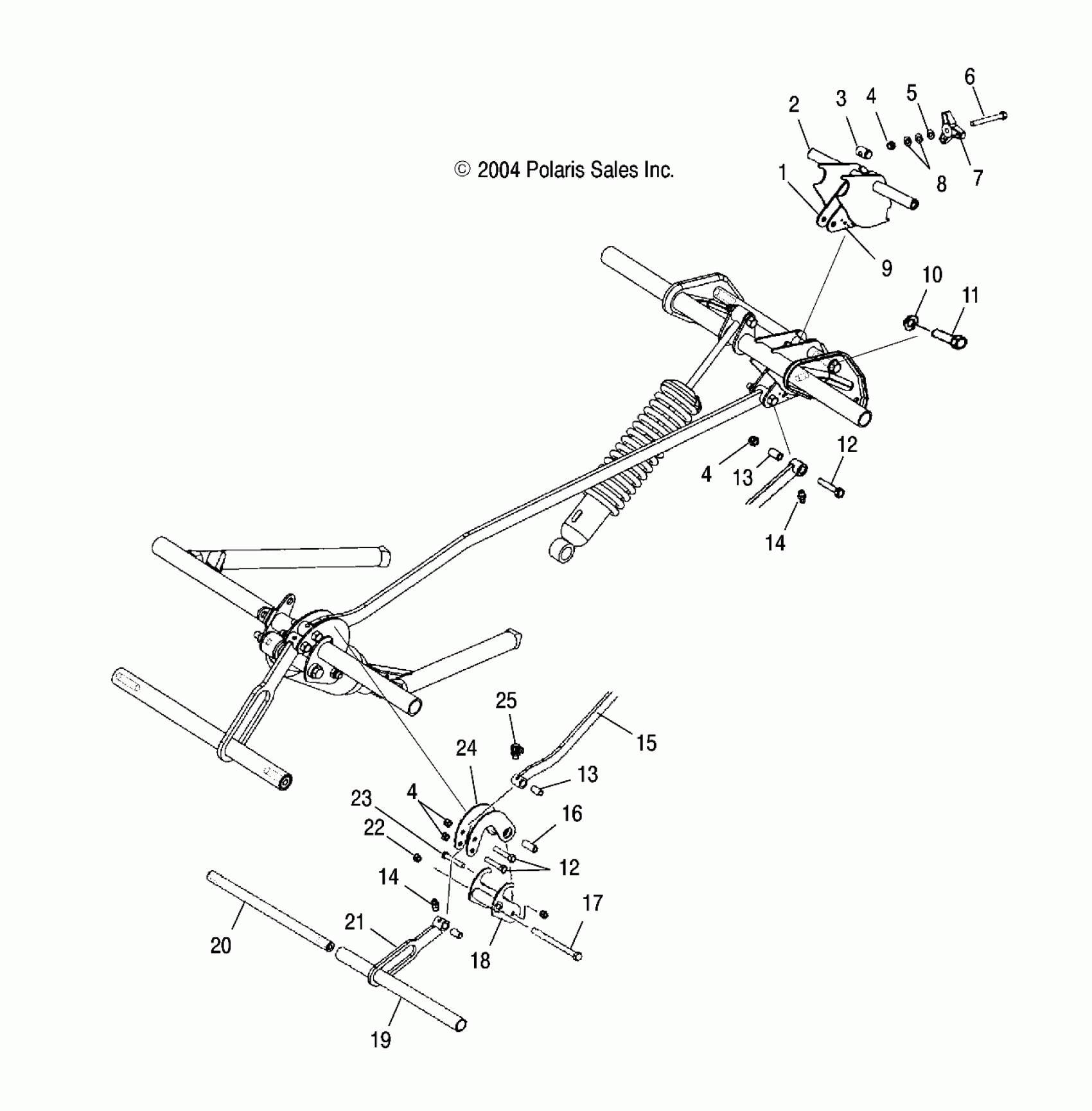

Polaris WIDETRAK LX - S05SU4BS REAR SUSPENSION COUPLER - S05SU4BS/BE (4992949294B07) Diagram

#

Description
Price

1

ARM, ADJUSTMENT, INNER, RH

5244982

$39.99

2

ADJUSTER

1013387

$80.94

3

SHAFT, ADJUSTER

5132761

$24.27

4

NUT-5/16-18 NYLOK-Y

7542324

$1.49

4

NUT-5/16-18 NYLOK-Y

7542324

$1.49

4

NUT-5/16-18 NYLOK-Y

7542324

$1.49

5

WASHER, SPRING LOCK

7552901

$1.49

6

BOLT

7517877

$5.59

7

Knob, Backrest

5630386-067

$20.22

8

WASHER

7555770

Unavailable

9

ARM, ADJUSTMENT, INNER, LH

5244981

$39.99

10

Washer, Spring Lock

7552603

$1.49

11

Screw

7517247

$3.19

12

Bolt

7512329

$3.99

12

Bolt

7512329

$3.99

13

BUSHING

5132759

$19.99

13

BUSHING

5132759

$19.99

14

Fitting, Lubrication

7080433

$1.49

14

Fitting, Lubrication

7080433

$1.49

15

BAR, COUPLER

1013391

$99.99

16

BUSHING

5132760

$19.99

17

Bolt

7517507

$23.99

18

COUPLER, OUTSIDE

1013587

$64.99

19

SLEEVE, PIVOT SHAFT

5433977

$11.99

20

SHAFT, PIVOT

5132742

$219.99

21

CLEVIS

1013390

$48.56

22

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59

23

BOLT

7517876

$19.99

24

LINK, COUPLER, INSIDE

1013389

$44.51

25

FITTING, ZERK

7080510

$5.59
