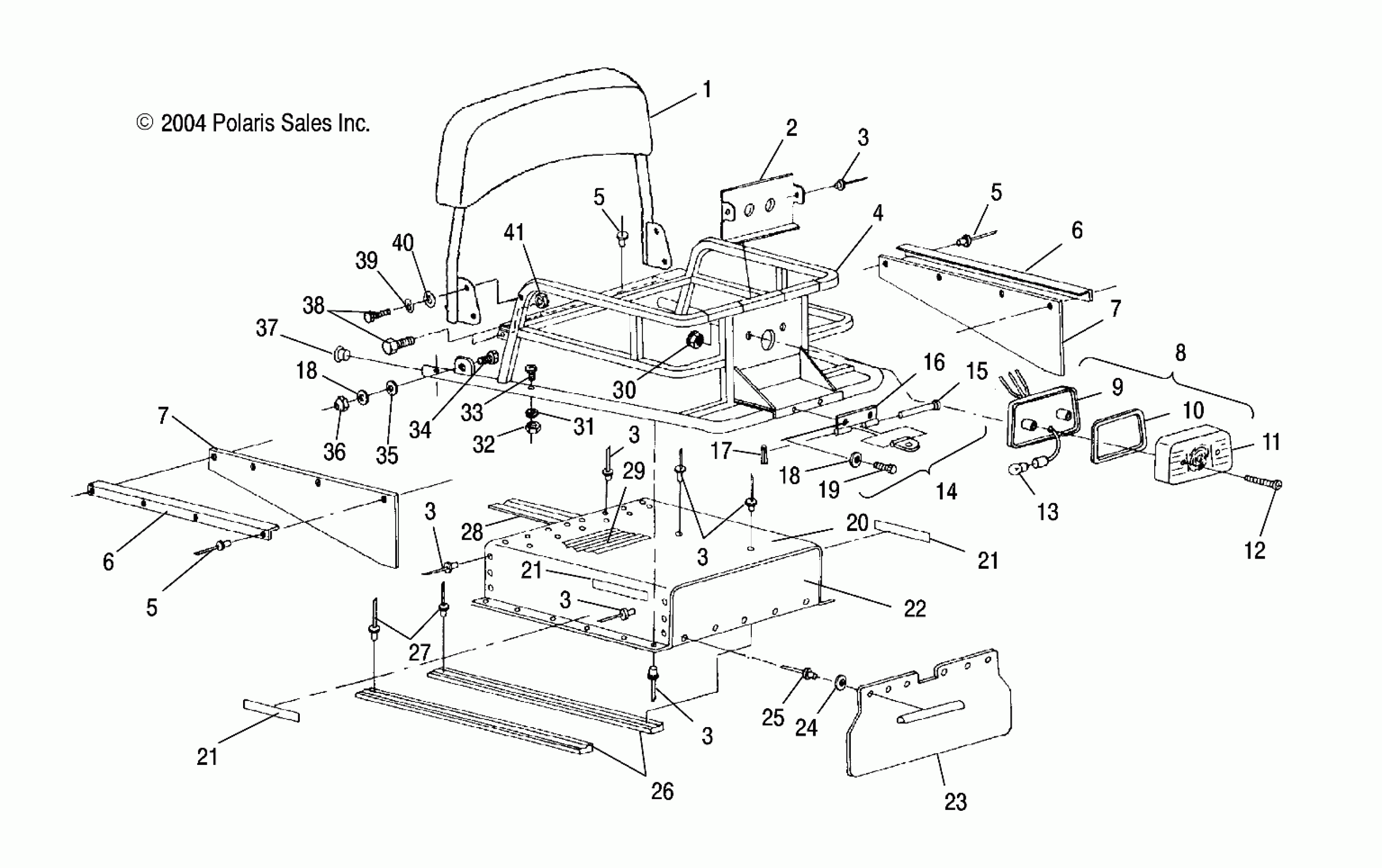

Polaris WIDETRAK LX - S05SU4BS RACK and TUNNEL EXTENSION - S05SU4BS/BE (4992949294A12) Diagram

#

Description
Price

1

Asm., Backrest [Incl. 2]

2683536

$214.39

1

Asm., Cover, Backrest

2683537

$99.19

2

Shield, Taillight

5222868-067

$20.63

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

4

Rack

1012076-067

$258.99

5

Rivet

7621462

$1.49

5

Rivet

7621462

$1.49

5

Rivet

7621462

$1.49

6

Bracket, Snow Flap

5220497-067

$12.39

6

Bracket, Snow Flap

5220497-067

$12.39

7

Flap, Snow, Side Tunnel

5812321

$55.56

7

Flap, Snow, Side Tunnel

5812321

$55.56

8

Asm., Taillight [Incl. 9-13]

2410370

$113.32

9

Backing, Taillight

4032047

Unavailable

10

Gasket, Taillight

4032045

$4.03

11

Lens, Taillight

4032046

$32.37

12

Screw, Taillight

4032029

$4.79

13

Bulb, Taillight, Extreme Duty

4030063

$24.99

14

Hitch

1011624-067

Unavailable

14

Kit, Hitch [Incl. 15-19]

2870708

Unavailable

15

PIN, CLEVIS

7662209

$9.59

16

Hitch

1011518-067

$31.75

17

PIN, COTTER

7661401

$1.49

18

Washer, Spring Lock

7552603

$1.49

18

Washer, Spring Lock

7552603

$1.49

19

Screw

7512490

$3.99

20

Extension, Tunnel Rear

5240516-067

$81.17

21

ASM., REFLECTOR, RED

2670133

$5.75

21

ASM., REFLECTOR, RED

2670133

$5.75

21

ASM., REFLECTOR, RED

2670133

$5.75

22

Panel, Tunnel Back

5240530-067

$45.59

23

FLAP, SNOW

5812320

$97.13

24

WASHER

7556044

$3.99

25

RIVET

7621418

$1.49

26

Strip, Wear, Extension

5222448

$17.46

27

Rivet

7621449

$3.19

28

BRACKET, HARNESS PROTECTOR

5222323

$24.27

29

PROTECTOR, BED

5410560

$51.99

30

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

31

Washer, Flat

7558301

$1.49

32

Nut, Nylok

7542122

$1.49

33

SCREW

7517377

$4.79

34

Bolt

7515522

$3.99

35

WSHR-.813X.406X.105-Y

7555832

$2.39

36

NUT, ACORN

7542458

$9.59

37

Plug, Tube

5430713

Unavailable

38

Bolt

7515341

Unavailable

39

WASHER, SPRING LOCK

7552901

$1.49

40

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

41

NUT-5/16-18 NYLOK-Y

7542324

$1.49
