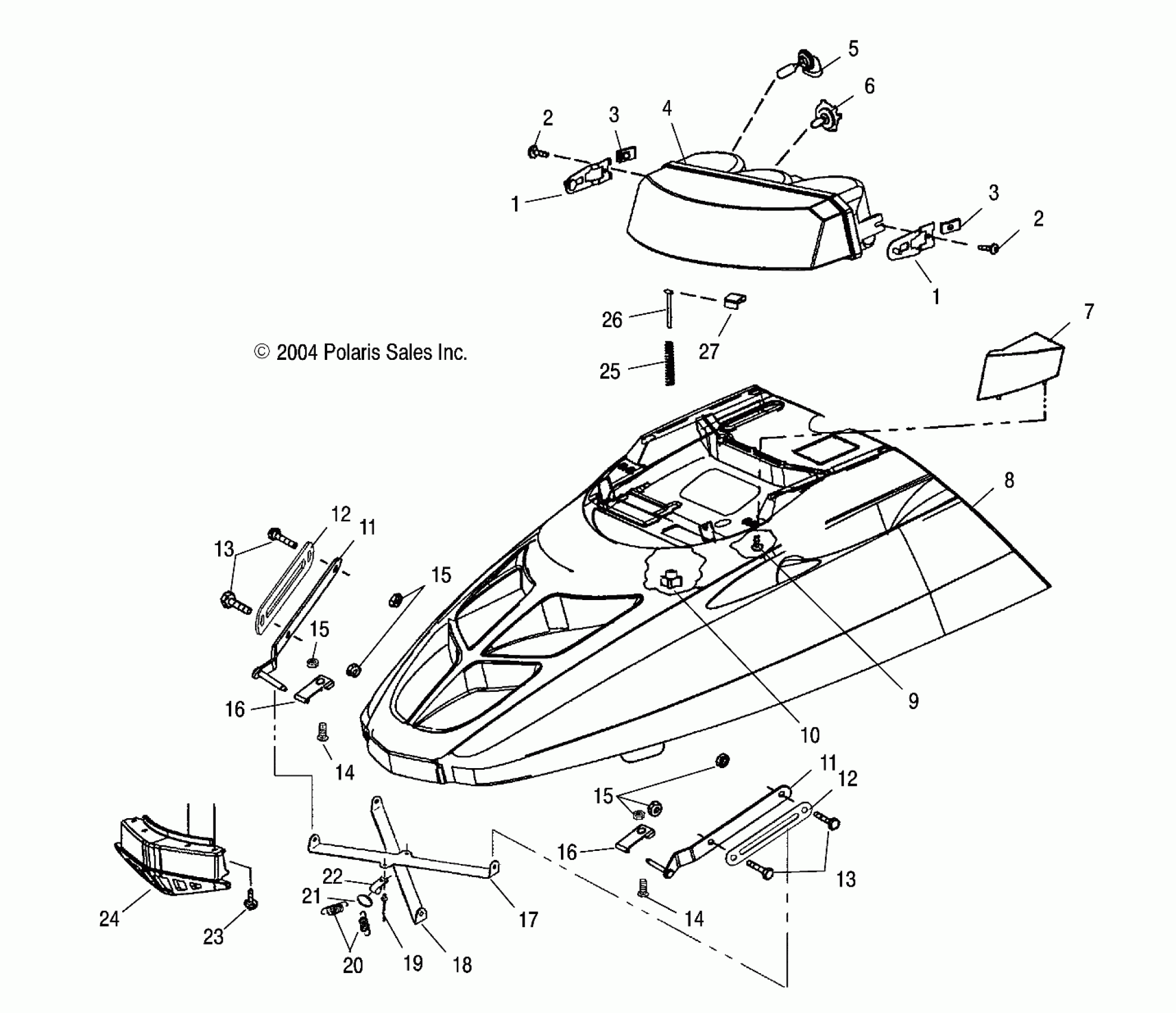

Polaris WIDETRAK LX - S05SU4BS HOOD - S05SU4BS/BE (4992949294A07) Diagram

#

Description
Price

1

MOUNT, HEADLIGHT

1011944-067

$24.27

1

MOUNT, HEADLIGHT

1011944-067

$24.27

2

Screw

7515107

Unavailable

2

Screw

7515107

Unavailable

3

NUT, U-TYPE SPEED

7670057

$1.49

3

NUT, U-TYPE SPEED

7670057

$1.49

4

ASM., HEADLAMP [INCL. BULBS]

2433016

$249.99

5

BULB-HEADLIGHT,50 WATT

4010253

$34.99

6

BULB, HALOGEN

2870448

$24.99

7

LENS/REFLECTOR, LH

5431855

Unavailable

7

LENS/REFLECTOR, RH

5431856

Unavailable

8

Asm., Hood, Solar Red [Incl. Foam/Foil]

2632227-342

$678.57

9

Screw

7511953

Unavailable

10

KNOB-HEADLIGHT,ADJUST,LOCKINGB

7080887

$4.84

11

HINGE, UPPER, LH

1012750

$48.56

11

HINGE, UPPER, RH

1012751

$43.99

11

HINGE, UPPER, LH

1012750

$48.56

11

HINGE, UPPER, RH

1012751

$43.99

12

PLATE, BOLT

5242948

$9.70

12

PLATE, BOLT

5242948

$9.70

13

Screw

7515184

Unavailable

13

Screw

7515184

Unavailable

14

BOLT, CARRIAGE

7512193

$2.39

14

BOLT, CARRIAGE

7512193

$2.39

15

Nut, Nylok

7542122

$1.49

15

Nut, Nylok

7542122

$1.49

15

Nut, Nylok

7542122

$1.49

16

PLATE, HINGE, LOWER

5244395

$11.99

16

PLATE, HINGE, LOWER

5244395

$11.99

17

BRACE, HOOD, UPPER

5242945

$40.46

18

BRACE, HOOD, LOWER

5242946

$40.46

19

RIVET-3/16-.090-.290

7661637

$1.49

20

SPRING, EXTENSION

7041732

$7.19

21

RING, SPRING ATTACHMENT

7041760

$7.99

22

CLAMP, RETAINER

7080372

$3.99

23

Screw

7517441

$2.39

24

SCREEN, FRONT

5432931

$36.41

25

SPRING, HEADLIGHT ADJUST

7041308

$3.19

26

BOLT, TEE, ADJUSTER

7517746

$24.99

27

FASTENER-U TYPE CLIP

7670040

$3.99
