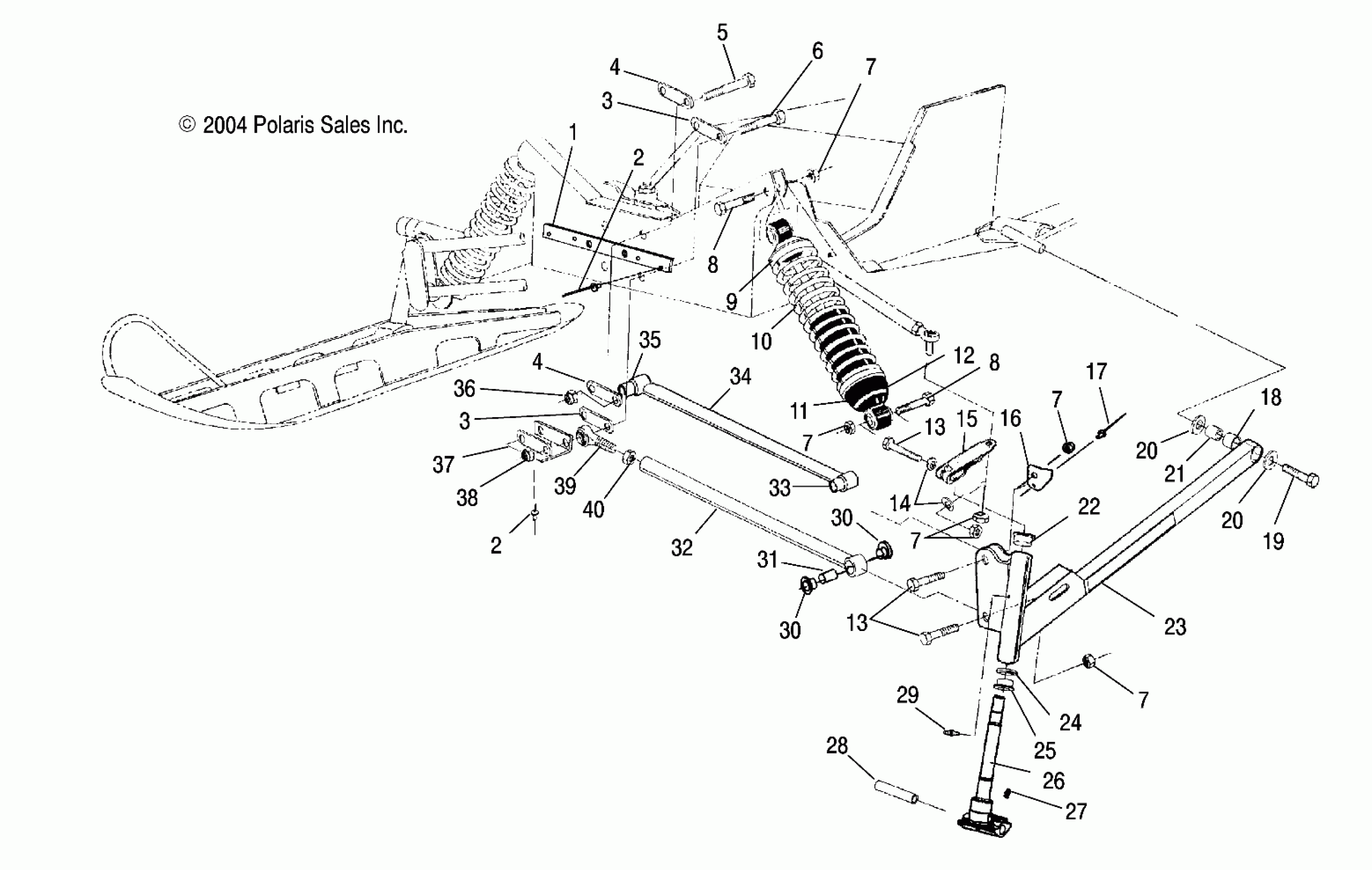

Polaris WIDETRAK LX - S05SU4BS FRONT SUSPENSION - S05SU4BS/BE (4992949294A13) Diagram

#

Description
Price

1

Brace, Bulkhead

5240349-067

$6.63

2

RIVET-3/16-.090-.290

7661637

$1.49

2

RIVET-3/16-.090-.290

7661637

$1.49

3

Strap, Spacer, Bottom

5211345

$12.99

3

Strap, Spacer, Bottom

5211345

$12.99

4

Strap, Spacer, Top

5211344

$7.27

4

Strap, Spacer, Top

5211344

$7.27

5

Screw

7512582

$8.79

6

BOLT

7512678

$19.99

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

8

Screw

7515415

$1.49

8

Screw

7515415

$1.49

9

Retainer, Spring Coil, Top

5220225

$10.39

10

Spring, Compression

7041261-067

$164.99

11

RETAINER, SPRING

5210953

$6.39

12

SHOCK, IFS

7041535

$214.99

13

SCREW

7517583

$4.35

13

SCREW

7517583

$4.35

14

WSHR-.813X.406X.105-Y

7555832

$2.39

15

Arm, Steering, Cloud Silver

5220326-385

$28.57

16

Stop, Steering, LH

5241569-385

$4.15

16

Stop, Steering, RH

5241570-385

$4.15

17

Rivet

7661130

$1.49

18

PIVOT, RUBBER

5410872

$10.99

19

Screw

7512557

$7.60

20

WASHER

7555721

$1.49

20

WASHER

7555721

$1.49

21

BUSHING

5010310

$9.70

22

BUSHING, FLANGE

3573909

$2.39

23

Asm., Trailing Arm, LH [Incl. 18,21]

1821454

$329.99

23

Asm., Trailing Arm, RH [Incl. 18,21]

1821455

$334.99

24

Bushing

7556509

$1.59

25

BUSHING, FLANGED

3574208

$3.19

26

Shaft, Spindle, Trailing

6230102-067

$294.99

27

Fitting, Lubrication

7080306

$3.19

28

Bushing

5010158

$19.99

29

Fitting, Lubrication

7080433

$1.49

30

BUSHING

5010127

$7.99

30

BUSHING

5010127

$7.99

31

BUSHING, PIVOT, RADIUS ROD, OUTER

5431486

$3.19

32

Rod, Radius, Lower

1822444-385

$55.99

33

BUSHING, RADIUS ROD PIVOT

5411099

$11.99

34

Asm., Rod, Radius, Upper, Fixed [Incl. 33,35]

1822420-385

Unavailable

35

BUSHING, PIVOT

5411095

$15.99

36

Nut, FLEXLOC

7542503

$10.39

37

Bracket, Radius Rod, Bottom

5242578

$44.99

38

Nut, FLEXLOC

7542703

Unavailable

39

Rod End [RH]

7061071

$48.56

40

Nut, Jam

7542711

$2.39
