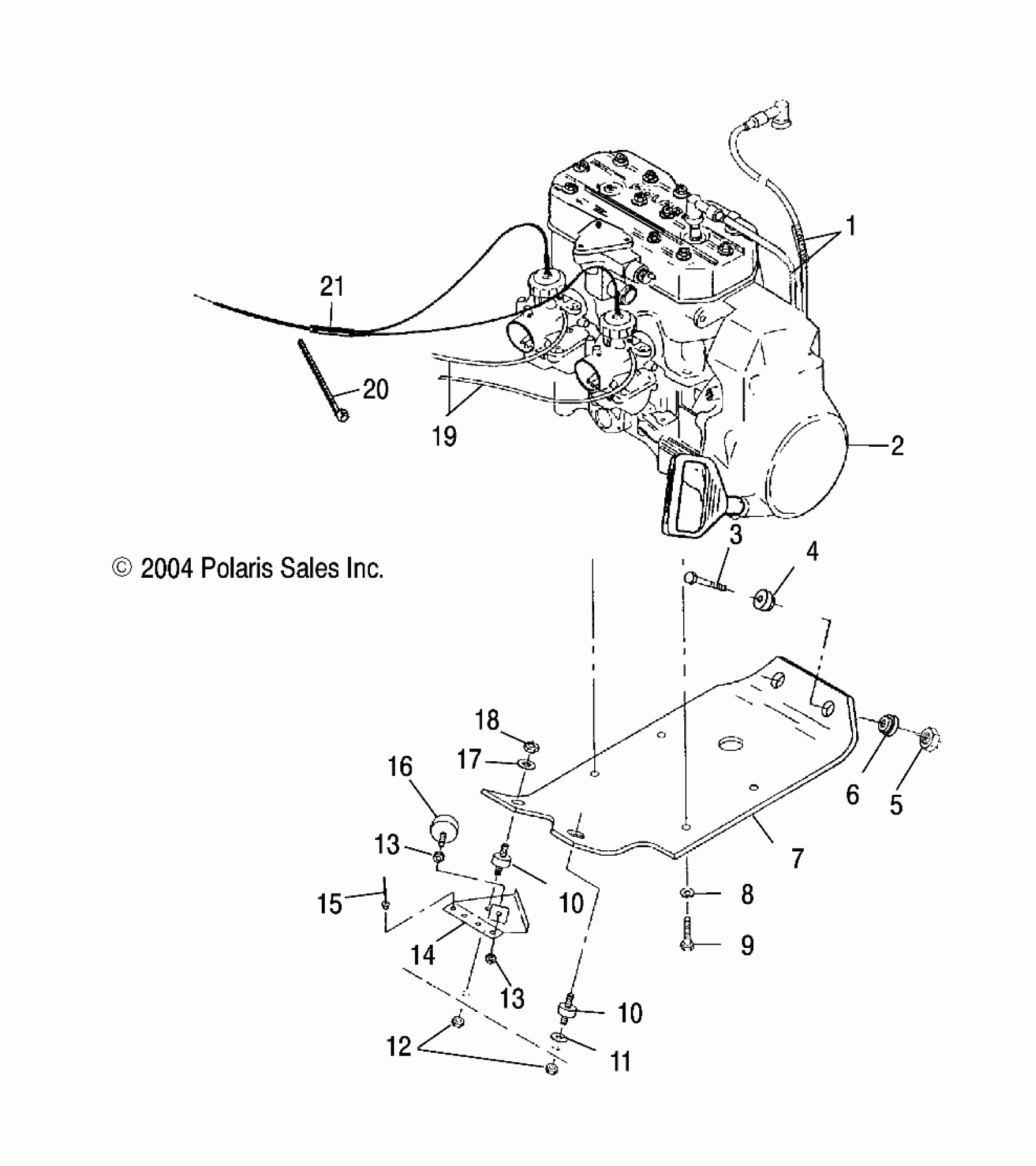

Polaris WIDETRAK LX - S05SU4BS ENGINE MOUNTING - S05SU4BS/BE (4992949294C05) Diagram

#

Description
Price

1

Tubing, Convoluted

5521516-10

$1.49

2

Engine, Short Block EC50PL230 NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization required for

3086509

Unavailable

3

SCREW

7512530

$5.59

4

MOUNT, ENGINE, RUBBER, TOP

5411685

$24.27

5

Nut, Flange

7542522

$5.59

6

MOUNT, ENGINE, RUBBER, BOTTOM

5411686

$28.32

7

Plate, Mount, Motor

5242496

$125.46

8

Washer, Spring Lock

7553101

$3.99

9

Screw

7512539

$3.99

10

MOUNT, ENGINE

3110061

$84.99

10

MOUNT, ENGINE

3110061

$84.99

11

Washer, Flat

7555915

$3.19

12

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

13

NUT, HEX

7542414

$4.79

13

NUT, HEX

7542414

$4.79

14

LIMITER, TORQUE

1012048-067

$38.71

15

RIVET-3/16-.090-.290

7661637

$1.49

16

STOP, TORQUE

3110063

$29.99

17

Washer, Flat

7555893

$1.49

18

NUT, FLEXLOC

7547008

$6.39

19

LINE, FUEL

8360009-600

Unavailable

20

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

21

Cable w/Oil, Throttle Control

7080554

$64.75
