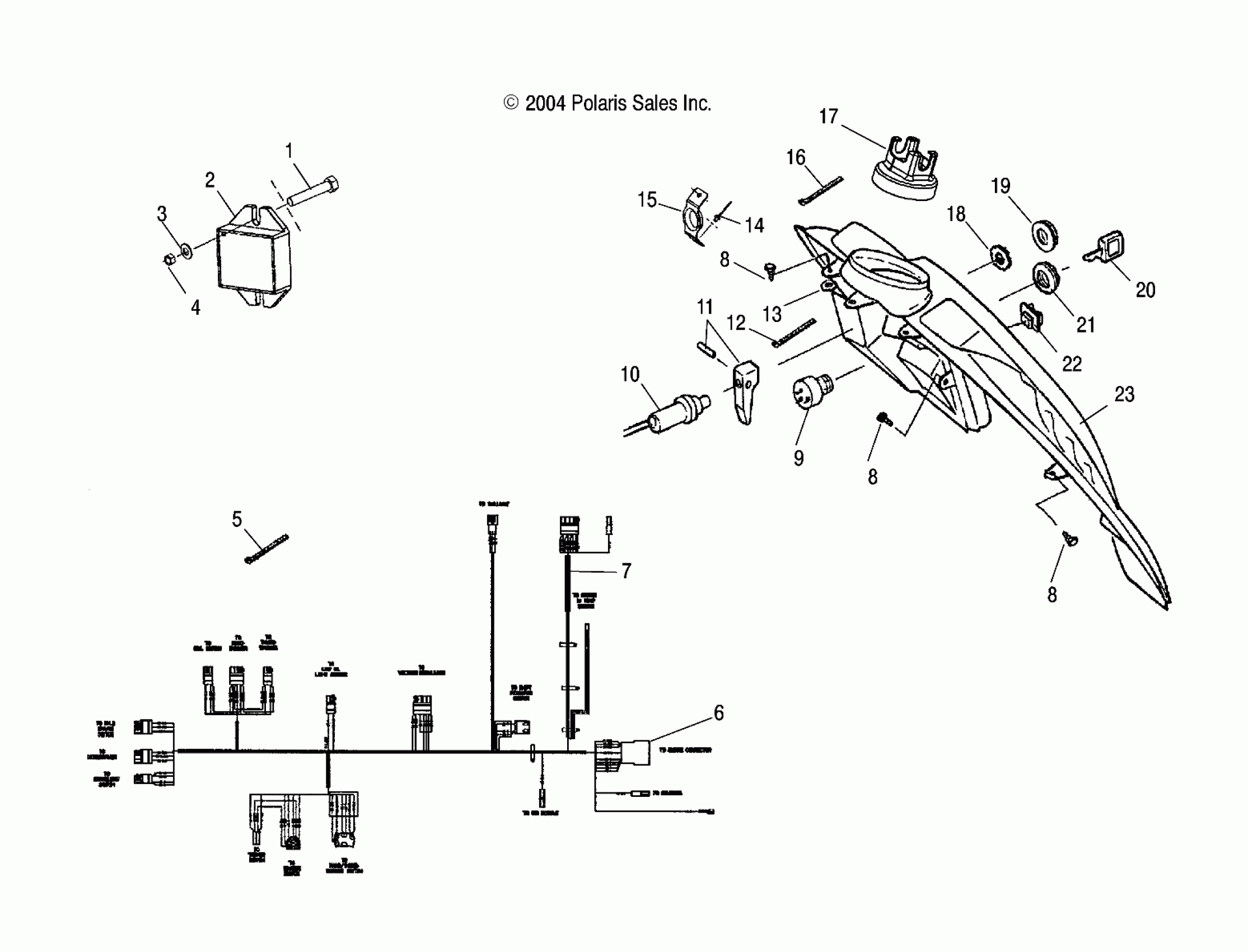

Polaris WIDETRAK LX - S05SU4BS CONSOLE - S05SU4BS/BE (4992949294A11) Diagram

#

Description
Price

1

Screw

7517263

Unavailable

2

Regulator, AC DC 14.3V

4010794

$116.17

3

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

4

Nut, Nylok

7541925

$1.49

5

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

6

Housing

4020057

$3.51

7

Harness, Wire, Main

2461145

$140.79

8

Screw

7515199

$1.49

8

Screw

7515199

$1.49

8

Screw

7515199

$1.49

9

Kit, Ignition Switch

2200358

$76.89

10

Cable, Choke Control [Incl. 11,19]

7080290

$105.22

11

Lever, Choke [Incl. Pin]

5432943

Unavailable

12

CABLE TIE, RELEASABLE

7080804

$3.22

13

Washer, Nylon

7555932

$2.39

14

RIVET

7621330

$1.49

15

GUIDE, RECOIL

5243049

$9.70

16

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

17

BOOT, HANDLEBAR

5433243

$129.99

18

Washer, Lock

7571610

$3.99

19

Nut, Choke

5432944

$8.79

20

Cap w/Key NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code found o

5410611

Unavailable

21

Nut, Ignition

7547035

$8.79

22

HAIRPIN, COTTER

7661124

$3.99

22

Switch, Heater, Hi/Lo

4110263

Unavailable

23

Console

5432994

$70.39
