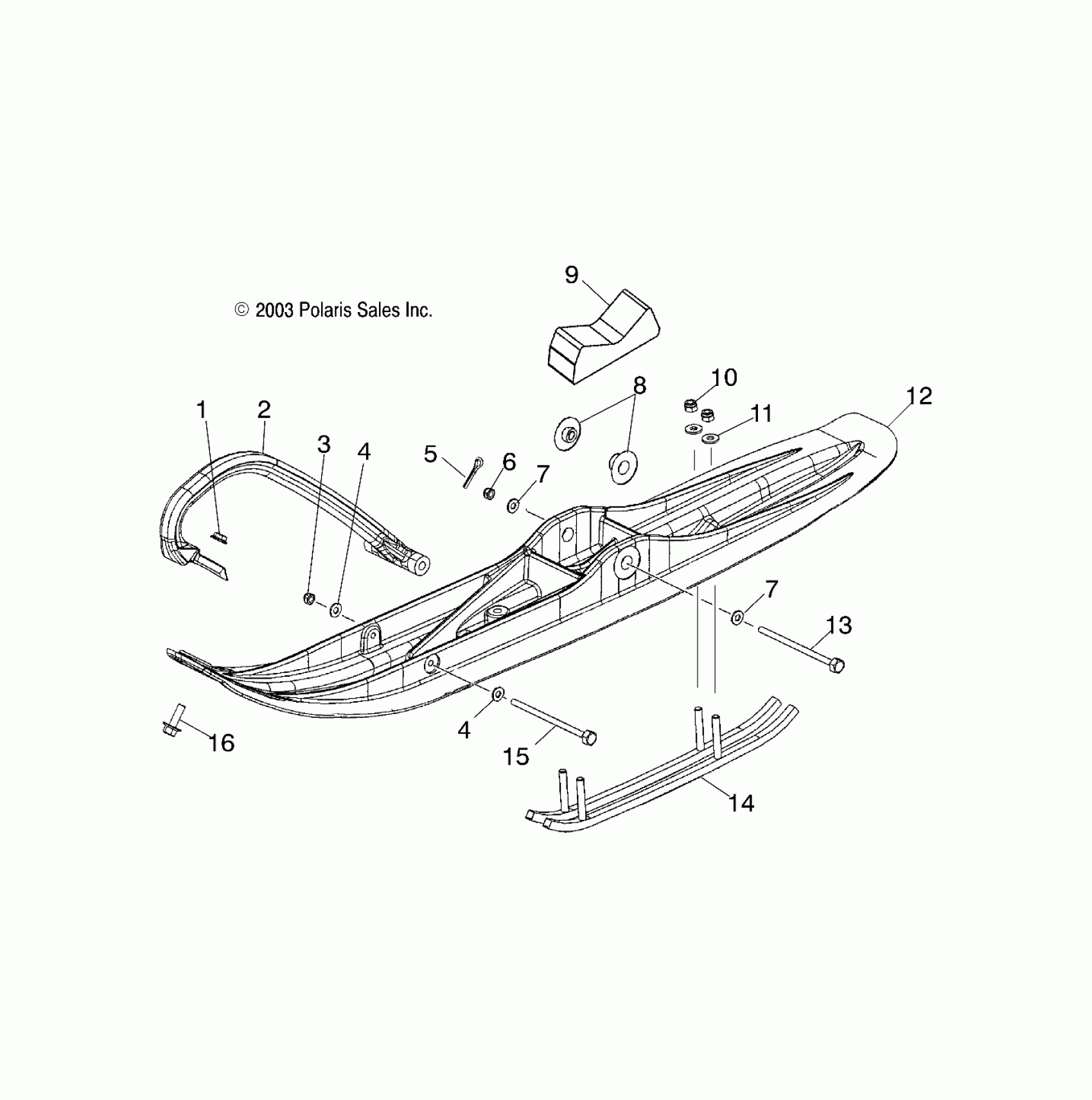

Polaris WIDETRAK LX - S04SU4BS SKI - S04SU4BS/BE (4988698869A14) Diagram

#

Description
Price

1

Nut, Flange

7542321

$1.49

2

Toe, Ski, Plastic, Black

5434618-070

Unavailable

3

Nut, Nylok

7542122

$1.49

4

Washer, Flat

7558301

$1.49

4

Washer, Flat

7558301

$1.49

5

Pin, Cotter

7661209

Unavailable

6

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

7

WASHER, BELLE

7556130

$6.39

7

WASHER, BELLE

7556130

$6.39

8

Bushing

5132637

$19.99

9

Stop, Ski, Rubber

5412018

$24.27

10

NUT-5/16-18 NYLOK-Y

7542324

$1.49

11

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

12

Asm., Ski, LH [Incl. 8]

1821337-070

Unavailable

12

Asm., Ski, RH [Incl. 8]

1821338-070

Unavailable

13

Screw

7515462

$8.79

14

Kit, Skag, 4-Inch, 60 Degree

2874334

$74.99

15

BOLT

7518047

$5.59

16

SCREW

7518070

$5.59
