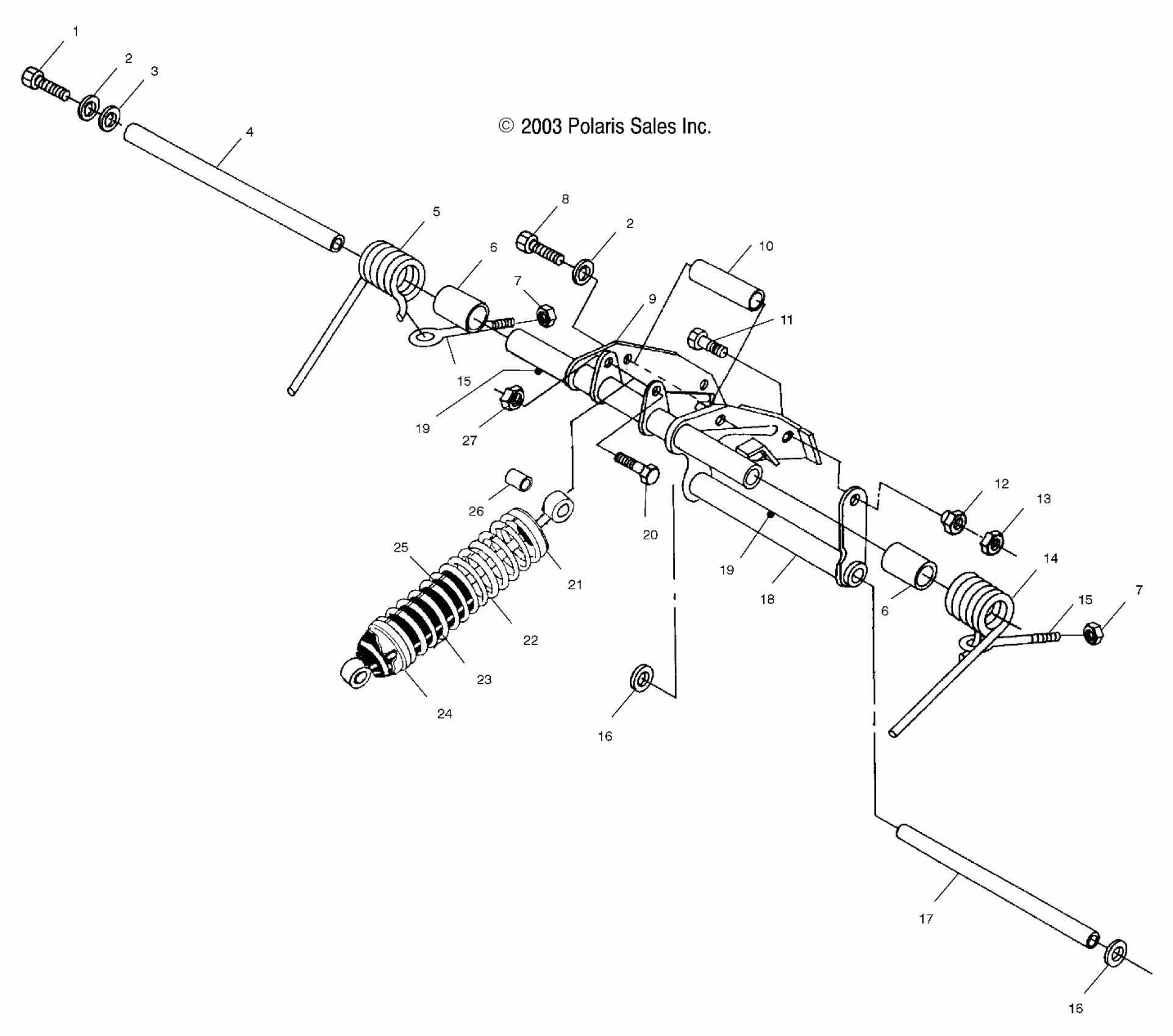

Polaris WIDETRAK LX - S04SU4BS REAR TORQUE ARM - S04SU4BS/BE (4988698869B04) Diagram

#

Description
Price

1

Screw

7517435

$14.99

2

Washer, Spring Lock

7552603

$1.49

2

Washer, Spring Lock

7552603

$1.49

3

Washer, Flat

7555893

$1.49

4

Shaft

5134040

$40.46

5

SPRING, SUSPENSION, REAR, RH

7041240-067

$94.99

6

SPACER, SPRING

5521277

$23.99

6

SPACER, SPRING

5521277

$23.99

7

Nut, FLEXLOC

7542402

$6.39

7

Nut, FLEXLOC

7542402

$6.39

8

Screw

7517247

$3.19

9

Arm, Torque, Rear

1541979-067

Unavailable

10

Tube, Spacer, Rear Torque Arm

5010305

$15.67

11

BOLT

7515317

$4.79

12

NUT, SHOULDER

7542326

$19.99

13

NUT, LOCK

7542302

$3.99

14

SPRING, SUSPENSION, REAR, LH

7041239-067

$130.70

15

BOLT, EYE

7080221

$9.59

15

BOLT, EYE

7080221

$9.59

16

WASHER, FLAT

7555823

$3.99

16

WASHER, FLAT

7555823

$3.99

17

SHAFT, PIVOT

5132239

$74.99

18

ARM, PIVOT, REAR

1540652-067

$74.99

19

FITTING-LUBRICATION 1/4-28

7080424

$4.79

19

FITTING-LUBRICATION 1/4-28

7080424

$4.79

20

Bolt

7512329

$3.99

21

Retainer, Spring Coil, Top

5220225

$10.39

22

Spring, Compression

7041261-067

$164.99

23

SLEEVE, SPRING PROTECTOR

5431032

$31.99

24

CAM, ADJUSTING, SPRING

5630334

$32.37

25

SHOCK, REAR TRACK

7042309

$319.99

26

BUSHING

5430537

$3.99

27

NUT-5/16-18 NYLOK-Y

7542324

$1.49
