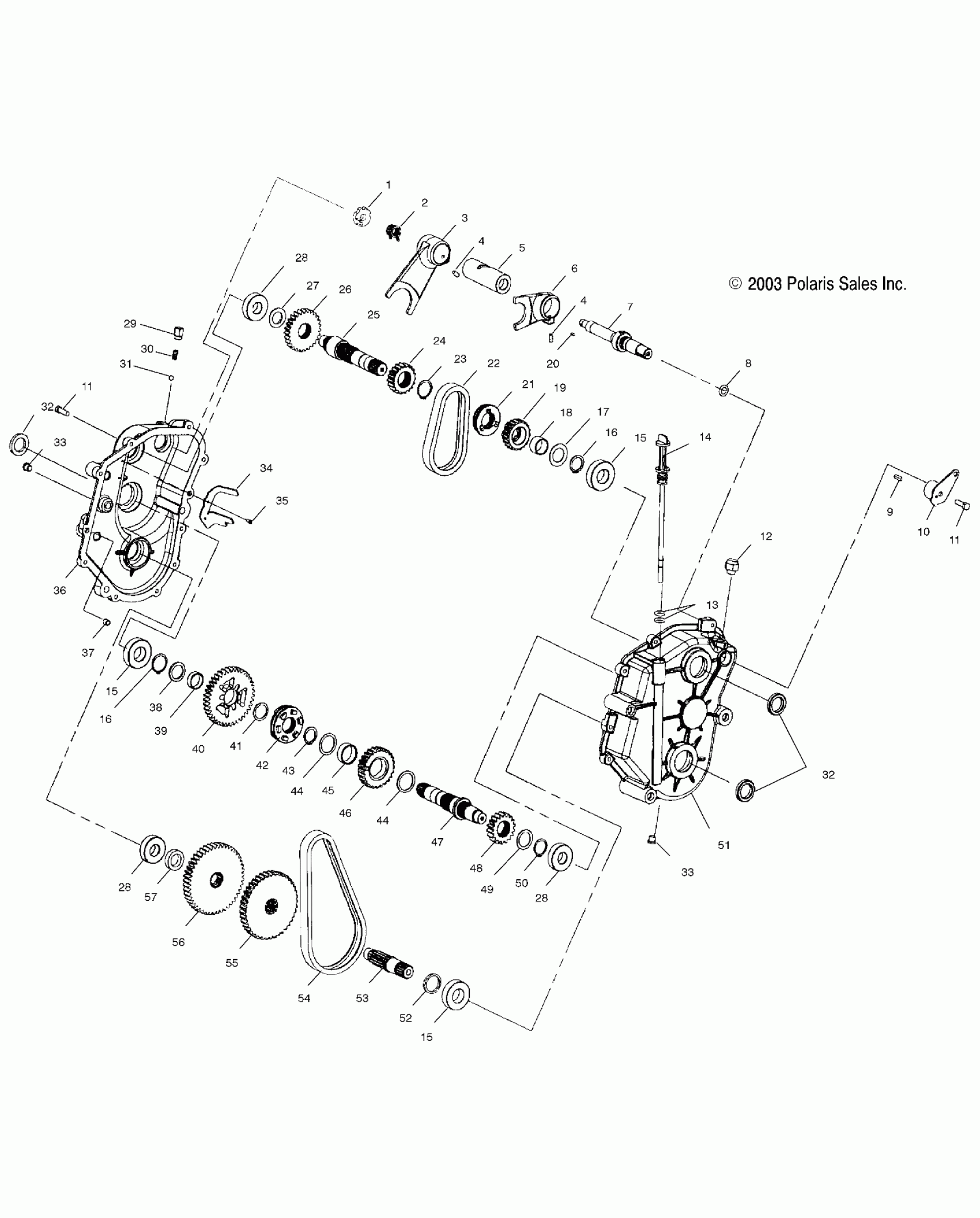

Polaris WIDETRAK LX - S04SU4BS GEARCASE - S04SU4BS/BE (4988698869B09) Diagram

#

Description
Price

-

Asm., Gearcase [Incl. All]

1341494

Unavailable

1

Index, Shift

3234170

$61.99

2

Spring, Torsion

3234171

Unavailable

3

Drum, Shift

3234172

$247.19

4

Pin, Dowel

3233375

$6.59

4

Pin, Dowel

3233375

$6.59

5

Drum, Shift

3233504

Unavailable

6

Fork, Shift , High

3233505

Unavailable

7

Shaft, Shift

3233403

$195.22

8

O-RING

5410440

$4.84

9

Key

3233414

$1.59

10

Bellcrank

3233393

$59.03

11

Screw

3233026

$6.46

11

Screw

3233026

$6.46

12

Switch

3233410

$27.99

13

O-RING

5410675

$1.60

14

Dipstick

5431419

Unavailable

15

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

15

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

15

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

16

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

16

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

17

Washer, Thrust

3233468

$16.79

18

Bearing, Needle

3233383

Unavailable

19

Sprocket, 19T NOTE: Must order with Ref. 21

3233509

$149.99

20

Key

3233415

Unavailable

21

Dog, Engagement, High NOTE: Must order with Ref. 19

3233470

$91.99

22

Chain, Silent [.75W 40P]

3233508

Unavailable

23

Ring, Retainer

3233424

Unavailable

24

Sprocket, 19T

3233507

$39.99

25

Input, Shaft

3233506

$227.52

26

GEAR, 27T

3233419

$119.99

27

Spacer

3233416

$5.75

28

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

28

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

28

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

29

Extension, Detent

3234173

Unavailable

30

Spring, Detent, Shifter

7041483

$40.46

31

BALL, DETENT

7080310

$5.99

32

SEAL, DUAL LIP

3610134

$49.99

32

SEAL, DUAL LIP

3610134

$49.99

33

PLUG

7052115

$5.65

33

PLUG

7052115

$5.65

34

Deflector, Oil

3233406

Unavailable

35

Screw

3233033

Unavailable

36

Gearcase, RH

3234175

$217.99

37

PIPE, KNOCK

3233021

Unavailable

38

WASHER

3233099

Unavailable

39

BEARING, NEEDLE

3233103

$31.99

40

GEAR, 39T

3233511

$134.99

41

Washer

3233105

$7.19

42

DOG, ENGAGEMENT, L/R

3233512

$109.99

43

Ring, Retaining

3233377

$3.19

44

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

44

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

45

BEARING, NEEDLE

3233384

$31.99

46

Sprocket, 25T

3233513

$79.99

47

SHAFT, REVERSE

3233514

$149.99

48

GEAR, 18T

3233515

Unavailable

49

Spacer

3233381

Unavailable

50

Ring, Retaining

3233516

$1.49

51

GEARCASE, LH

3234174

$364.99

52

Spacer

3233418

Unavailable

53

SHAFT, OUTPUT

3233521

$179.99

54

Chain, Silent [.75W 66P]

3233520

Unavailable

55

Sprocket, 41T, 15T Spline

3233519

$89.03

56

GEAR, 47T

3233518

$159.99

57

Spacer

3233517

Unavailable
