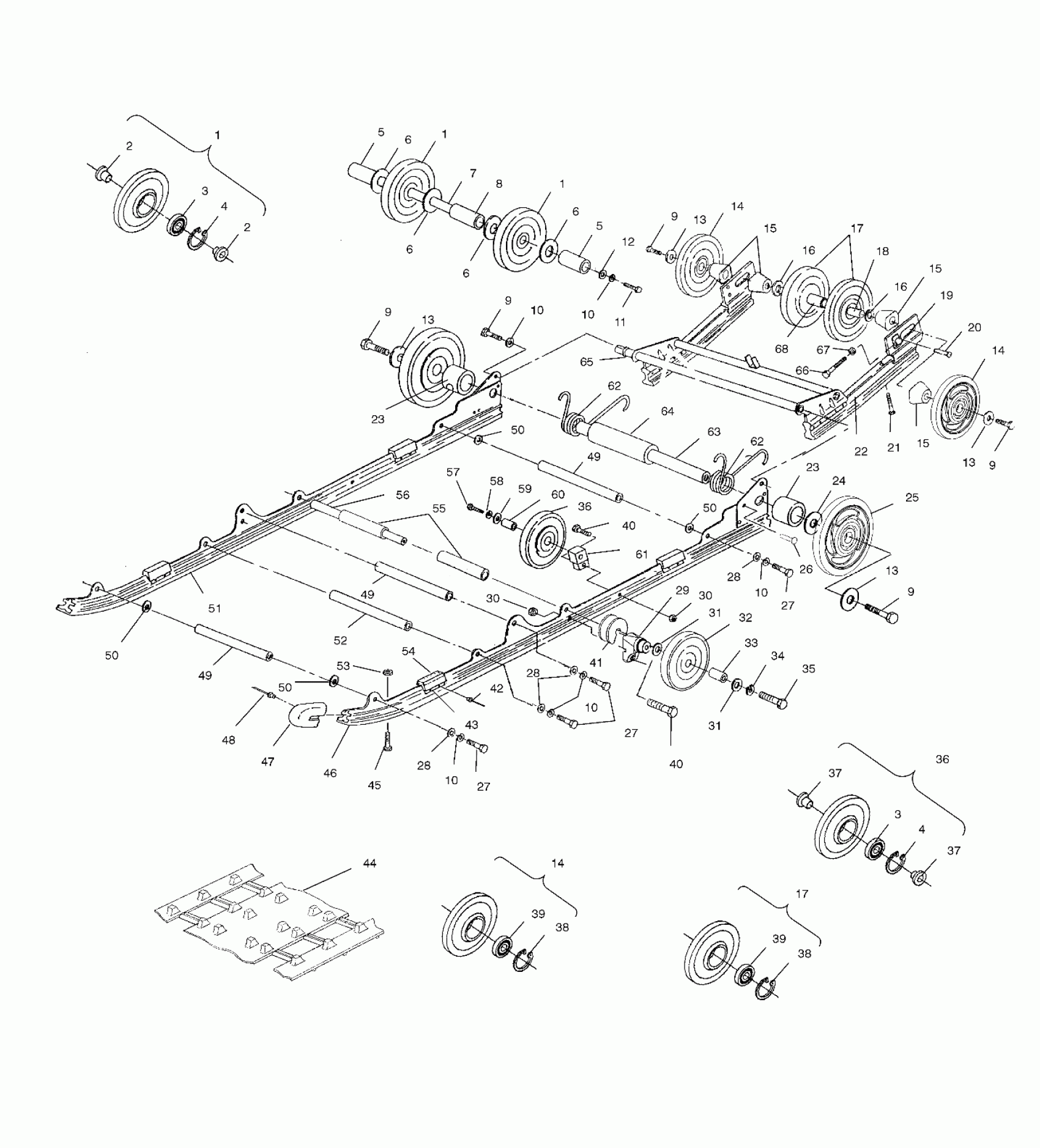

Polaris WIDETRAK LX - S02SU4BS SUSPENSION - S02SU4BS/BE (4968476847B05) Diagram

#

Description
Price

1

Asm., Wheel, Carrier (Incl. 2,3,4)

1543021

Unavailable

1

Asm., Wheel, Carrier (Incl. 2,3,4)

1543021

Unavailable

1

Asm., Wheel, Carrier (Incl. 2,3,4)

1543021

Unavailable

2

Insert, Wheel

5430723

$3.99

2

Insert, Wheel

5430723

$3.99

3

BEARING (1 per Wheel)

3514303

$11.99

3

BEARING (1 per Wheel)

3514303

$11.99

4

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

4

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

5

SPACER

5333019-067

$15.99

5

SPACER

5333019-067

$15.99

6

Washer, Flat

7555726

$1.59

6

Washer, Flat

7555726

$1.59

6

Washer, Flat

7555726

$1.59

6

Washer, Flat

7555726

$1.59

7

Shaft, Mounting, Carrier

5020836

$32.37

8

SPACER

5333020-067

$24.99

9

BOLT

7517731

$1.49

9

BOLT

7517731

$1.49

9

BOLT

7517731

$1.49

9

BOLT

7517731

$1.49

9

BOLT

7517731

$1.49

10

Washer, Spring Lock

7552603

$1.49

10

Washer, Spring Lock

7552603

$1.49

10

Washer, Spring Lock

7552603

$1.49

10

Washer, Spring Lock

7552603

$1.49

10

Washer, Spring Lock

7552603

$1.49

11

Screw

7517435

$14.99

12

Washer, Flat

7555893

$1.49

13

WASHER, BELLE

7556130

$6.39

13

WASHER, BELLE

7556130

$6.39

13

WASHER, BELLE

7556130

$6.39

13

WASHER, BELLE

7556130

$6.39

14

Asm., Idler Wheel, Scrolled

1594083-312

Unavailable

14

Asm., Idler Wheel, Scrolled

1594083-312

Unavailable

14

Asm., Idler Wheel, Scrolled

1594083-312

Unavailable

15

SPACER-IDLER

5432535

$11.99

15

SPACER-IDLER

5432535

$11.99

15

SPACER-IDLER

5432535

$11.99

16

BUSHING

7555918

$1.59

16

BUSHING

7555918

$1.59

17

ASM., WHEEL

1594087

$72.84

17

ASM., WHEEL

1594087

$72.84

18

SHAFT, IDLER

5020879

$43.99

19

BLOCK, IDLER BOLT ADJUST

5130530

$32.37

20

RIVET

7621501

$2.39

21

Screw

7512225

$3.99

22

HI-FAX, WHITE

5521452

$40.46

22

Asm., Rail, Swing Arm, Riveted (Incl. 19,20)

1541133

Unavailable

23

Spacer

5330171-067

$16.99

23

Spacer

5330171-067

$16.99

24

Bushing

7556301

$3.19

25

Asm., Idler Wheel, Scrolled (US)

1590276-312

Unavailable

25

Asm., Idler Wheel, Scrolled (Euro)

1590276-246

Unavailable

26

Rivet

7621508

Unavailable

27

Screw

7517247

$3.19

27

Screw

7517247

$3.19

27

Screw

7517247

$3.19

28

Washer, Flat

7555806

$1.49

28

Washer, Flat

7555806

$1.49

28

Washer, Flat

7555806

$1.49

29

SPACER, BOGIE WHEEL

5630399

$11.99

30

Nut, Nylok

7542439

$1.49

30

Nut, Nylok

7542439

$1.49

31

WASHER, FLAT

7555852

$2.39

31

WASHER, FLAT

7555852

$2.39

32

Asm., Bogie Wheel

1594082-312

Unavailable

33

Spacer

5333116

$7.99

34

Washer, Spring Lock

7553101

$3.99

35

Bolt

7512538

$6.39

36

Asm., Wheel w/Insert (Incl. 3,4,37)

1543018

$56.65

36

Asm., Wheel w/Insert (Incl. 3,4,37)

1543018

$56.65

37

Insert, Wheel (2 per Wheel)

5431531

$9.70

37

Insert, Wheel (2 per Wheel)

5431531

$9.70

38

RING-RETAINING

7710444

$8.79

38

RING-RETAINING

7710444

$8.79

39

Bearing

3514012

Unavailable

39

Bearing

3514012

Unavailable

40

Bolt

7512404

$3.99

40

Bolt

7512404

$3.99

41

ROLLER, SPRING

5431366

$10.51

42

RIVET-3/16 (.626-.750) Q-AL-ST

7621476

$1.49

43

Angle, Bumper Reinforcement

5222629

$13.75

44

Clip, Slide

5222839

Unavailable

44

CLIP, GUIDE

5222840

Unavailable

44

Track

5411682

Unavailable

45

SCREW

7512227

$3.19

46

HI-FAX, WHITE

5521452

$40.46

46

Asm., Rail, LH (Incl. 43,47,54)

1540751

$419.99

47

COVER, RAIL TIP

5430627

$32.37

48

RIVET

7621435

$1.49

49

SHAFT, PIVOT

5132239

$74.99

49

SHAFT, PIVOT

5132239

$74.99

49

SHAFT, PIVOT

5132239

$74.99

50

WASHER, FLAT

7555823

$3.99

50

WASHER, FLAT

7555823

$3.99

50

WASHER, FLAT

7555823

$3.99

50

WASHER, FLAT

7555823

$3.99

51

HI-FAX, WHITE

5521452

$40.46

51

Asm., Rail, RH (Incl. 43,47,54)

1540752

$419.99

52

SHAFT, SPANNER

5020720

$34.99

53

Nut, Nylok

7542122

$1.49

54

BUMPER, SUSPENSION

5810554

$7.27

55

Spacer

5333138

$39.99

56

Shaft, Rear Shock

5020651

Unavailable

57

SCREW

7512659

$7.99

58

Washer, Split Lock

7553201

$3.99

59

WASHER

7555804

$3.99

60

SPACER

5332786

$7.99

61

BRACKET, BOGIE WHEEL

5130570

$48.56

62

SPRING, EXTENSION, REAR

7041231-067

$59.99

62

SPRING, EXTENSION, REAR

7041231-067

$59.99

63

Shaft, Idler

5020726

$39.99

64

Spacer

5333014-067

$39.99

65

SHAFT, PIVOT ARM

5020725

$34.99

66

SCREW

7515459

$5.59

67

NUT

7542404

$1.59

68

SPACER, IDLER

5333523

$11.99
