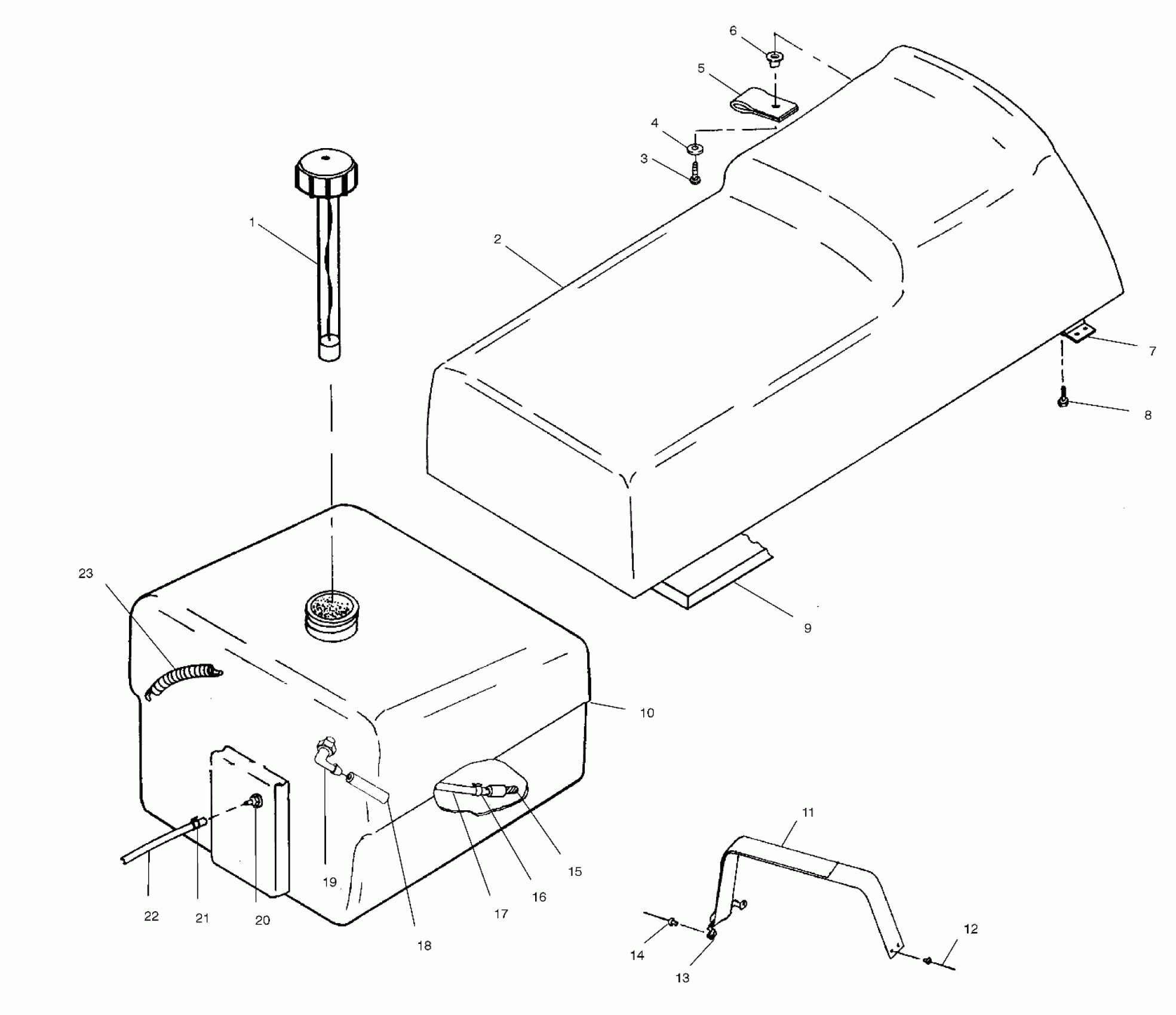

Polaris WIDETRAK LX - S02SU4BS SEAT and GAS TANK - S02SU4BS/BE (4968476847A04) Diagram

#

Description
Price

1

GASKET, GAS CAP

5810513

$8.89

1

CAP W/GAUGE, GAS

2511246

$44.51

2

Asm., Seat, 2-Up (Incl. 7)

2682780

Unavailable

2

Cover, Seat

2682781

Unavailable

3

Screw

7511989

Unavailable

4

Washer, Wrought

7558203

$3.19

5

Pull, Seat

5810464

$12.30

6

Nut, Tee

7541930

$2.06

7

Hinge, Flat (See Tunnel Pg. A3, Ref. 33)

-------

Unavailable

8

Screw

7511990

Unavailable

9

Pad, Bottom, Seat

5811339

$35.51

10

Tank, Fuel

5431143

Unavailable

11

Belt, Seat (Incl. 13)

2690086

Unavailable

12

RIVET

7621467

$1.49

13

Footman Loop (Supplied w/Strap)(See Ref. 11)

-------

Unavailable

14

RIVET-3/16-.090-.290

7661637

$1.49

15

PICK-UP W/FILTER, FUEL

7052243

Unavailable

16

RING, COMPRESSION

7080402

$1.60

17

Line, Fuel

8350019-1525

Unavailable

18

LINE, FUEL

8450061-600

Unavailable

19

Fitting, 90 Degree

7052095

$4.79

20

FITTING, OUTLET, DOUBLE

7052023

$24.99

21

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

22

Line, Fuel

8350018-600

Unavailable

23

SPRING, TANK FRONT

7042020

$13.75
