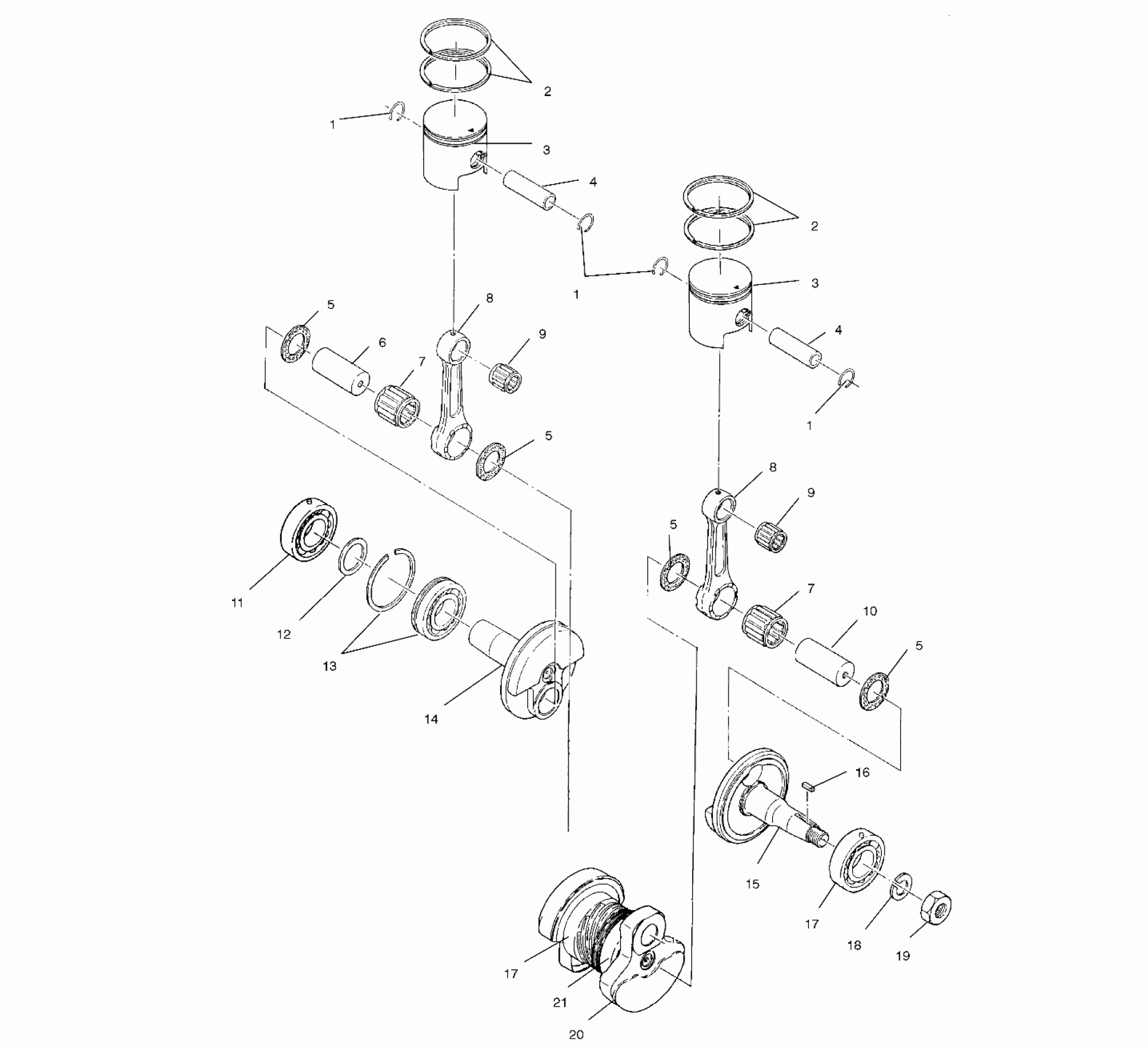

Polaris WIDETRAK LX - S02SU4BS PISTON and CRANKSHAFT - S02SU4BS/BE (4968476847C08) Diagram

#

Description
Price

1

Clip, Piston Pin

3083839

$4.75

1

Clip, Piston Pin

3083839

$4.75

1

Clip, Piston Pin

3083839

$4.75

2

Ring, Piston (Standard)

3084342

$47.60

2

Ring, Piston (0.25mm/.010"O/S)

3084343

Unavailable

2

Ring, Piston (0.50mm/.020"O/S)

3084344

$66.65

2

Ring, Piston (Standard)

3084342

$47.60

2

Ring, Piston (0.25mm/.010"O/S)

3084343

Unavailable

2

Ring, Piston (0.50mm/.020"O/S)

3084344

$66.65

3

Piston (Standard)

3085869

$147.60

3

Piston (0.25mm/.010"O/S)

3085870

Unavailable

3

Piston (0.50mm/.020"O/S)

3085871

Unavailable

3

Piston (Standard)

3085869

$147.60

3

Piston (0.25mm/.010"O/S)

3085870

Unavailable

3

Piston (0.50mm/.020"O/S)

3085871

Unavailable

4

PIN, PISTON

3083858

$23.99

4

PIN, PISTON

3083858

$23.99

5

SPACER, CRANK PIN

3083277

$15.99

5

SPACER, CRANK PIN

3083277

$15.99

5

SPACER, CRANK PIN

3083277

$15.99

5

SPACER, CRANK PIN

3083277

$15.99

6

CRANK PIN 2

3083456

Unavailable

7

Bearing, End, Large

3085628

$31.99

7

Bearing, End, Large

3085628

$31.99

8

Rod, Connecting

3083252

$164.99

8

Rod, Connecting

3083252

$164.99

9

BEARING, END, SMALL

3083216

$16.57

9

BEARING, END, SMALL

3083216

$16.57

10

Crank Pin 1

3083233

$36.41

11

Bearing, Ball

3085205

Unavailable

12

Spacer

3085203

$6.39

13

Bearing, Ball

3085204

Unavailable

14

Crankshaft (PTO Side)

3085202

Unavailable

15

Crankshaft (Mag Side)

3086835

$426.99

15

Asm., Crankshaft (Incl. 5-8,10-15,17,20)

3086997

Unavailable

16

Key

3080130

Unavailable

17

Bearing, Ball

3084601

$49.99

17

Bearing, Ball

3084601

$49.99

18

WASHER, SPRING

3083094

$3.17

19

NUT

3083093

$19.99

20

Crankshaft (Center)(Incl. 6,10)

3083713

$583.49

21

Bearing, Ball

3086878

Unavailable
