Description

Price

1

SENSOR W/CONNECTORS, OIL LEVEL

4040040

$72.84

2

Cap, Oil Tank

5430779

$14.56

3

Gasket, Oil Cap

5810141

$2.39

4

WASHER

7558302

$1.59

5

BOLT, LOCK

7512276

$4.79

6

Line, Fuel

8450003-1525

Unavailable

7

FILTER

2530009

$5.65

8

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

9

FITTING, OUTLET, SINGLE

7052042

$8.99

10

Screw

7517298

$4.79

11

RIVET-3/16-.090-.290

7661637

$1.49

11

RIVET-3/16-.090-.290

7661637

$1.49

11

RIVET-3/16-.090-.290

7661637

$1.49

12

BRACKET, OIL TANK, COINED

5241334

$9.70

13

BRACKET, SILENCER/REMOTE FILLER

5241792-067

$24.27

14

Nut, Well

7541923

$5.59

14

Nut, Well

7541923

$5.59

14

Nut, Well

7541923

$5.59

14

Nut, Well

7541923

$5.59

15

Decal, Fuel Shut-Off

7072151

Unavailable

16

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

16

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

16

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

16

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

17

Screw

7512279

$1.49

17

Screw

7512279

$1.49

18

Nut, Nylok

7542122

$1.49

19

Oil Tank w/Sending Unit Hole

5430997

Unavailable

20

NUT, CHIMNEY

7670096

$1.59

21

Fitting, 90 Degree

7052095

$4.79

22

LINE, VENT

8450061-600

Unavailable

23

Plate, Air, Silencer

5850075

$24.27

24

Cover, Silencer

5434015

$49.99

25

Decal, Cooling System

7075359

Unavailable

26

CLIP, ROSEBUD

4020139

$4.79

27

Screw

7512222

$2.39

27

Screw

7512222

$2.39

28

FOAM, AIR BOX

5811688

$54.99

29

DECAL, AIR BOX CAUTION

7075351

Unavailable

30

Decal, Adjustable Driven Clutch

7073820

Unavailable

31

Decal, Greasing

7073426

$7.27

32

Decal, Caution, Burn Hazard

7079177

Unavailable

33

Asm., Baffle (Incl. 23)

1253102

$64.75

34

CLIP, SILENCER

7670055

$7.99

35

BRACKET, INTAKE SILENCER

5211274

$9.70

36

Silencer, Intake

5432647

$214.51

37

BOOT, AIR SILENCER

5410403

$12.99

38

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

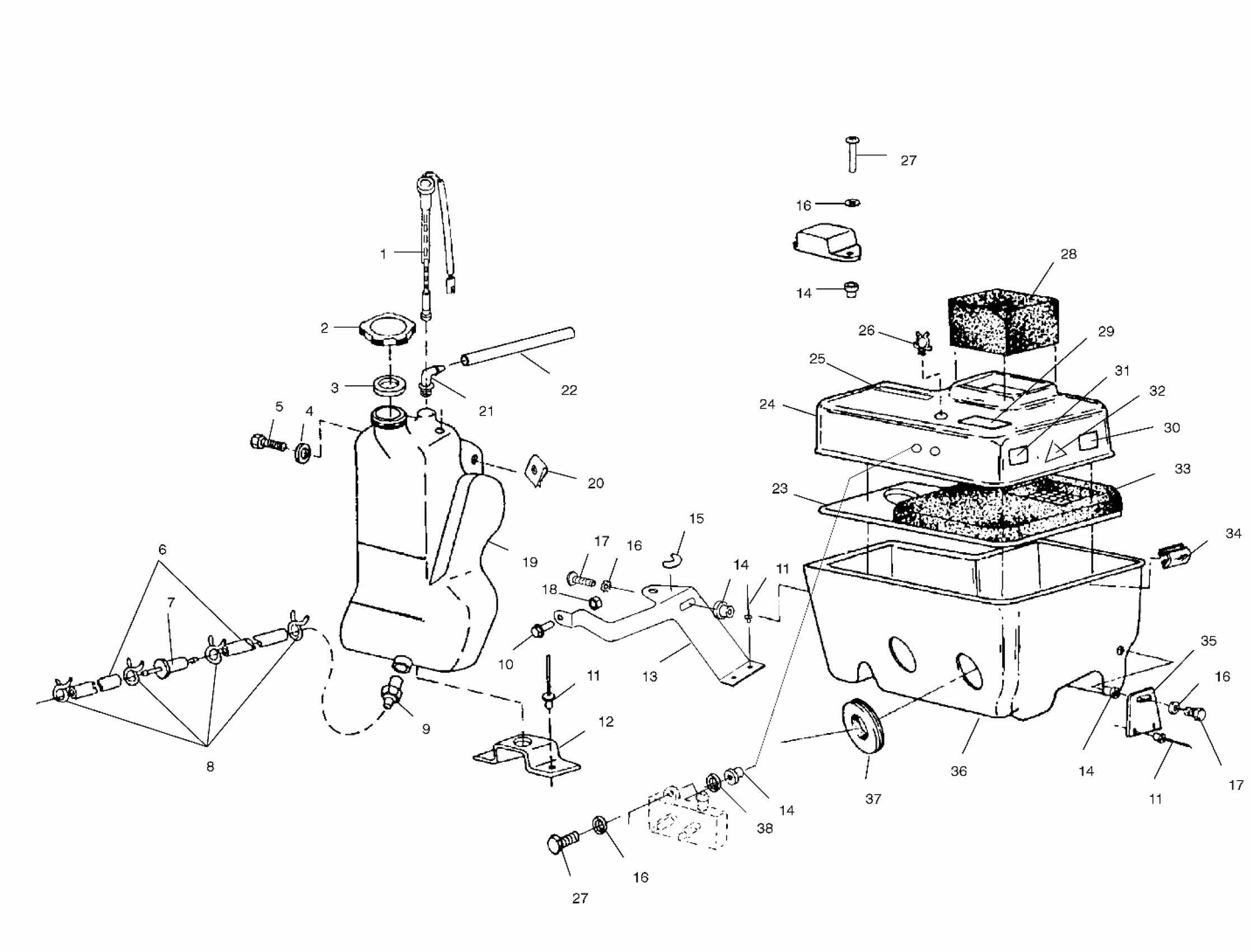

Polaris WIDETRAK LX - S02SU4BS OIL TANK/AIR BOX - S02SU4BS/BE (4968476847C02) Diagram

SENSOR W/CONNECTORS, OIL LEVEL

Cap, Oil Tank

Gasket, Oil Cap

WASHER

BOLT, LOCK

Line, Fuel

FILTER

CLAMP-HOSE, (LARGE GREEN)

FITTING, OUTLET, SINGLE

Screw

RIVET-3/16-.090-.290

RIVET-3/16-.090-.290

RIVET-3/16-.090-.290

BRACKET, OIL TANK, COINED

BRACKET, SILENCER/REMOTE FILLER

Nut, Well

Nut, Well

Nut, Well

Nut, Well

Decal, Fuel Shut-Off

WASHER-1/4X1/2X.025 EXT TTH-Y

WASHER-1/4X1/2X.025 EXT TTH-Y

WASHER-1/4X1/2X.025 EXT TTH-Y

WASHER-1/4X1/2X.025 EXT TTH-Y

Screw

Screw

Nut, Nylok

Oil Tank w/Sending Unit Hole

NUT, CHIMNEY

Fitting, 90 Degree

LINE, VENT

Plate, Air, Silencer

Cover, Silencer

Decal, Cooling System

CLIP, ROSEBUD

Screw

Screw

FOAM, AIR BOX

DECAL, AIR BOX CAUTION

Decal, Adjustable Driven Clutch

Decal, Greasing

Decal, Caution, Burn Hazard

Asm., Baffle (Incl. 23)

CLIP, SILENCER

BRACKET, INTAKE SILENCER

Silencer, Intake

BOOT, AIR SILENCER

WSHR-FL-.312X.734X.065-Y
