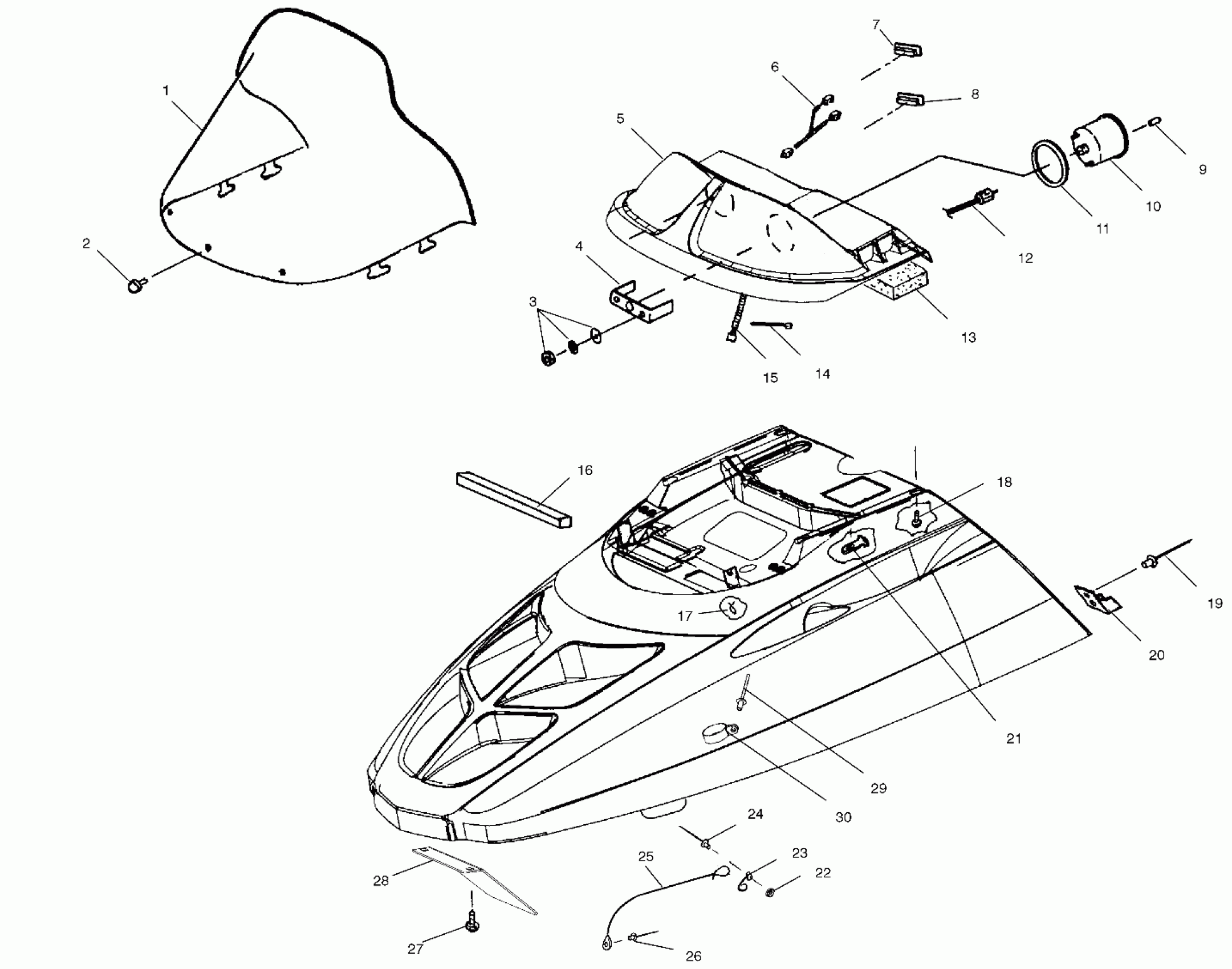

Polaris WIDETRAK LX - S02SU4BS HOOD - S02SU4BS/BE (4968476847A08) Diagram

#

Description
Price

1

Windshield, Flared, Clear, 20"

5433168

$159.99

2

RIVET

7621509

$1.49

3

Washer, Flat

3280157

$2.39

3

Nut

3280158

Unavailable

3

Washer, Lock

3280156

$1.49

4

Bracket, Speedo/Tach

3280210

$28.32

5

Housing, Instrument (Incl. Warning Decals)

2632238

Unavailable

6

Harness, Jumper, Temp/Rev

2460877

$24.19

7

Indicator, Temp Warning

4040011

$32.37

8

Indicator, Reverse

4040019

$28.32

9

Knob, Trip Meter

3280186

$9.70

10

Bulb, Replacement

4030015

$4.03

10

Asm., Speedometer, MPH (US)

3280304

Unavailable

10

Asm., Speedometer, KPH (Euro)

3280373

$214.39

11

Cushion, Rubber

3280209

$3.99

12

Cable, Speedometer

3280341

$60.70

13

FOAM, PRE-FILTER

5811625

$29.99

14

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

15

Foil, Connector, Wire Harness

5811765

$5.65

15

Harness, Headlight

2460909

$130.70

16

FOAM, SEAL, HEADLIGHT

5811687

$20.22

17

CLIP, ROSEBUD, GRAY

7080886

$4.79

18

Screw

7517441

$2.39

19

RIVET

7621334

$1.49

20

CUP, HOOD LATCH

5430733

$4.84

21

Retainer

5410970

$1.49

22

Washer

7555904

$1.49

23

CLIP, PIGTAIL

5242893

$6.65

24

RIVET

7661084

$1.49

25

Cable, Hood

7080764

$28.32

26

Rivet

7621402

$1.49

27

SCREW

7512068

$2.39

28

Deflector, Air

5243393

Unavailable

29

RIVET

7621485

$1.49

30

Clamp

7080833

Unavailable
