Description

Price

-

Asm., Gearcase (Incl. 1-58)

1341233

Unavailable

1

Index, Shift

3233402

$36.47

2

Spring, Torsion

3233474

$6.63

3

Fork, Shift, Low

3233503

$113.32

4

Pin, Dowel

3233375

$6.59

4

Pin, Dowel

3233375

$6.59

5

Drum, Shift

3233504

Unavailable

6

Fork, Shift , High

3233505

Unavailable

7

Shaft, Shift

3233403

$195.22

8

O-RING

5410440

$4.84

9

Key

3233414

$1.59

10

Bellcrank

3233393

$59.03

11

Screw

3233026

$6.46

11

Screw

3233026

$6.46

12

Switch

3233410

$27.99

13

O-RING

5410675

$1.60

14

Dipstick

5431419

Unavailable

15

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

15

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

15

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

16

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

16

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

17

Washer, Thrust

3233468

$16.79

18

Bearing, Needle

3233383

Unavailable

19

Sprocket, 19T NOTE: Must order with Ref. 21

3233509

$149.99

20

Key

3233415

Unavailable

21

Dog, Engagement, High NOTE: Must order with Ref. 19

3233470

$91.99

22

Chain, Silent (.75W 40P)

3233508

Unavailable

23

Ring, Retainer

3233424

Unavailable

24

Sprocket, 19T

3233507

$39.99

25

Input, Shaft

3233506

$227.52

26

GEAR, 27T

3233419

$119.99

27

Spacer

3233416

$5.75

28

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

28

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

28

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

29

Screw, Set

3233374

$1.49

30

Extension, Detent

3233405

$11.43

31

Spring, Detent, Shifter

7041483

$40.46

32

BALL, DETENT

7080310

$5.99

33

SEAL, DUAL LIP

3610134

$49.99

33

SEAL, DUAL LIP

3610134

$49.99

34

PLUG

7052115

$5.65

34

PLUG

7052115

$5.65

35

Deflector, Oil

3233406

Unavailable

36

Screw

3233033

Unavailable

37

Gearcase, RH

3233502

$217.99

38

PIPE, KNOCK

3233021

Unavailable

39

WASHER

3233099

Unavailable

40

BEARING, NEEDLE

3233103

$31.99

41

GEAR, 39T

3233511

$134.99

42

Washer

3233105

$7.19

43

DOG, ENGAGEMENT, L/R

3233512

$109.99

44

Ring, Retaining

3233377

$3.19

45

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

45

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

46

BEARING, NEEDLE

3233384

$31.99

47

Sprocket, 25T

3233513

$79.99

48

SHAFT, REVERSE

3233514

$149.99

49

GEAR, 18T

3233515

Unavailable

50

Spacer

3233381

Unavailable

51

Ring, Retaining

3233516

$1.49

52

Gearcase, LH

3233510

Unavailable

53

Spacer

3233418

Unavailable

54

SHAFT, OUTPUT

3233521

$179.99

55

Chain, Silent (.75W 66P)

3233520

Unavailable

56

Sprocket, 41T, 15T Spline

3233519

$89.03

57

GEAR, 47T

3233518

$159.99

58

Spacer

3233517

Unavailable

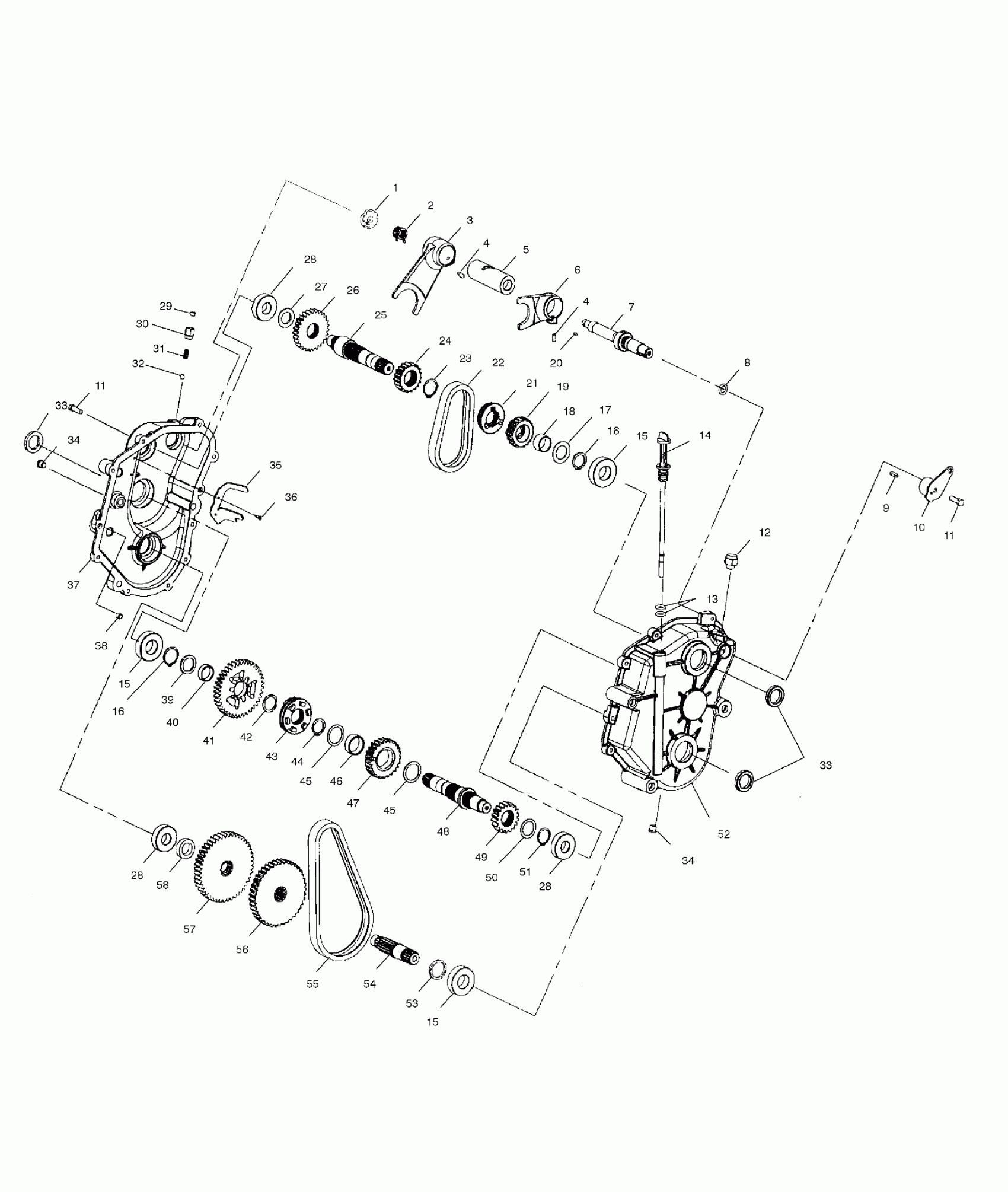

Polaris WIDETRAK LX - S02SU4BS GEARCASE - S02SU4BS/BE (4968476847B09) Diagram

Asm., Gearcase (Incl. 1-58)

Index, Shift

Spring, Torsion

Fork, Shift, Low

Pin, Dowel

Pin, Dowel

Drum, Shift

Fork, Shift , High

Shaft, Shift

O-RING

Key

Bellcrank

Screw

Screw

Switch

O-RING

Dipstick

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

RING,RETAINING BASIC,EXTERNAL 0.984

RING,RETAINING BASIC,EXTERNAL 0.984

Washer, Thrust

Bearing, Needle

Sprocket, 19T NOTE: Must order with Ref. 21

Key

Dog, Engagement, High NOTE: Must order with Ref. 19

Chain, Silent (.75W 40P)

Ring, Retainer

Sprocket, 19T

Input, Shaft

GEAR, 27T

Spacer

BEARING-BALL,6307 C3,35X80X21

BEARING-BALL,6307 C3,35X80X21

BEARING-BALL,6307 C3,35X80X21

Screw, Set

Extension, Detent

Spring, Detent, Shifter

BALL, DETENT

SEAL, DUAL LIP

SEAL, DUAL LIP

PLUG

PLUG

Deflector, Oil

Screw

Gearcase, RH

PIPE, KNOCK

WASHER

BEARING, NEEDLE

GEAR, 39T

Washer

DOG, ENGAGEMENT, L/R

Ring, Retaining

WASHER,THRUST,1.187 X 1.500 X .0600

WASHER,THRUST,1.187 X 1.500 X .0600

BEARING, NEEDLE

Sprocket, 25T

SHAFT, REVERSE

GEAR, 18T

Spacer

Ring, Retaining

Gearcase, LH

Spacer

SHAFT, OUTPUT

Chain, Silent (.75W 66P)

Sprocket, 41T, 15T Spline

GEAR, 47T

Spacer
